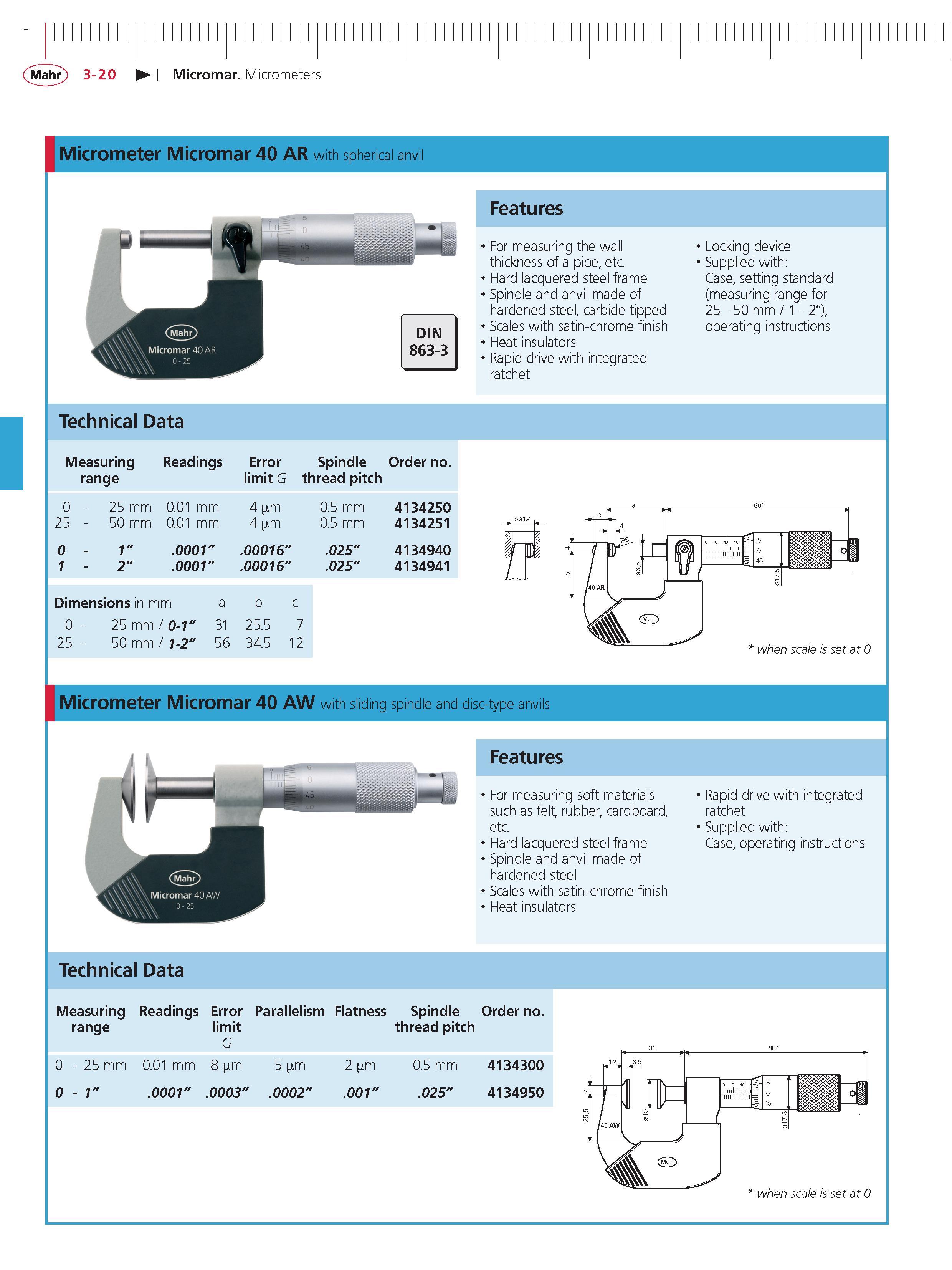

Mahr 3-20 Micromar Micrometers Micrometer Micromar 40 AR with spherical anvil Features r V Micromar 40 AR For measuring the wall thickness of a pipe etc. Hard lacquered steel frame Spindle and anvil made of hardened steel carbide tipped Scales with satin-chrome finish Heat insulators Rapid drive with integrated ratchet Locking device Supplied with Case setting standard (measuring range for 25 - 50 mm 1 - 2") operating instructions Technical Data Measuring Readings Error Spindle order no. range limit G thread pitch 0 - 25 mm 0.01 mm 4 m 0.5 mm 4134250 25 - 50 mm 0.01 mm 4 m 0.5 mm 4134251 0 - 1" .0001" .00016" .025" 4134940 1 - 2" .0001" .00016" .025" 4134941 Dimensions in mm a b c 0- 25 mm 0-1" 31 25.5 7 25 - 50 mm 1-2" 56 34.5 12 when scale is set at 0 Micrometer Micromar 40 Aw with sliding spindle and disc-type anvils Features For measuring soft materials such as felt rubber cardboard etc. Hard lacquered steel frame Spindle and anvil made of hardened steel Scales with satin-chrome finish Heat insulators Rapid drive with integrated ratchet Supplied with Case operating instructions Technical Data Measuring range Readings Error limit G Parallelism Flatness Spindle thread pitch order no. 0 - 25 mm 0.01 mm 8 m 5 m 2 m 0.5 mm 4134300 0 - 1" .0001" .0003" .0002" .001" .025" 4134950 012
