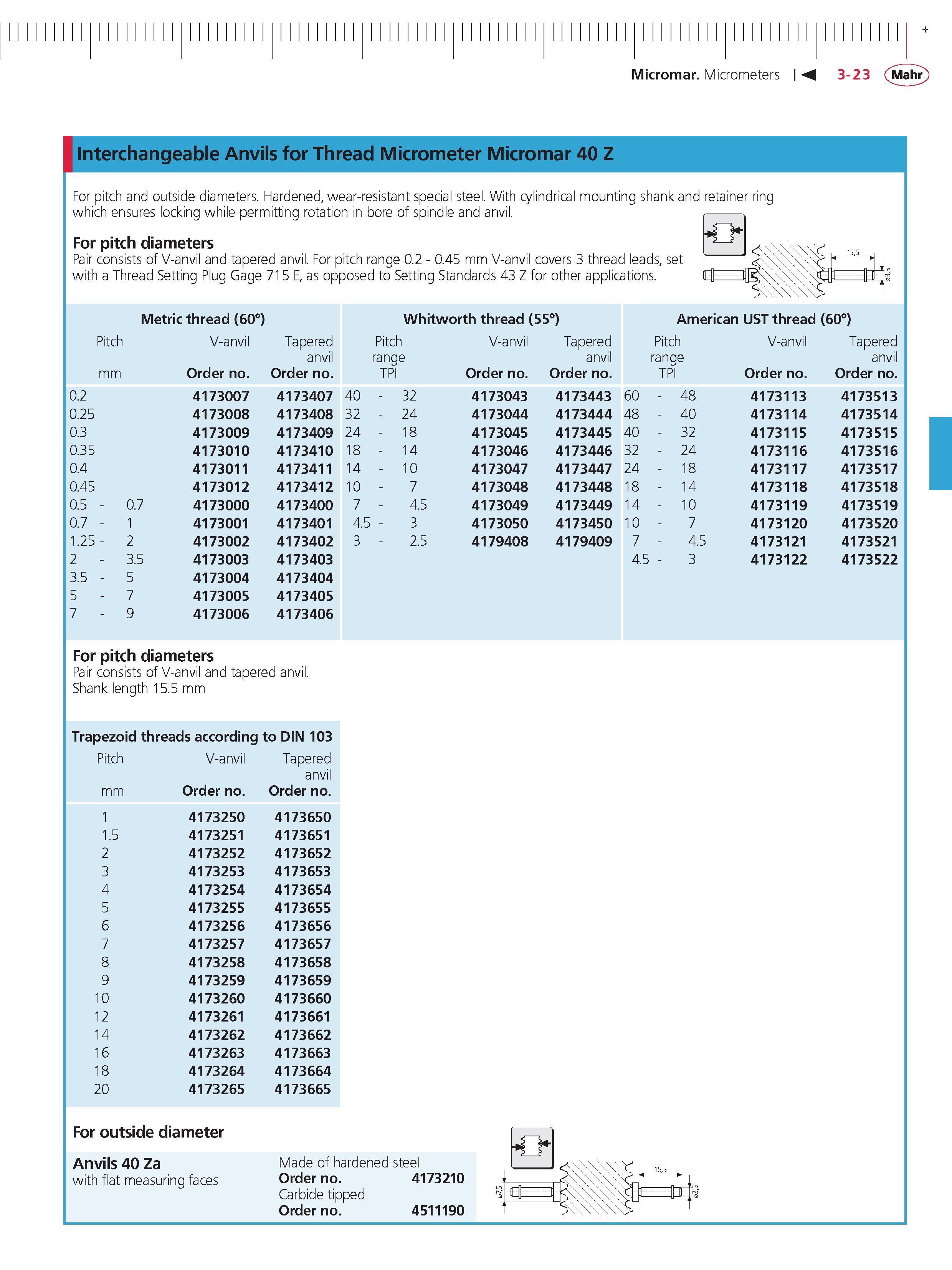

107 Каталог MAHR 2014 Измерительные инструменты и приборы для линейно-угловых измерений Стр.3-23

Каталог MAHR 2014 Измерительные инструменты и приборы Стр. 3-23 0107 ENG Lab2u

Micromar Micrometers M 3-23 Mahr + interchangeable Anvils for Thread Micrometer Micromar 40 Z For pitch and outside diameters. Hardened wear-resistant special steel. With cylindrical mounting shank and retainer ring which ensures locking while permitting rotation in bore of spindle and anvil. For pitch diameters Pair consists of V-anvil and tapered anvil. For pitch range 0.2 - 0.45 mm V-anvil covers 3 thread leads set with a Thread Setting Plug Gage 715 E as opposed to Setting Standards 43 Z for other applications. Metric thread (60) whitworth thread (55) American UST thread (60) Pitch V-anvil Tapered Pitch V-anvil Tapered Pitch V-anvil Tapered anvil range anvil range anvil mm order no. order no. TPI order no. order no. TPI order no. order no. 0.2 4173007 4173407 40 - 32 4173043 4173443 60 - 48 4173113 4173513 0.25 4173008 4173408 32 - 24 4173044 4173444 48 - 40 4173114 4173514 0.3 4173009 4173409 24 - 18 4173045 4173445 40 - 32 4173115 4173515 0.35 4173010 4173410 18 - 14 4173046 4173446 32 - 24 4173116 4173516 0.4 4173011 4173411 14 - 10 4173047 4173447 24 - 18 4173117 4173517 0.45 4173012 4173412 10 -7 4173048 4173448 18 - 14 4173118 4173518 0.5 - 0.7 4173000 4173400 7 - 4.5 4173049 4173449 14 - 10 4173119 4173519 0.7 - 1 4173001 4173401 4.5 -3 4173050 4173450 10 -7 4173120 4173520 1.25 - 2 4173002 4173402 3 - 2.5 4179408 4179409 7 - 4.5 4173121 4173521 2- 3.5 4173003 4173403 4.5 -3 4173122 4173522 3.5 - 5 4173004 4173404 5- 7 4173005 4173405 7- 9 4173006 4173406 For pitch diameters Pair consists of V-anvil and tapered anvil. Shank length 15.5 mm Trapezoid threads according to DIN 103 Pitch V-anvil Tapered anvil mm order no. order no. 1 4173250 4173650 1.5 4173251 4173651 2 4173252 4173652 3 4173253 4173653 4 4173254 4173654 5 4173255 4173655 6 4173256 4173656 7 4173257 4173657 8 4173258 4173658 9 4173259 4173659 10 4173260 4173660 12 4173261 4173661 14 4173262 4173662 16 4173263 4173663 18 4173264 4173664 20 4173265 4173665 For outside diameter Anvils 40 Za with flat measuring faces Made of hardened steel order no. 4173210 Carbide tipped order no. 4511190 d & 15.5
