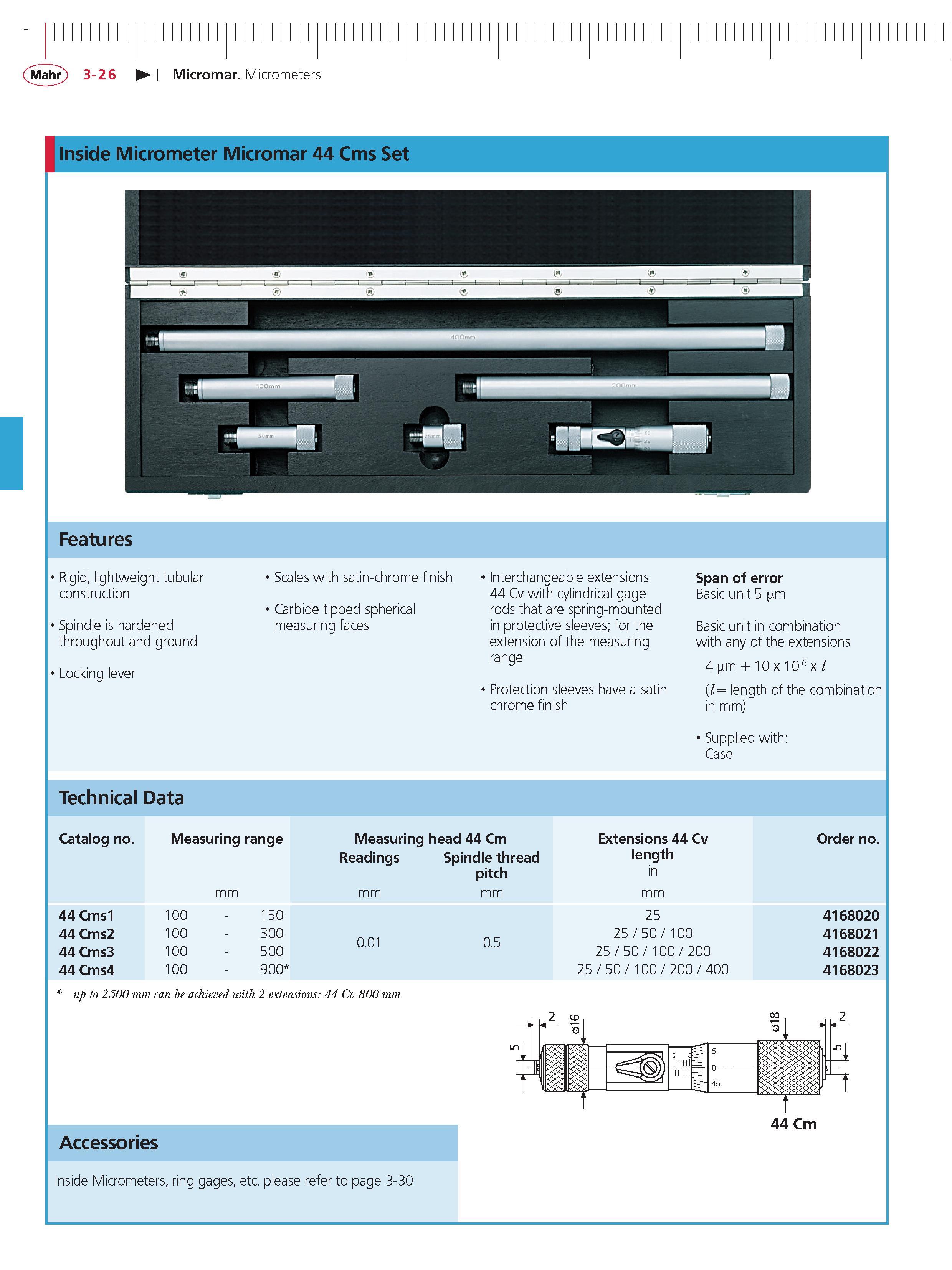

Mahr 3-26 Micromar Micrometers inside Micrometer Micromar 44 Cms Set Features Rigid lightweight tubular construction Spindle is hardened throughout and ground Locking lever Scales with satin-chrome finish Carbide tipped spherical measuring faces Interchangeable extensions 44 Cv with cylindrical gage rods that are spring-mounted in protective sleeves; for the extension of the measuring range Protection sleeves have a satin chrome finish Span of error Basic unit 5 m Basic unit in combination with any of the extensions 4 m + 10 x 10-6 x l (l length of the combination in mm) Supplied with Case Technical Data Catalog no. 44 Cms1 44 Cms2 44 Cms3 44 Cms4 up to 2500 mm can be achieved with 2 extensions 44 Cv 800 mm Measuring range Measuring head 44 Cm Extensions 44 Cv Readings Spindle thread pitch length in mm mm mm mm 100 - 150 25 100 - 300 0.01 0.5 25 50 100 100 - 500 25 50 100 200 100 - 900 25 50 100 200 400 order no. 4168020 4168021 4168022 4168023 Accessories Inside Micrometers ring gages etc. please refer to page 3-30
