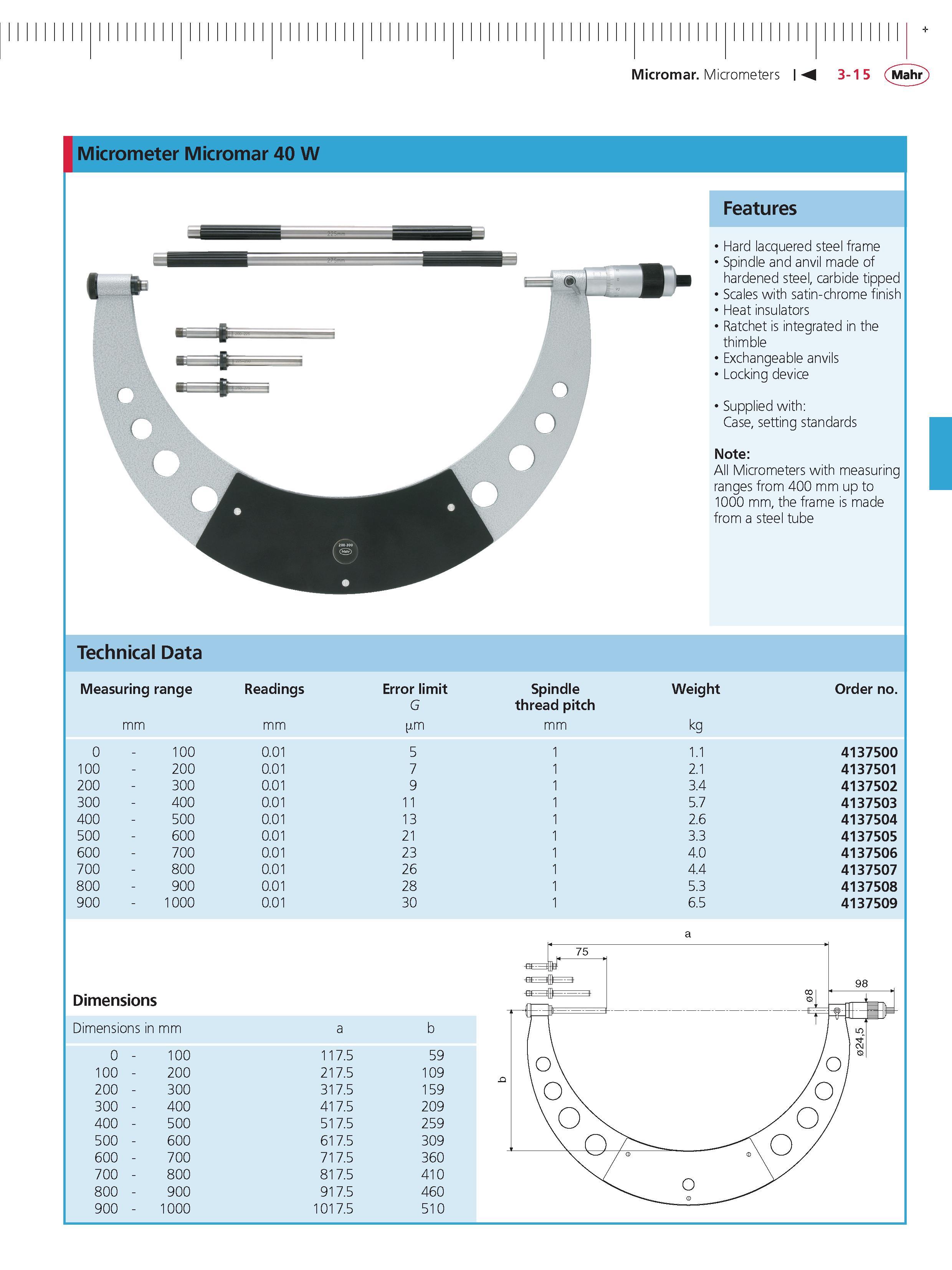

Micromar Micrometers M 3-15 Mahr Micrometer Micromar 40 W Features Hard lacquered steel frame Spindle and anvil made of hardened steel carbide tipped Scales with satin-chrome finish Heat insulators Ratchet is integrated in the thimble Exchangeable anvils Locking device Supplied with Case setting standards Note All Micrometers with measuring ranges from 400 mm up to 1000 mm the frame is made from a steel tube Technical Data Measuring range Readings Error limit Spindle weight order no. G thread pitch mm mm m mm kg 0- 100 0.01 5 1 1.1 4137500 100 200 0.01 7 1 2.1 4137501 200 - 300 0.01 9 1 3.4 4137502 300 - 400 0.01 11 1 5.7 4137503 400 - 500 0.01 13 1 2.6 4137504 500 - 600 0.01 21 1 3.3 4137505 600 - 700 0.01 23 1 4.0 4137506 700 - 800 0.01 26 1 4.4 4137507 800 - 900 0.01 28 1 5.3 4137508 900 - 1000 0.01 30 1 6.5 4137509 Dimensions Dimensions in mm a 0-100 117.5 100 - 200 217.5 200 - 300 317.5 300 - 400 417.5 400 - 500 517.5 500 - 600 617.5 600 - 700 717.5 700 - 800 817.5 800 - 900 917.5 900 - 1000 1017.5 b 59 109 159 209 259 309 360 410 460 510 a
