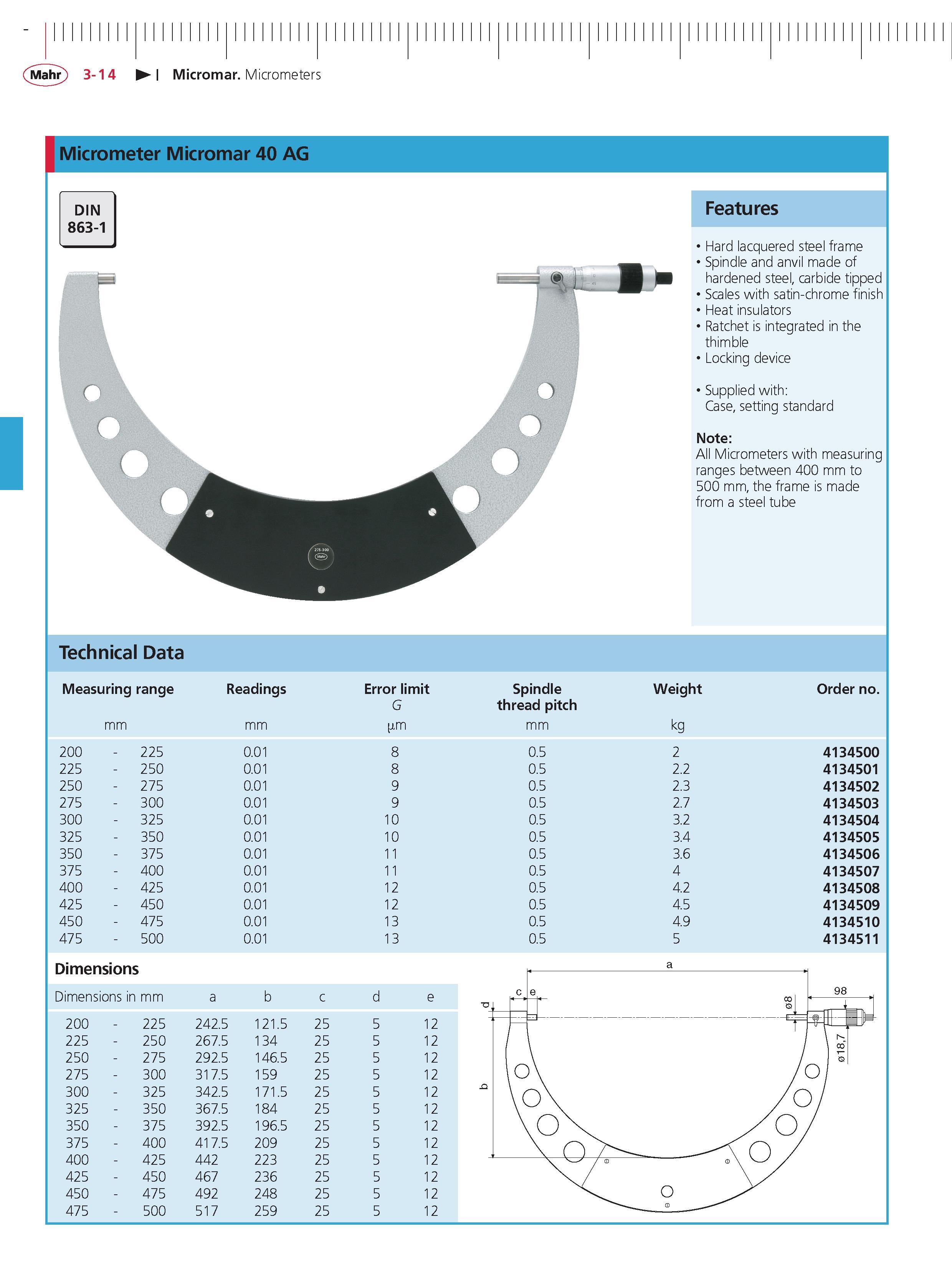

Mahr 3-14 Micromar Micrometers Micrometer Micromar 40 AG Features Hard lacquered steel frame Spindle and anvil made of hardened steel carbide tipped Scales with satin-chrome finish Heat insulators Ratchet is integrated in the thimble Locking device Supplied with Case setting standard Note All Micrometers with measuring ranges between 400 mm to 500 mm the frame is made from a steel tube Technical Data Measuring range Readings Error limit G mm mm m 200 - 225 0.01 8 225 - 250 0.01 8 250 - 275 0.01 9 275 - 300 0.01 9 300 - 325 0.01 10 325 - 350 0.01 10 350 - 375 0.01 11 375 - 400 0.01 11 400 - 425 0.01 12 425 - 450 0.01 12 450 - 475 0.01 13 475 - 500 0.01 13 Dimensions Dimensions in mm a b c d e 200 - 225 242.5 121.5 25 5 12 225 - 250 267.5 134 25 5 12 250 - 275 292.5 146.5 25 5 12 275 - 300 317.5 159 25 5 12 300 - 325 342.5 171.5 25 5 12 325 - 350 367.5 184 25 5 12 350 - 375 392.5 196.5 25 5 12 375 - 400 417.5 209 25 5 12 400 - 425 442 223 25 5 12 425 - 450 467 236 25 5 12 450 - 475 492 248 25 5 12 475 - 500 517 259 25 5 12 Spindle thread pitch mm 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 weight order no. kg 2 4134500 2.2 4134501 2.3 4134502 2.7 4134503 3.2 4134504 3.4 4134505 3.6 4134506 4 4134507 4.2 4134508 4.5 4134509 4.9 4134510 5 4134511 a 98 4
