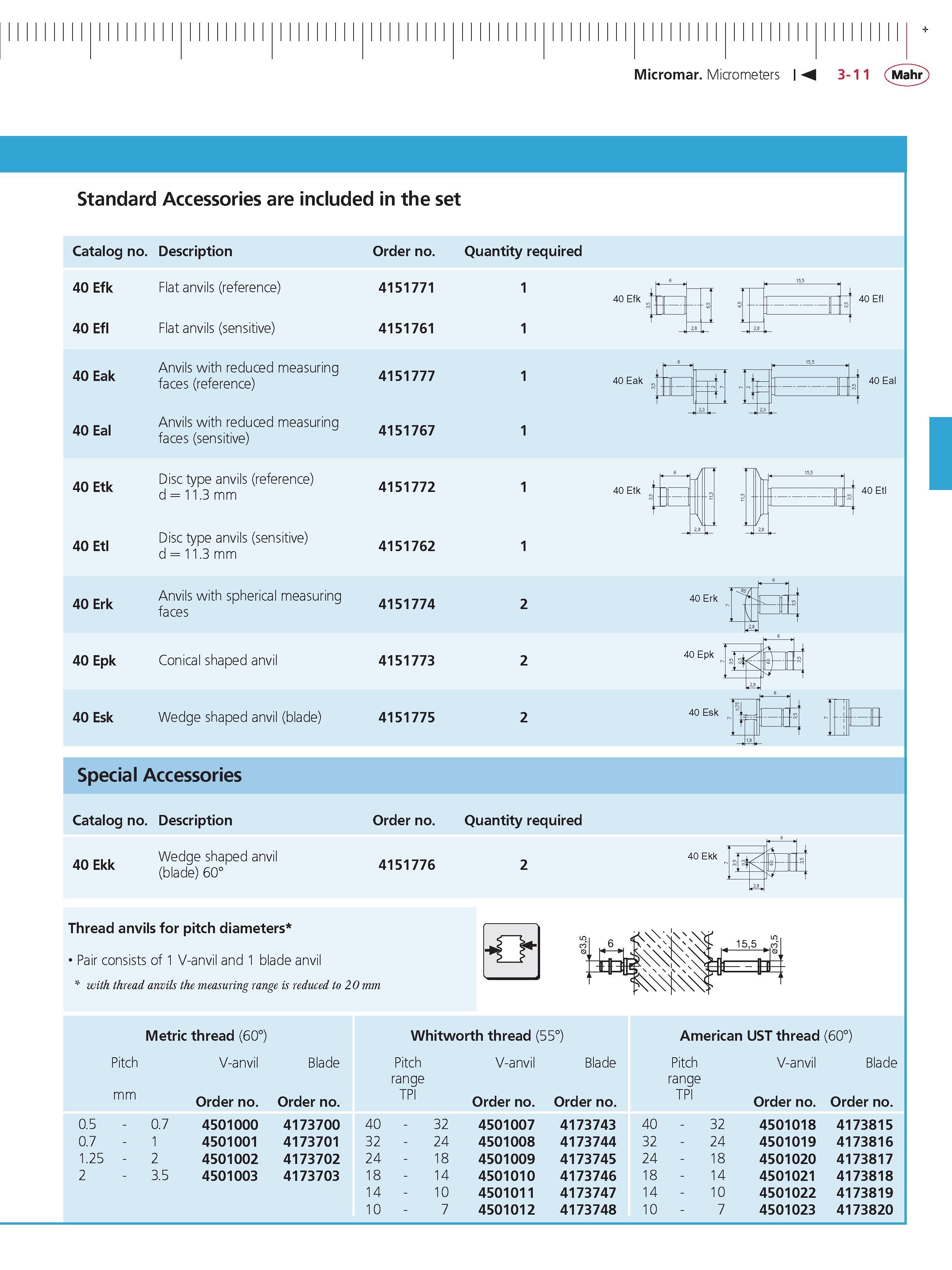

Micromar Micrometers 3-11 Mahr Standard Accessories are included in the set Catalog no. Description 40 Efk Flat anvils (reference) 40 eft Flat anvils (sensitive) 40 Eak 40 eal 40 etk 40 etl Anvils with reduced measuring faces (reference) Anvils with reduced measuring faces (sensitive) Disc type anvils (reference) d 11.3 mm Disc type anvils (sensitive) d 11.3 mm 40 erk Anvils with spherical measuring 40 epk 40 esk Conical shaped anvil Wedge shaped anvil (blade) Special Accessories Catalog no. Description 40 ekk Wedge shaped anvil (blade) 60 Thread anvils for pitch diameters Pair consists of 1 V-anvil and 1 blade anvil order no. Quantity required 4151771 1 4151761 4151777 4151767 4151772 4151762 4151774 4151773 4151775 1 order no. Quantity required 4151776 2 40 Efk 40 Erk 40 Epk J55 c ' 40 Efl ia i with thread anvils the measuring range is reduced to 20 mm TK % W Metric thread (60) whitworth thread (55) American UST thread (60) Pitch V-anvil Blade Pitch range V-anvil Blade Pitch range V-anvil Blade mm order no. order no. TPI order no. order no. TPI order no. order no. 0.5 - 0.7 4501000 4173700 40 - 32 4501007 4173743 40 - 32 4501018 4173815 0.7 - 1 4501001 4173701 32 - 24 4501008 4173744 32 - 24 4501019 4173816 1.25 - 2 4501002 4173702 24 - 18 4501009 4173745 24 - 18 4501020 4173817 2 - 3.5 4501003 4173703 18 - 14 4501010 4173746 18 - 14 4501021 4173818 14 - 10 4501011 4173747 14 - 10 4501022 4173819 10 - 7 4501012 4173748 10 - 7 4501023 4173820 + 28 1 40 Eak 40 Eal 23 23 1 1 40 Etk 40 Etl 1 2 2 40 Esk 2 40 Ekk
