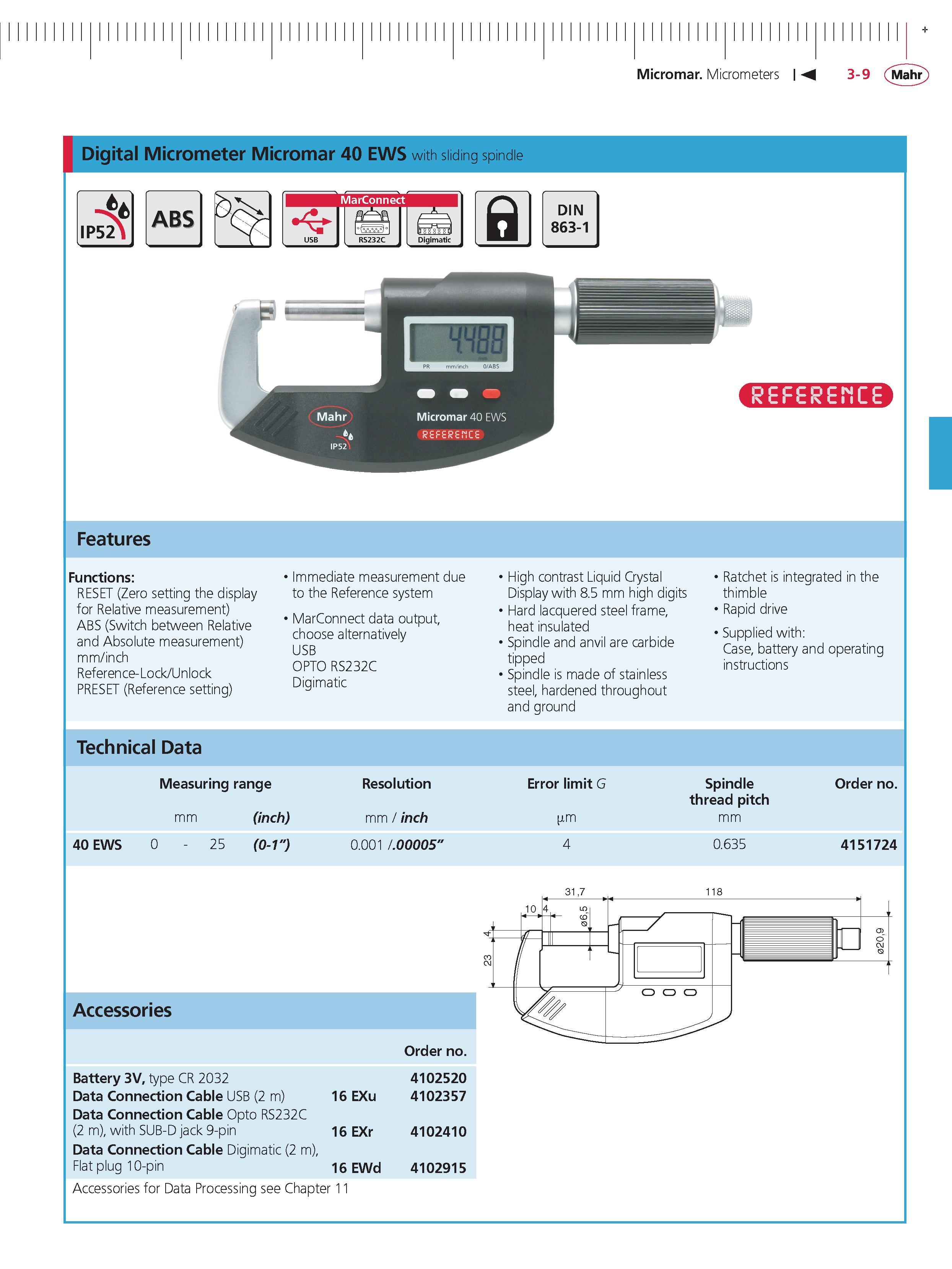

Micromar Micrometers M 3-9 Mahr Digital Micrometer Micromar 40 EWS with sliding spindle IP52 ABS MarConnect Digimatic a DIN 863-1 Features Functions RESET (Zero setting the display for Relative measurement) ABS (Switch between Relative and Absolute measurement) mm inch Reference-Lock Unlock PRESET (Reference setting) Immediate measurement due to the Reference system MarConnect data output choose alternatively USB OPTO RS232C Digimatic High contrast Liquid Crystal Display with 8.5 mm high digits Hard lacquered steel frame heat insulated Spindle and anvil are carbide tipped Spindle is made of stainless steel hardened throughout and ground Ratchet is integrated in the thimble Rapid drive Supplied with Case battery and operating instructions Technical Data Measuring range (inch) mm 40 EwS 0 - 25 (0-1") Resolution mm inch 0.001 .00005" error limit G m 4 Spindle thread pitch mm 0.635 order no. 4151724 Accessories Battery 3v type CR 2032 Data Connection Cable USB (2 m) Data Connection Cable Opto RS232C (2 m) with SUB-D jack 9-pin Data Connection Cable Digimatic (2 m) Flat plug 10-pin Accessories for Data Processing see Chapter 11 order no. 4102520 16 EXu 4102357 16 eXr 4102410 16 ewd 4102915
