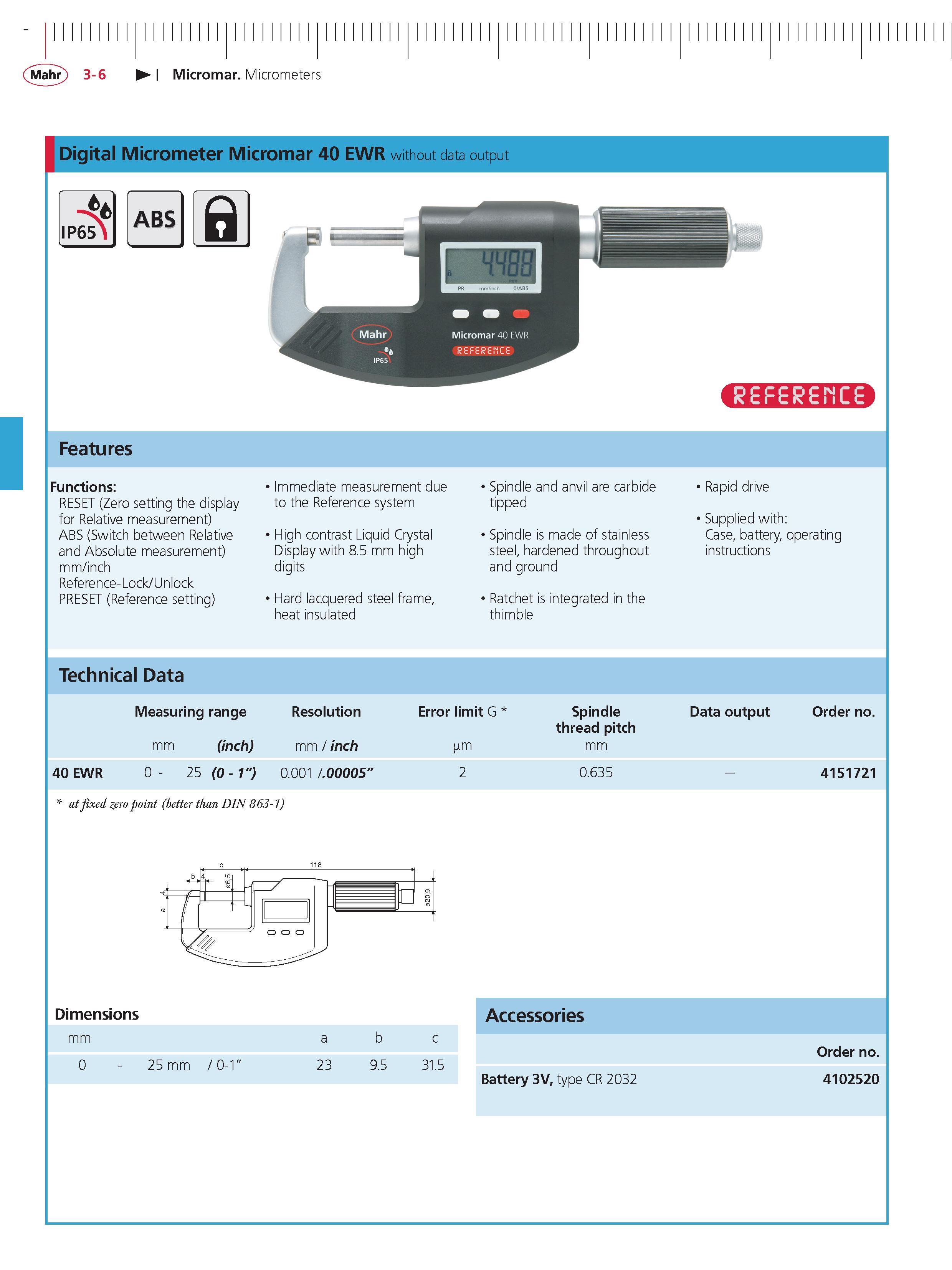

Mahr 3-6 Micromar Micrometers Digital Micrometer Micromar 40 EWR without data output IP65 ABS a Features Functions RESET (Zero setting the display for Relative measurement) ABS (Switch between Relative and Absolute measurement) mm inch Reference-Lock Unlock PRESET (Reference setting) Immediate measurement due to the Reference system High contrast Liquid Crystal Display with 8.5 mm high digits Hard lacquered steel frame heat insulated Spindle and anvil are carbide tipped Spindle is made of stainless steel hardened throughout and ground Ratchet is integrated in the thimble Rapid drive Supplied with Case battery operating instructions Technical Data Measuring range resolution mm (inch) mm inch 40 EwR 0 - 25 (0 -1") 0.001 .00005" at fixed zero point (better than DIN 863-1) Error limit G m 2 Spindle thread pitch mm 0.635 Data output order no. 4151721 Dimensions mm a b c 0 25 mm 0-1" 23 9.5 31.5
