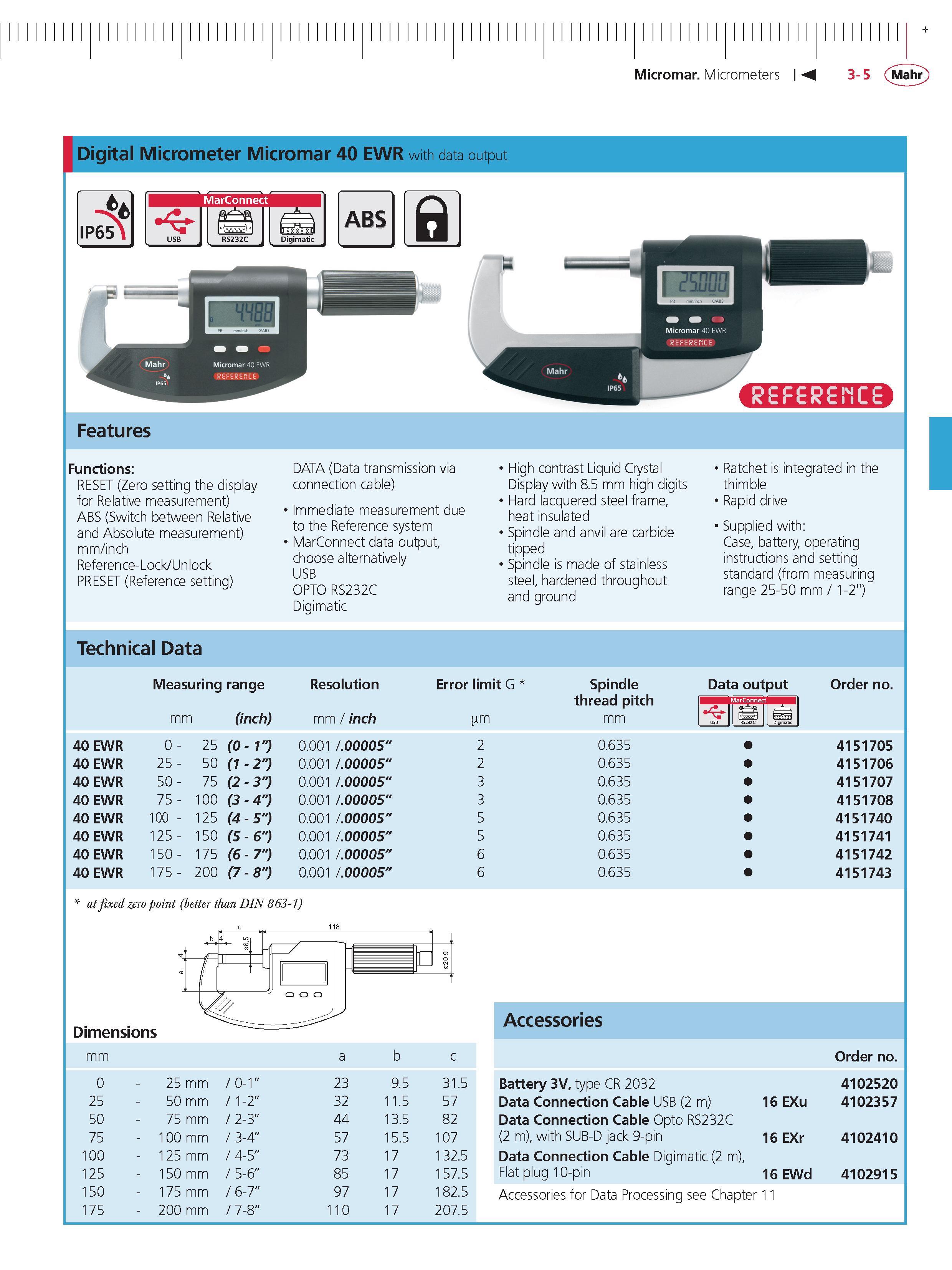

Micromar Micrometers M 3-5 Mahr + Digital Micrometer Micromar 40 EWR with data output Features Functions RESET (Zero setting the display for Relative measurement) ABS (Switch between Relative and Absolute measurement) mm inch Reference- Lock Unlock PRESET (Reference setting) DATA (Data transmission via connection cable) Immediate measurement due to the Reference system MarConnect data output choose alternatively USB OPTO RS232C Digimatic High contrast Liquid Crystal Display with 8.5 mm high digits Hard lacquered steel frame heat insulated Spindle and anvil are carbide tipped Spindle is made of stainless steel hardened throughout and ground Ratchet is integrated in the thimble Rapid drive Supplied with Case battery operating instructions and setting standard (from measuring range 25-50 mm 1-2") Technical Data Measuring range mm (inch) 40 EwR 40 EwR 40 EwR 40 EwR 40 EWR 40 EWR 40 EwR 40 EWR 025 -50 -75 -100 -125 -150 -175 - 25 50 75 100 125 150 175 200 (0 -(1 -(2 -(3 -(4 -(5 -(6 - 1") 2") 3") 4") 5") 6") 7") (7 - 8") at fixed zero point (better than DIN 863-1) Resolution mm inch 0.001 .00005" 0.001 .00005" 0.001 .00005" 0.001 .00005" 0.001 .00005" 0.001 .00005" 0.001 .00005" 0.001 .00005" Error limit G m 2 2 3 3 5 5 6 6 Spindle thread pitch mm Data output order no. Dimensions mm 0 - 25 mm 0-1" 23 9.5 31.5 25 - 50 mm 1-2" 32 11.5 57 50 - 75 mm 2-3" 44 13.5 82 75 - 100 mm 3-4" 57 15.5 107 100 - 125 mm 4-5" 73 17 132.5 125 - 150 mm 5-6" 85 17 157.5 150 - 175 mm 6-7" 97 17 182.5 175 - 200 mm 7-8" 110 17 207.5 0.635 4151705 0.635 4151706 0.635 4151707 0.635 4151708 0.635 4151740 0.635 4151741 0.635 4151742 0.635 4151743 Accessories order no. Battery 3v type CR 2032 4102520 Data Connection Cable USB (2 m) 16 EXu 4102357 Data Connection Cable Opto RS232C (2 m) with SUB-D jack 9-pin 16 EXr 4102410 Data Connection Cable Digimatic (2 m) Flat plug 10-pin 16 EWd 4102915 Accessories for Data Processing see Chapter 11 b a c
