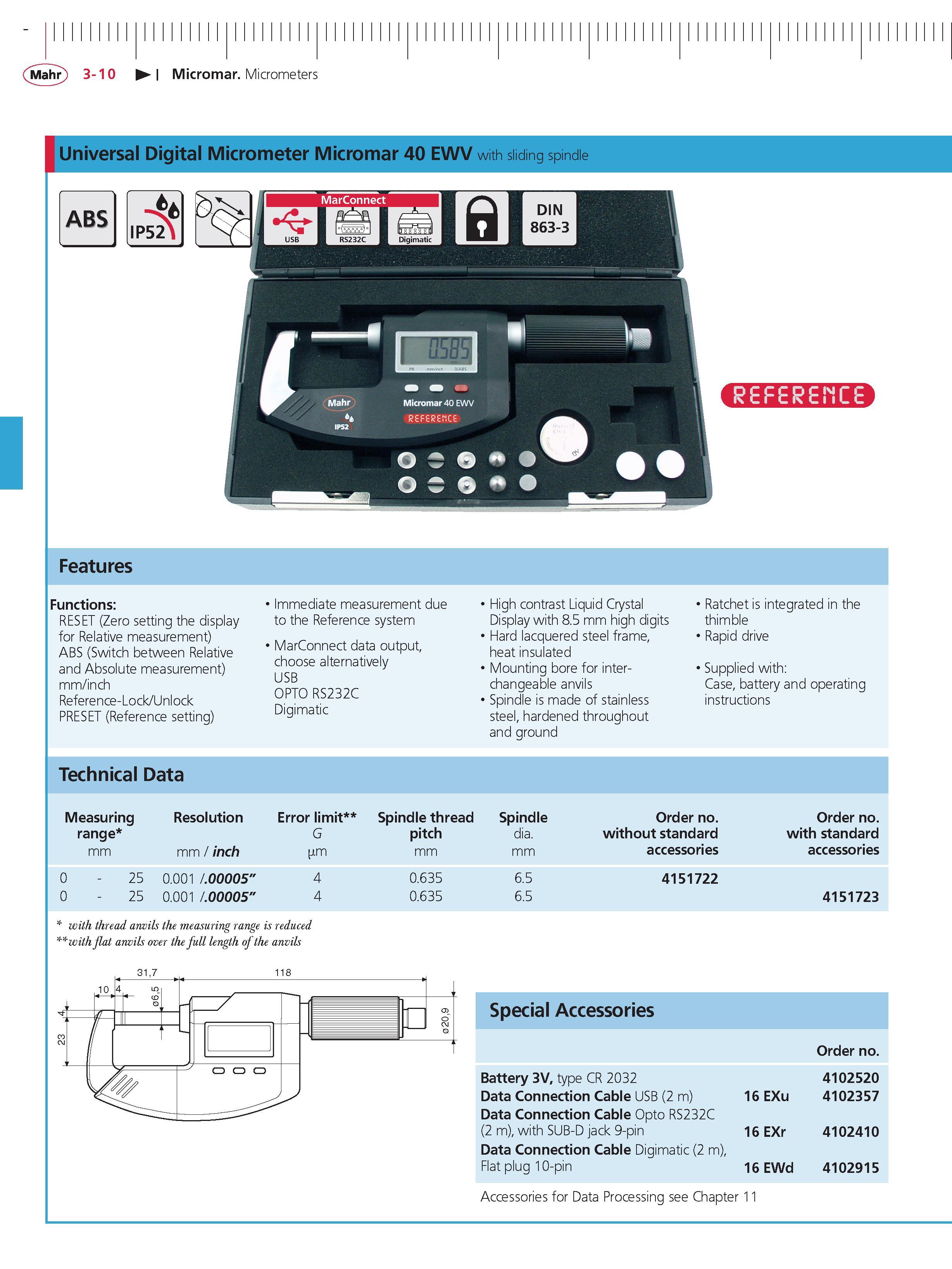

Mahr 3-10 Micromar Micrometers Features Functions RESET (Zero setting the display for Relative measurement) ABS (Switch between Relative and Absolute measurement) mm inch Reference-Lock Unlock PRESET (Reference setting) Immediate measurement due to the Reference system MarConnect data output choose alternatively USB OPTO RS232C Digimatic High contrast Liquid Crystal Display with 8.5 mm high digits Hard lacquered steel frame heat insulated Mounting bore for interchangeable anvils Spindle is made of stainless steel hardened throughout and ground Ratchet is integrated in the thimble Rapid drive Supplied with Case battery and operating instructions Technical Data Measuring Resolution Error limit Spindle thread Spindle order no. order no. range G pitch dia. without standard with standard mm mm inch m mm mm accessories accessories 0 - 25 0.001 .00005" 4 0.635 6.5 4151722 0 - 25 0.001 .00005" 4 0.635 6.5 4151723 with thread anvils the measuring range is reduced with flat anvils over the full length of the anvils Special Accessories order no. Battery 3v type CR 2032 4102520 Data Connection Cable USB (2 m) 16 EXu 4102357 Data Connection Cable Opto RS232C (2 m) with SUB-D jack 9-pin 16 eXr 4102410 Data Connection Cable Digimatic (2 m) Flat plug 10-pin 16 ewd 4102915 Accessories for Data Processing see Chapter 11
