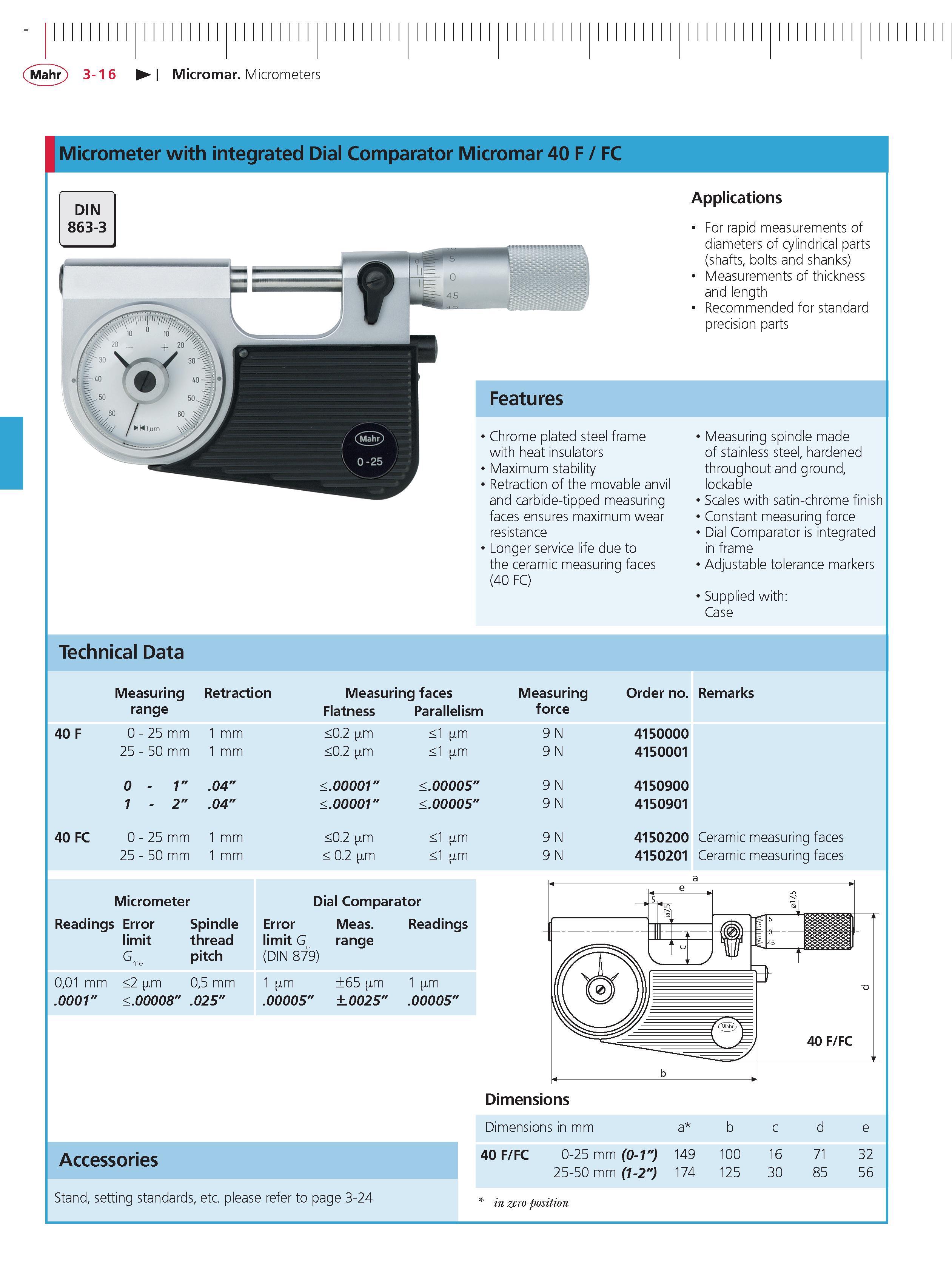

Mahr 3-16 Micromar Micrometers Micrometer with integrated Dial Comparator Micromar 40 F FC Applications For rapid measurements of diameters of cylindrical parts (shafts bolts and shanks) Measurements of thickness and length Recommended for standard precision parts Features Chrome plated steel frame with heat insulators Maximum stability Retraction of the movable anvil and carbide-tipped measuring faces ensures maximum wear resistance Longer service life due to the ceramic measuring faces (40 FC) Measuring spindle made of stainless steel hardened throughout and ground lockable Scales with satin-chrome finish Constant measuring force Dial Comparator is integrated in frame Adjustable tolerance markers Supplied with Case Technical Data Measuring Retraction Measuring faces Measuring order no. Remarks range Flatness Parallelism force 40 F 0 - 25 mm 1 mm 0.2 m 1 m 9 N 4150000 25 - 50 mm 1 mm 0.2 m 1 m 9 N 4150001 0 - 1" .04" .00001" .00005" 9 N 4150900 1 - 2" .04" .00001" .00005" 9 N 4150901 40 FC 0 - 25 mm 1 mm 0.2 m 1 m 9 N 4150200 Ceramic measuring faces 25 - 50 mm 1 mm 0.2 m 1 m 9 N 4150201 Ceramic measuring faces Micrometer Dial Comparator readings Error Spindle Error Meas. readings limit thread limit G range G me pitch (DIN 879) 001 mm 2 m 05 mm 1 m 65 m 1 m .0001" .00008" .025" .00005" .0025" .00005" Dimensions Accessories Stand setting standards etc. please refer to page 3-24 Dimensions in mm a b c d e 40 F FC 0-25 mm (0-1") 149 100 16 71 32 25-50 mm (1-2") 174 125 30 85 56 in zero position
