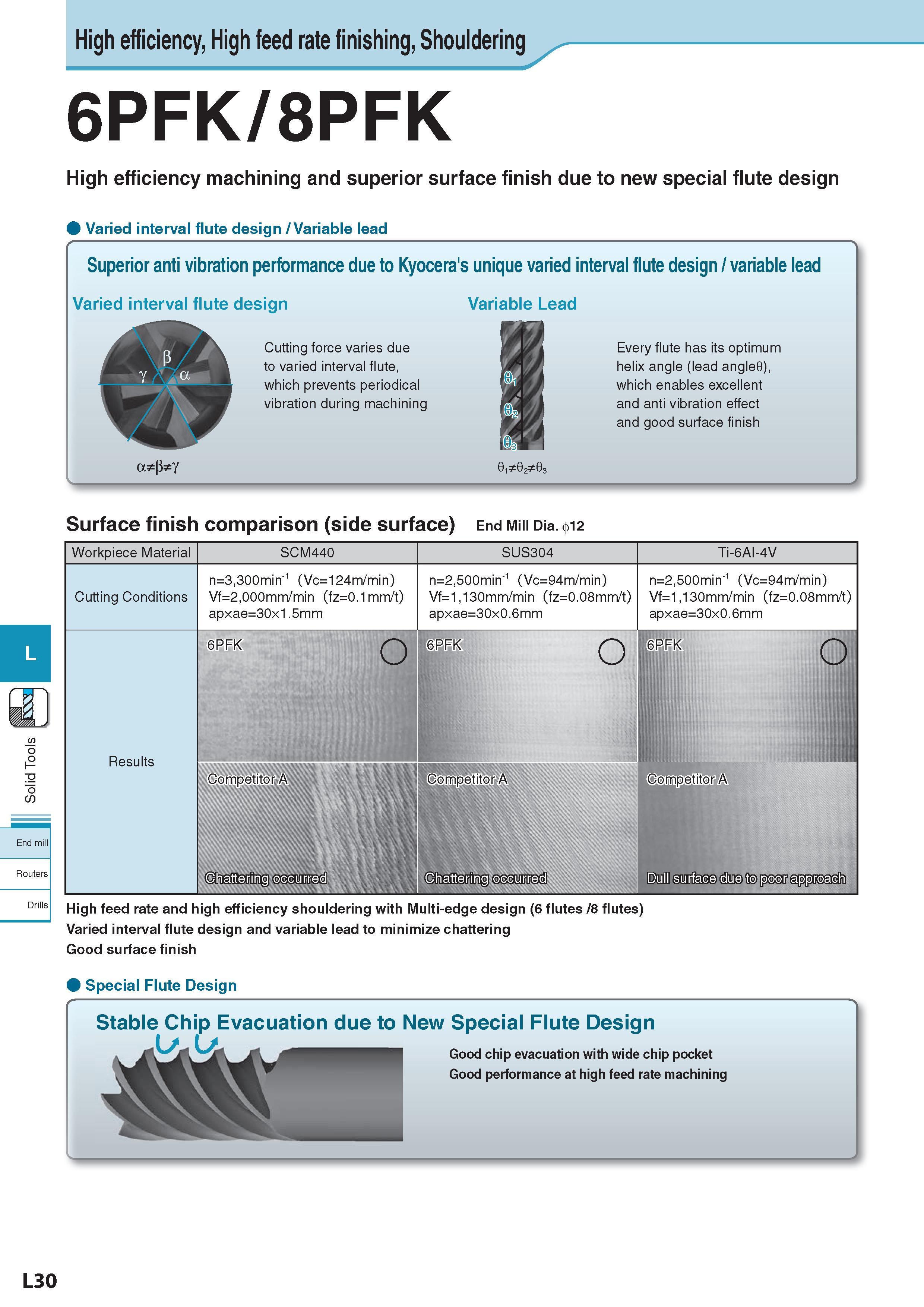

High efficiency, High feed rate finishing, Shouldering 6PFK/8PFK High efficiency machining and superior surface finish due to new special flute design Varied interval flute design / Variable lead Superior anti vibration performance due to Kyocera's unique varied interval flute design / variable lead Varied interval flute design Variable Lead A V t\ u Y a H J Cutting force varies due to varied interval flute, which prevents periodical vibration during machining 01 02 03 Every flute has its optimum helix angle (lead angle0), which enables excellent and anti vibration effect and good surface finish Surface finish comparison (side surface) End Mill Dia. 12 Workpiece Material Обрабатываемый материал SCM440 SUS304 Ti-6AI-4V Cutting Conditions n=3,300min"1 (Vc=124m/min) Vf=2,000mm/min (fz=0.1mm/t) apxae=30x1.5mm n=2,500min"1 (Vc=94m/min) Vf=1,130mm/min (fz=0.08mm/t) apxae=30x0.6mm n=2,500min"1 (Vc=94m/min) Vf=1,130mm/min (fz=0.08mm/t) apxae=30x0.6mm High feed rate and high efficiency shouldering with Multi-edge design (6 flutes /8 flutes) Varied interval flute design and variable lead to minimize chattering Good surface finish Special Flute Design Stable Chip Evacuation due to New Special Flute Design 1 ( ' Good chip evacuation with wide chip pocket Good performance at high feed rate machining L30
