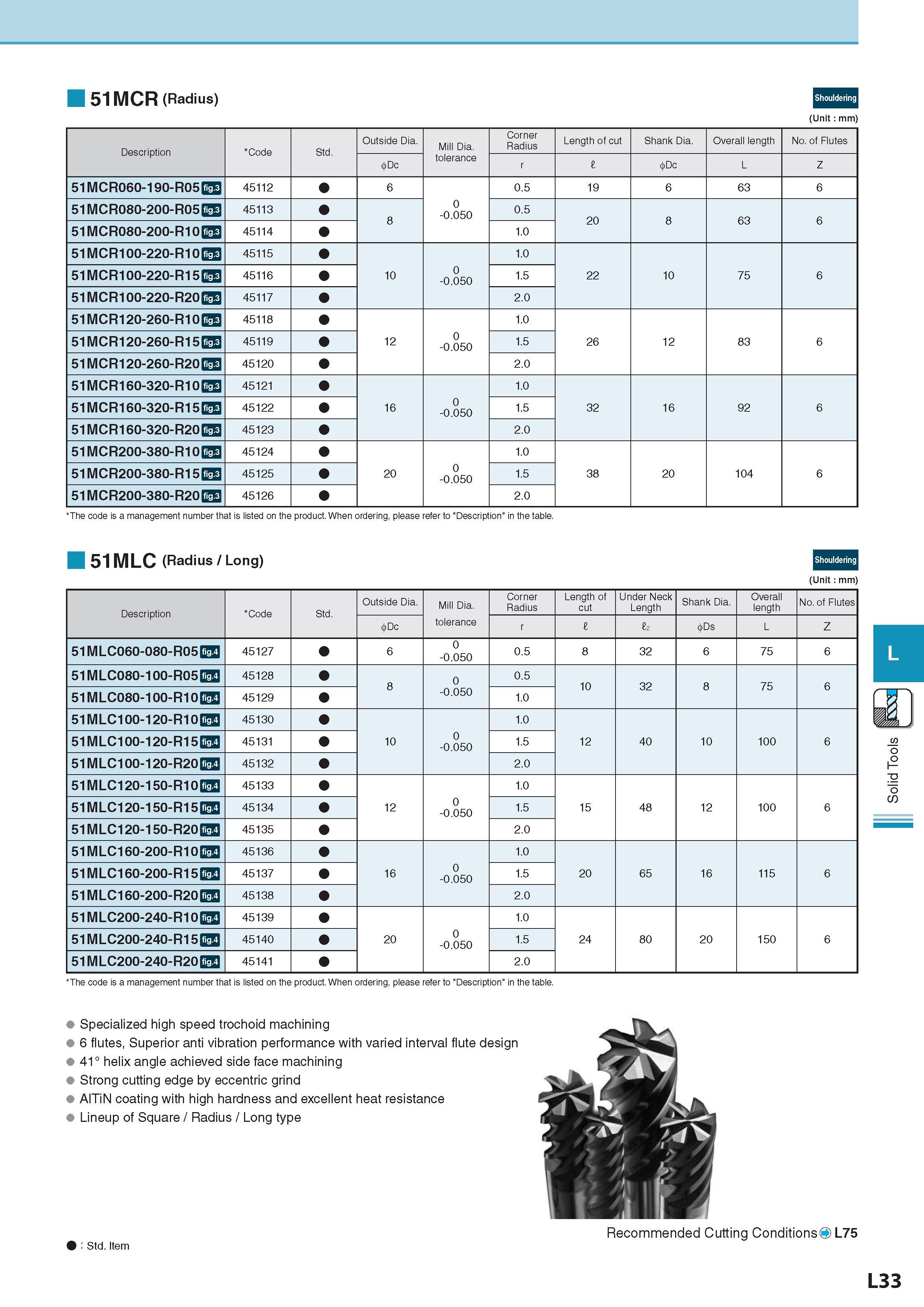

51MCR (Radius) Shouldering (Unit : mm) Description Обозначение Code Std. Outside Dia. Mill Dia. tolerance Corner Radius Length of cut Shank Dia. Overall length No. of Flutes Dc r I Dc L Z 51MCR060-190-R05 fig.3 45112 6 0 -0.050 0.5 19 6 63 6 51MCR080-200-R05 fig.3 45113 8 0.5 20 8 63 6 51MCR080-200-R10 fig.3 45114 1.0 51MCR100-220-R10 fig.3 45115 10 0 -0.050 1.0 22 10 75 6 51MCR100-220-R15 fig.3 45116 1.5 51MCR100-220-R20 fig.3 45117 2.0 51MCR120-260-R10 fig.3 45118 12 0 -0.050 1.0 26 12 83 6 51MCR120-260-R15 fig.3 45119 1.5 51MCR120-260-R20 fig.3 45120 2.0 51MCR160-320-R10 fig.3 45121 16 0 -0.050 1.0 32 16 92 6 51MCR160-320-R15 fig.3 45122 1.5 51MCR160-320-R20 fig.3 45123 2.0 51MCR200-380-R10 fig.3 45124 20 0 -0.050 1.0 38 20 104 6 51MCR200-380-R15 fig.3 45125 1.5 51MCR200-380-R20 fig.3 45126 2.0 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. 51MLC (Radius / Long) (Unit : mm) The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. Specialized high speed trochoid machining 6 flutes, Superior anti vibration performance with varied interval flute design 41° helix angle achieved side face machining Strong cutting edge by eccentric grind AlTiN coating with high hardness and excellent heat resistance Lineup of Square / Radius / Long type Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L75 9 : Std. Item Стандартная позиция Description Обозначение Code Std. Outside Dia. Mill Dia. tolerance Corner Radius Length of cut Under Neck Length Shank Dia. Overall length No. of Flutes Dc r I 12 Ds L Z 51MLC060-080-R05 fig.4 45127 6 0 -0.050 0.5 8 32 6 75 6 51MLC080-100-R05 fig.4 45128 8 0 -0.050 0.5 10 32 8 75 6 51MLC080-100-R10 fig.4 45129 1.0 51MLC100-120-R10 fig.4 45130 10 0 -0.050 1.0 12 40 10 100 6 51MLC100-120-R15 fig.4 45131 1.5 51MLC100-120-R20 fig.4 45132 2.0 51MLC120-150-R10 fig.4 45133 12 0 -0.050 1.0 15 48 12 100 6 51MLC120-150-R15 fig.4 45134 1.5 51MLC120-150-R20 fig.4 45135 2.0 51MLC160-200-R10 fig.4 45136 16 0 -0.050 1.0 20 65 16 115 6 51MLC160-200-R15 fig.4 45137 1.5 51MLC160-200-R20 fig.4 45138 2.0 51MLC200-240-R10 fig.4 45139 20 0 -0.050 1.0 24 80 20 150 6 51MLC200-240-R15 fig.4 45140 1.5 51MLC200-240-R20 fig.4 45141 2.0 Shouldering L33 Solid Tools
