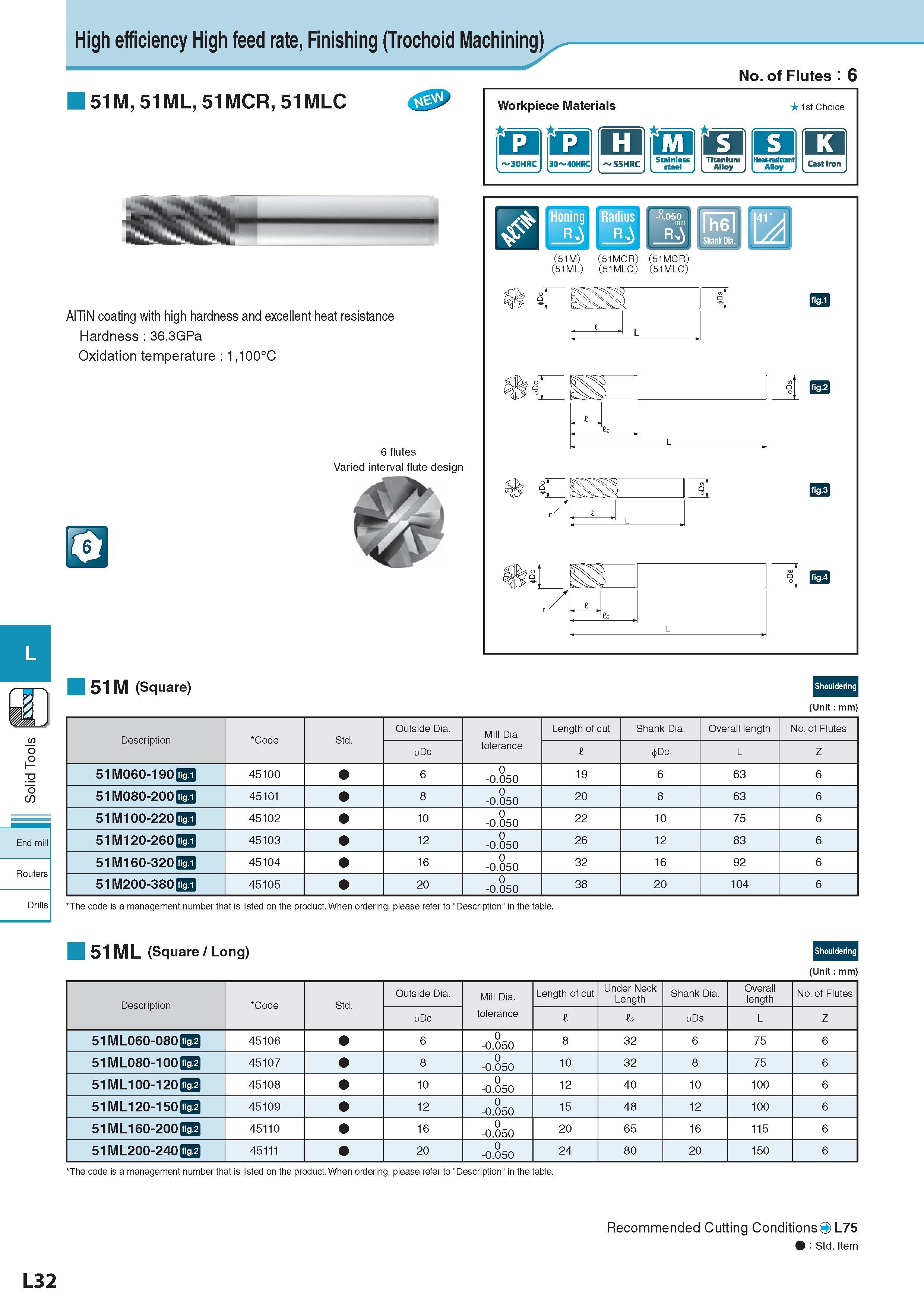

High efficiency High feed rate, Finishing (Trochoid Machining) 51M, 51ML, 51MCR, 51MLC AlTiN coating with high hardness and excellent heat resistance Hardness : 36.3GPa Oxidation temperature : 1,100°C 6 flutes Varied interval flute design No. of Flutes : 6 Workpiece Materials Обрабатываемые материалы 1st Choice Mi a Stainless I Titanium steel L Alloy Alloy (51M) (51MCR) (51MCR) (51ML) (51MLC) (51MLC) i L 12 L 51M (Square) (Unit : mm) Description Обозначение Code Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Dc L Z 51M060-190 fig.1 45100 6 0 -0.050 19 6 63 6 51M080-200 fig.1 45101 8 0 -0.050 20 8 63 6 51M100-220 fig.1 45102 10 0 -0.050 22 10 75 6 51M120-260 fig.1 45103 12 0 -0.050 26 12 83 6 51M160-320 fig.1 45104 16 0 -0.050 32 16 92 6 51M200-380 fig.1 45105 20 0 -0.050 38 20 104 6 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. 51ML (Square / Long) (Unit : mm) L l L End mill Description Обозначение Code Std. Outside Dia. Mill Dia. tolerance Length of cut Under Neck Length Shank Dia. Overall length No. of Flutes Dc I 12 Ds L Z 51ML060-080 fig.2 45106 6 0 -0.050 8 32 6 75 6 51ML080-100 fig.2 45107 8 0 -0.050 10 32 8 75 6 51ML100-120 fig.2 45108 10 0 -0.050 12 40 10 100 6 51ML120-150 fig.2 45109 12 0 -0.050 15 48 12 100 6 51ML160-200 fig.2 45110 16 0 -0.050 20 65 16 115 6 51ML200-240 fig.2 45111 20 0 -0.050 24 80 20 150 6 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L75 : Std. Item Стандартная позиция L32
