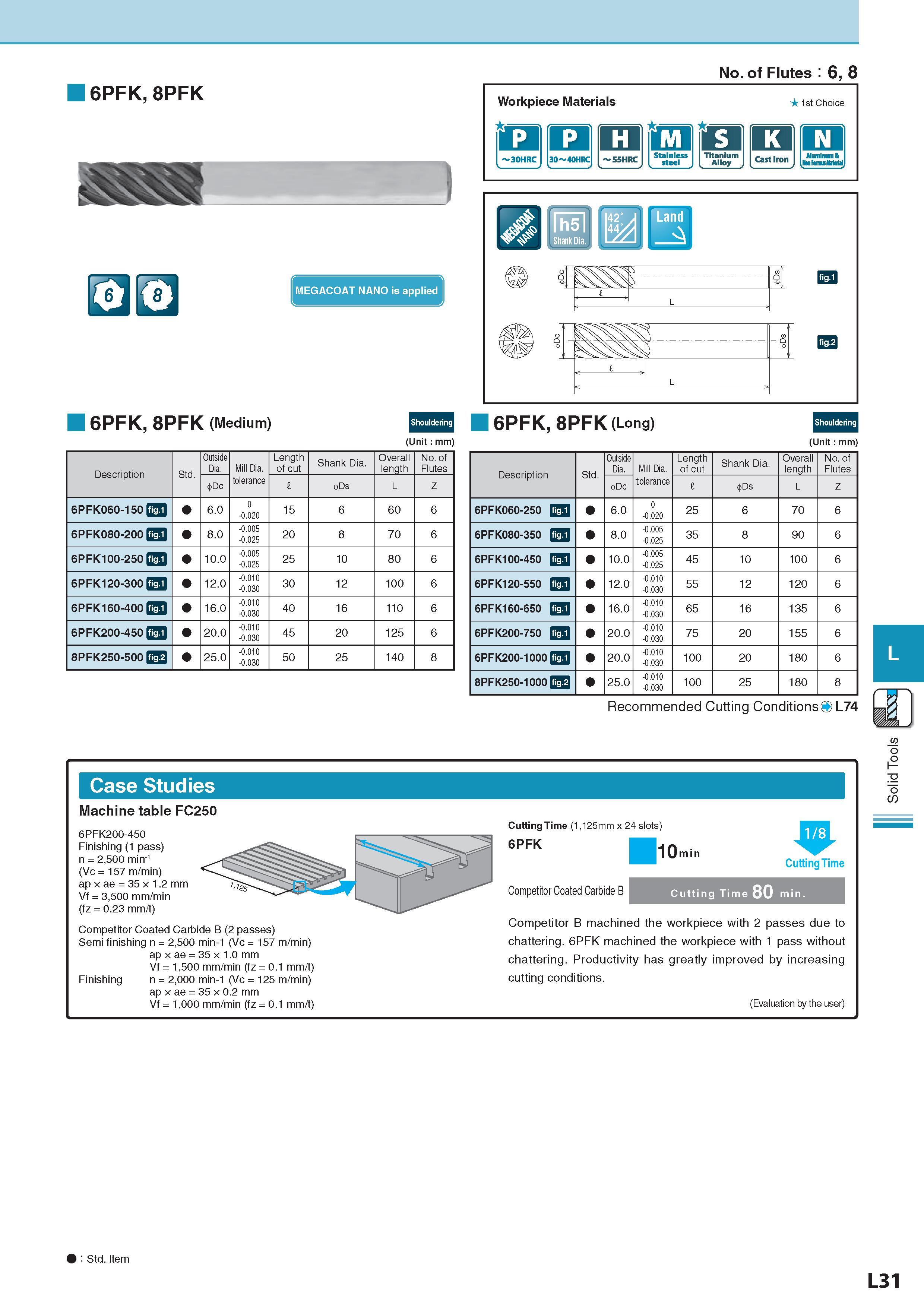

6PFK, 8PFK MEGACOAT NANO is applied No. of Flutes : 6, 8 Workpiece Materials Обрабатываемые материалы 1st Choice Titanium Alloy 6PFK, 8PFK (Medium) 6PFK, 8PFK(Long) (Unit : mm) (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 6PFK060-150 Ega 6.0 0 -0.020 15 6 60 6 6PFK080-200 HB 8.0 -0.005 -0.025 20 8 70 6 6PFK100-250 Ega 10.0 -0.005 -0.025 25 10 80 6 6PFK120-300 Egg 12.0 -0.010 -0.030 30 12 100 6 6PFK160-400 Egg 16.0 -0.010 -0.030 40 16 110 6 6PFK200-450 HQ 20.0 -0.010 -0.030 45 20 125 6 8PFK250-500 (20 25.0 -0.010 -0.030 50 25 140 8 Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 6PFK060-250 0 6.0 0 -0.020 25 6 70 6 6PFK080-350 EBB 8.0 -0.005 -0.025 35 8 90 6 6PFK100-450 Egg 10.0 -0.005 -0.025 45 10 100 6 6PFK120-550 EH3 12.0 -0.010 -0.030 55 12 120 6 6PFK160-650 EH3 16.0 -0.010 -0.030 65 16 135 6 6PFK200-750 EH3 20.0 -0.010 -0.030 75 20 155 6 6PFK200-1000 Eg 20.0 -0.010 -0.030 100 20 180 6 8PFK250-1000 HQ 25.0 -0.010 -0.030 100 25 180 8 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L74 Case Studies Machine table FC250 6PFK200-450 Finishing (1 pass) n = 2,500 min-1 (Vc = 157 m/min) ap x ae = 35 x 1.2 mm Vf = 3,500 mm/min (fz = 0.23 mm/t) Competitor Coated Carbide B (2 passes) Semi finishing n = 2,500 min-1 (Vc = 157 m/min) ap x ae = 35 x 1.0 mm Vf = 1,500 mm/min (fz = 0.1 mm/t) Finishing n = 2,000 min-1 (Vc = 125 m/min) ap x ae = 35 x 0.2 mm Vf = 1,000 mm/min (fz = 0.1 mm/t) Cutting Time (1,125mm x 24 slots) 6PFK 10m IT/8 Cutting Time Competitor Coated Carbide B Cutting Time 80 min. Competitor B machined the workpiece with 2 passes due to chattering. 6PFK machined the workpiece with 1 pass without chattering. Productivity has greatly improved by increasing cutting conditions. (Evaluation by the user) 9 : Std. Item Стандартная позиция L31 Solid Tools
