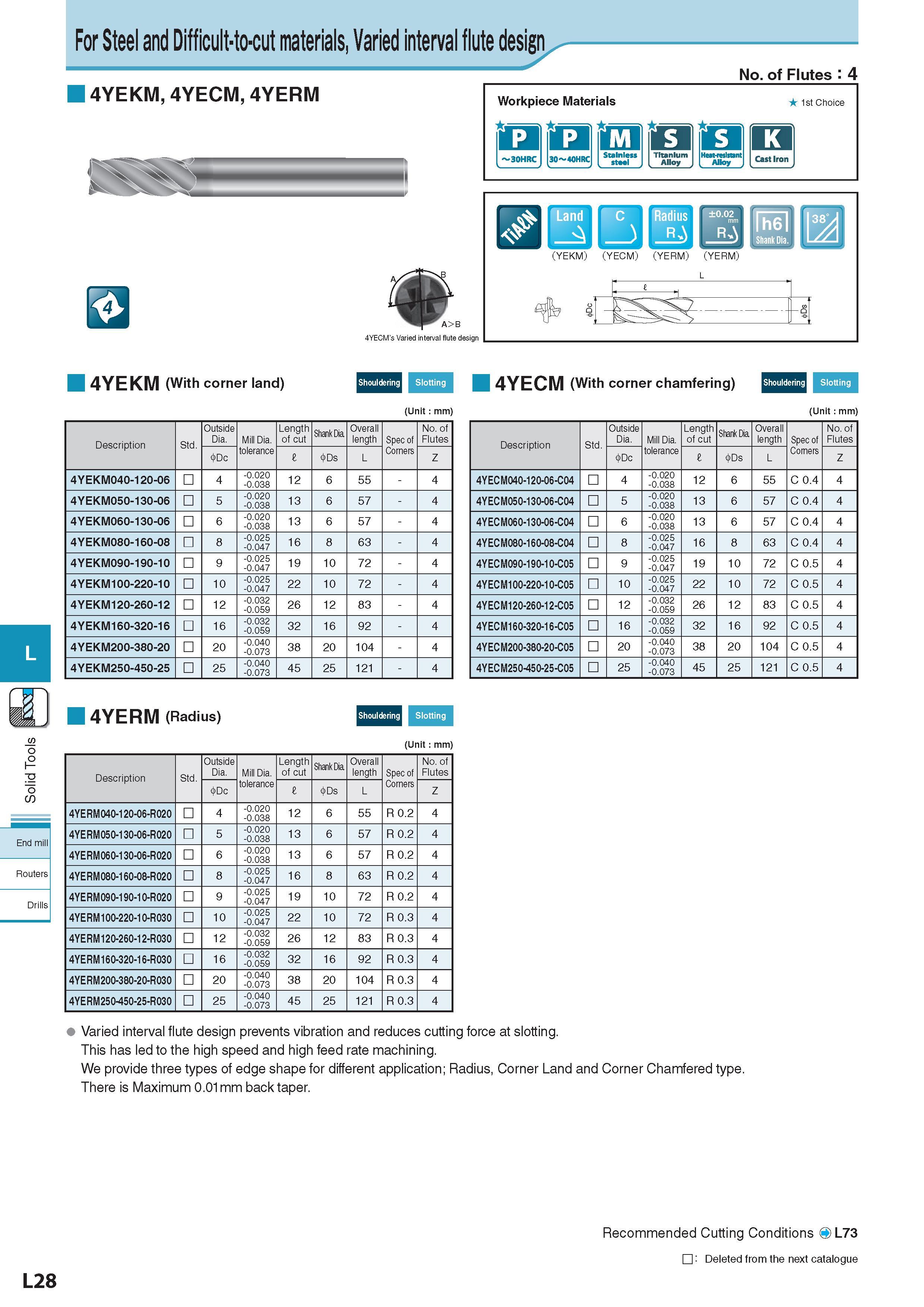

End mill Routers Drills L28 For Steel and Difficult-to-cut materials, Varied interval flute design 4YEKM, 4YECM, 4YERM No. of Flutes : 4 m 4YECM’s Varied interval flute design 4YEKM (With corner land) Shouldering Slotting 4YECM (With corner chamfering) Shouldering Slotting (Unit : mm) (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia Overall length Spec of Corners No. of Flutes < >Dc I Ds L Z 4YEKM040-120-06 4 -0.020 -0.038 12 6 55 - 4 4YEKM050-130-06 5 -0.020 -0.038 13 6 57 - 4 4YEKM060-130-06 6 -0.020 -0.038 13 6 57 - 4 4YEKM080-160-08 8 -0.025 -0.047 16 8 63 - 4 4YEKM090-190-10 9 -0.025 -0.047 19 10 72 - 4 4YEKM100-220-10 10 -0.025 -0.047 22 10 72 - 4 4YEKM120-260-12 12 -0.032 -0.059 26 12 83 - 4 4YEKM160-320-16 16 -0.032 -0.059 32 16 92 - 4 4YEKM200-380-20 20 -0.040 -0.073 38 20 104 - 4 4YEKM250-450-25 25 -0.040 -0.073 45 25 121 - 4 Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia Overall length Spec of Corners No. of Flutes Dc I Ds L Z 4YECM040-120-06-C04 4 -0.020 -0.038 12 6 55 C 0.4 4 4YECM050-130-06-C04 5 -0.020 -0.038 13 6 57 C 0.4 4 4YECM060-130-06-C04 6 -0.020 -0.038 13 6 57 C 0.4 4 4YECM080-160-08-C04 8 -0.025 -0.047 16 8 63 C 0.4 4 4YECM090-190-10-C05 9 -0.025 -0.047 19 10 72 C 0.5 4 4YECM100-220-10-C05 10 -0.025 -0.047 22 10 72 C 0.5 4 4YECM120-260-12-C05 12 -0.032 -0.059 26 12 83 C 0.5 4 4YECM160-320-16-C05 16 -0.032 -0.059 32 16 92 C 0.5 4 4YECM200-380-20-C05 20 -0.040 -0.073 38 20 104 C 0.5 4 4YECM250-450-25-C05 25 -0.040 -0.073 45 25 121 C 0.5 4 4YERM (Radius) (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length Spec of Corners No. of Flutes Dc I Ds L Z 4YERM040-120-06-R020 4 -0.020 -0.038 12 6 55 R 0.2 4 4YERM050-130-06-R020 5 -0.020 -0.038 13 6 57 R 0.2 4 4YERM060-130-06-R020 6 -0.020 -0.038 13 6 57 R 0.2 4 4YERM080-160-08-R020 8 -0.025 -0.047 16 8 63 R 0.2 4 4YERM090-190-10-R020 9 -0.025 -0.047 19 10 72 R 0.2 4 4YERM100-220-10-R030 10 -0.025 -0.047 22 10 72 R 0.3 4 4YERM120-260-12-R030 12 -0.032 -0.059 26 12 83 R 0.3 4 4YERM160-320-16-R030 16 -0.032 -0.059 32 16 92 R 0.3 4 4YERM200-380-20-R030 20 -0.040 -0.073 38 20 104 R 0.3 4 4YERM250-450-25-R030 25 -0.040 -0.073 45 25 121 R 0.3 4 Varied interval flute design prevents vibration and reduces cutting force at slotting. This has led to the high speed and high feed rate machining. We provide three types of edge shape for different application; Radius, Corner Land and Corner Chamfered type. There is Maximum 0.01mm back taper. Shouldering Slotting Recommended Cutting Conditions Рекомендованные режимы резания на станках OL73 : Deleted from the next catalogue
