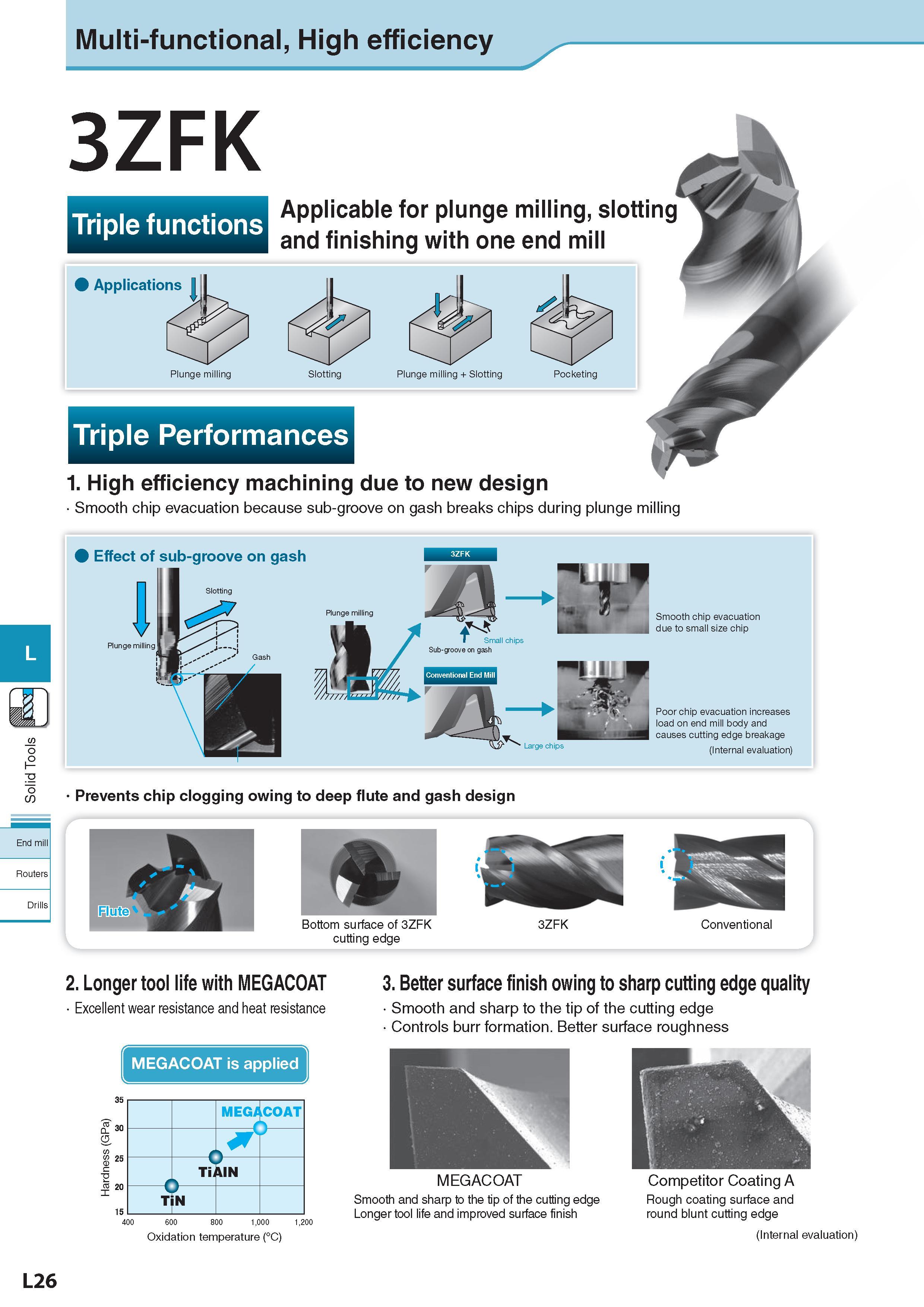

Multi-functional, High efficiency o ,o o 3ZFK Triple functions Applicable for plunge milling, slotting and finishing with one end mill Slotting Triple Performances 1. High efficiency machining due to new design Smooth chip evacuation because sub-groove on gash breaks chips during plunge milling Effect of sub-groove on gash Slotting V Plunge milling Large chips Smooth chip evacuation due to small size chip Poor chip evacuation increases load on end mill body and causes cutting edge breakage (Internal evaluation) Prevents chip clogging owing to deep flute and gash design Bottom surface of 3ZFK cutting edge 3ZFK Conventional 2. Longer tool life with MEGACOAT Excellent wear resistance and heat resistance MEGACOAT is applied Q O MEGACOAT / Tii AlN T,N 400 600 800 1,000 1,200 Oxidation temperature (°C) 3. Better surface finish owing to sharp cutting edge quality Smooth and sharp to the tip of the cutting edge Controls burr formation. Better surface roughness MEGACOAT Smooth and sharp to the tip of the cutting edge Longer tool life and improved surface finish Competitor Coating A Rough coating surface and round blunt cutting edge (Internal evaluation) End mill L26
