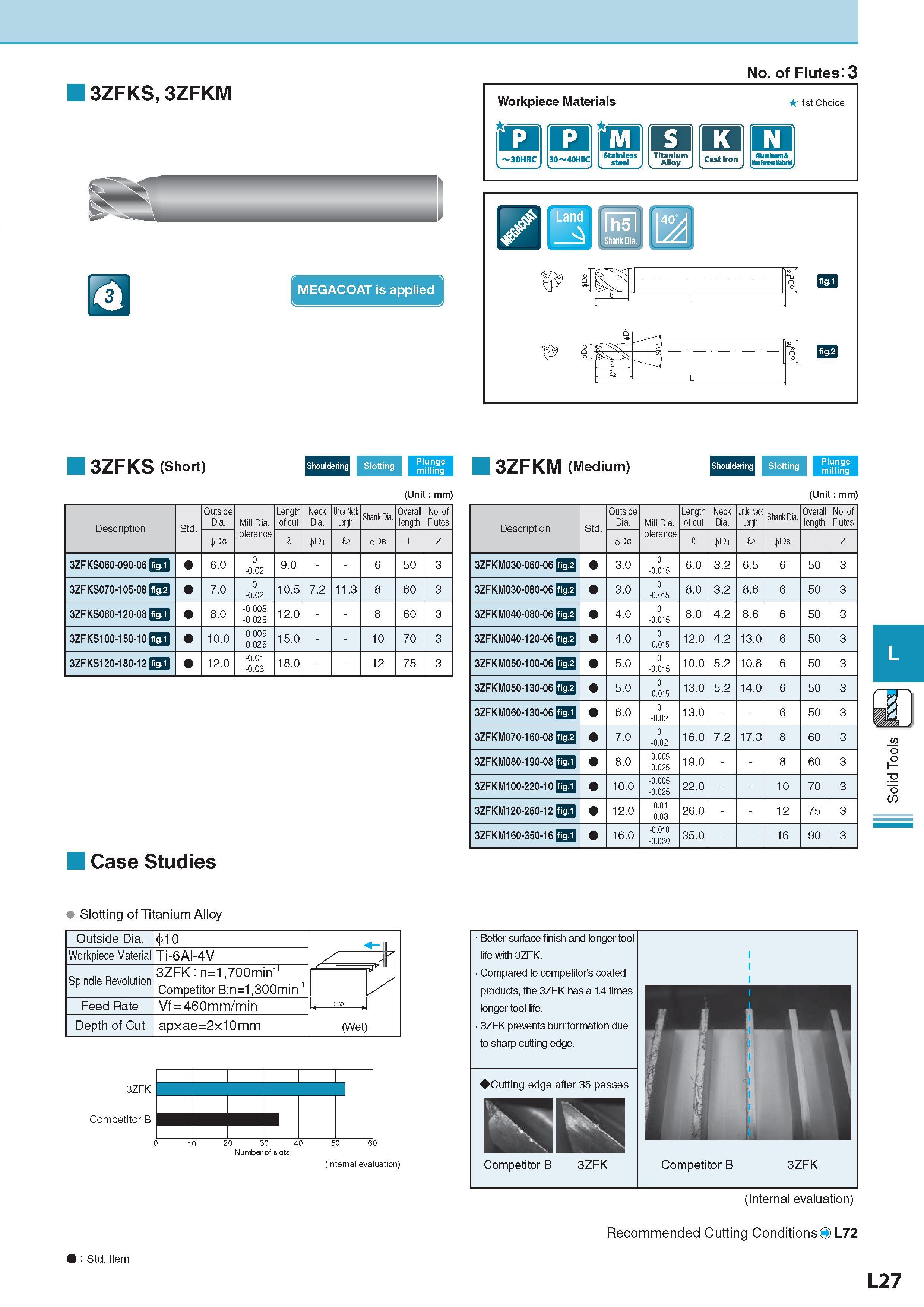

3ZFKS, 3ZFKM MEGACOAT is applied No. of Flutes: 3 Workpiece Materials Обрабатываемые материалы 1st Choice a do Titanium Alloy il La"d I fhil 3 I Shank Dia. 3ZFKS (Short) Shouldering Slotting i mun gg (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes 4>Dc I D1 £2 Ds L Z 3ZFKS060-090-06 HQ 6.0 0 -0.02 9.0 6 50 3 3ZFKS070-105-08 fig.2 7.0 0 -0.02 10.5 7.2 11.3 8 60 3 3ZFKS080-120-08 fig.1 8.0 -0.005 -0.025 12.0 8 60 3 3ZFKS100-150-10 fig.1 10.0 -0.005 -0.025 15.0 10 70 3 3ZFKS120-180-12 fig.1 12.0 -0.01 -0.03 18.0 12 75 3 Case Studies Slotting of Titanium Alloy 3ZFK Competitor B 0 20 30 40 Number of slots Outside Dia. 10 4 11 Workpiece Material Обрабатываемый материал Ti-6Al-4V Spindle Revolution 3ZFK: n=1,700min'1 Competitor B:n=1,300min'1 Feed Rate Vf = 460mm/min i 230 i Depth of Cut apxae=2x10mm (Wet) 50 60 (Internal evaluation) 3ZFKM (Medium) Shouldering Slotting i mizg (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes Dc I D1 £2 Ds L Z 3ZFKM030-060-06 E0 3.0 0 -0.015 6.0 3.2 6.5 6 50 3 3ZFKM030-080-06 E0 3.0 0 -0.015 8.0 3.2 8.6 6 50 3 3ZFKM040-080-06 E0 4.0 0 -0.015 8.0 4.2 8.6 6 50 3 3ZFKM040-120-06 E0 4.0 0 -0.015 12.0 4.2 13.0 6 50 3 3ZFKM050-100-06 E0 5.0 0 -0.015 10.0 5.2 10.8 6 50 3 3ZFKM050-130-06 E0 5.0 0 -0.015 13.0 5.2 14.0 6 50 3 3ZFKM060-130-06 ED 6.0 0 -0.02 13.0 6 50 3 3ZFKM070-160-08 E0 7.0 0 -0.02 16.0 7.2 17.3 8 60 3 3ZFKM080-190-08 ED 8.0 -0.005 -0.025 19.0 8 60 3 3ZFKM100-220-10 ED 10.0 -0.005 -0.025 22.0 10 70 3 3ZFKM120-260-12 ED 12.0 -0.01 -0.03 26.0 12 75 3 3ZFKM160-350-16 ED 16.0 -0.010 -0.030 35.0 16 90 3 Better surface finish and longer tool life with 3ZFK. Compared to competitor's coated products, the 3ZFK has a 1.4 times longer tool life. 3ZFK prevents burr formation due to sharp cutting edge. Cutting edge after 35 passes Competitor B 3ZFK Competitor B 3ZFK (Internal evaluation) Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L72 9 : Std. Item Стандартная позиция 10 L27 Solid Tools
