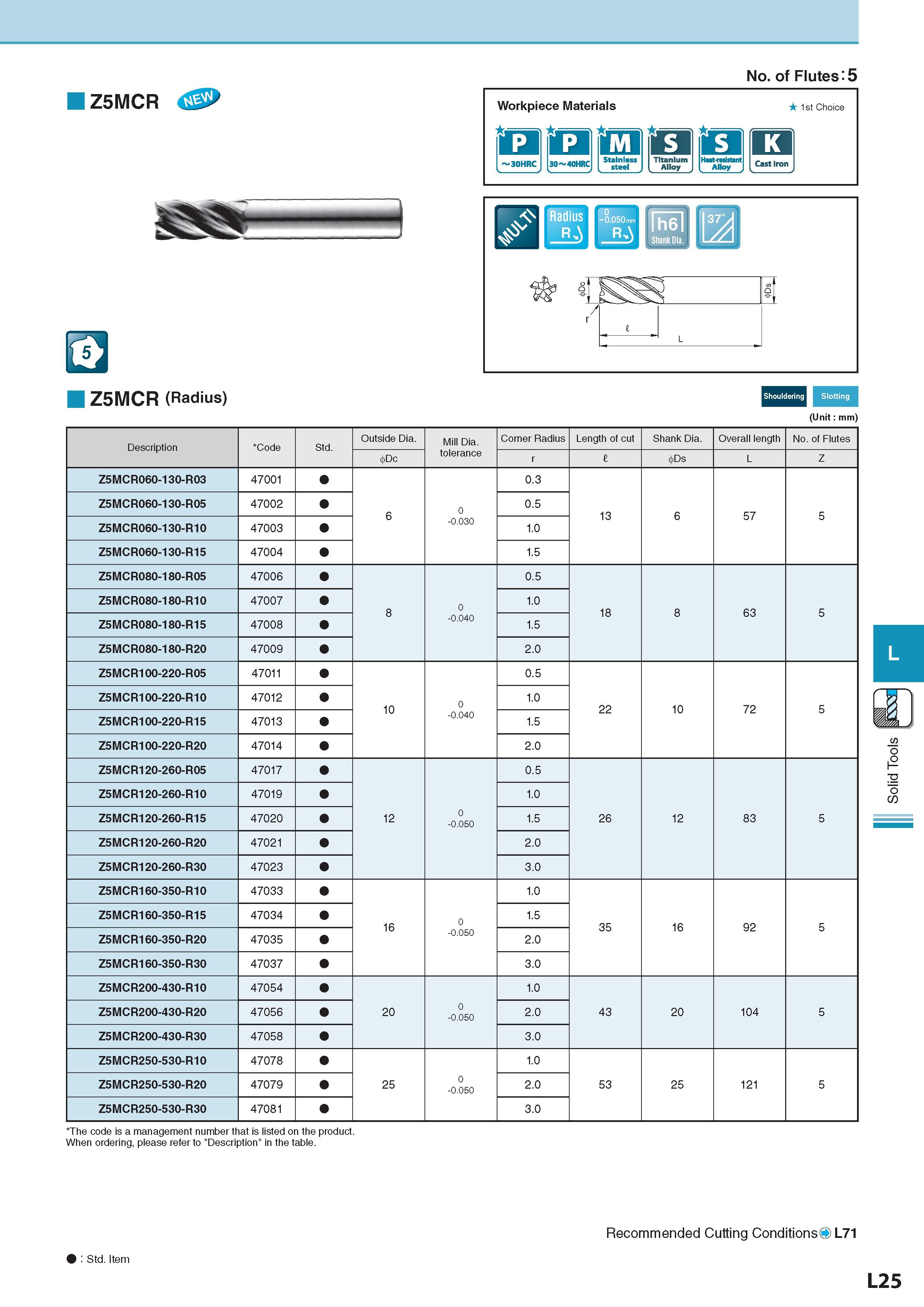

No. of Flutes: 5 Z5MCR Workpiece Materials Обрабатываемые материалы r ra 1st Choice Q Alloy Z5MCR (Radius) Radius -0.050mm 1 1 JRJS Shouldering Slotting (Unit : mm) Description Обозначение Code Std. Outside Dia. Mill Dia. Corner Radius Length of cut Shank Dia. Overall length No. of Flutes Dc tolerance r 1 Ds L Z Z5MCR060-130-R03 47001 0.3 Z5MCR060-130-R05 47002 6 0 0.5 13 6 57 5 Z5MCR060-130-R10 47003 -0.030 1.0 Z5MCR060-130-R15 47004 1.5 Z5MCR080-180-R05 47006 0.5 Z5MCR080-180-R10 47007 8 0 1.0 18 8 63 5 Z5MCR080-180-R15 47008 -0.040 1.5 Z5MCR080-180-R20 47009 2.0 Z5MCR100-220-R05 47011 0.5 Z5MCR100-220-R10 47012 10 0 1.0 22 10 72 5 Z5MCR100-220-R15 47013 -0.040 1.5 Z5MCR100-220-R20 47014 2.0 Z5MCR120-260-R05 47017 0.5 Z5MCR120-260-R10 47019 1.0 Z5MCR120-260-R15 47020 12 0 -0.050 1.5 26 12 83 5 Z5MCR120-260-R20 47021 2.0 Z5MCR120-260-R30 47023 3.0 Z5MCR160-350-R10 47033 1.0 Z5MCR160-350-R15 47034 16 0 1.5 35 16 92 5 Z5MCR160-350-R20 47035 -0.050 2.0 Z5MCR160-350-R30 47037 3.0 Z5MCR200-430-R10 47054 1.0 Z5MCR200-430-R20 47056 20 0 -0.050 2.0 43 20 104 5 Z5MCR200-430-R30 47058 3.0 Z5MCR250-530-R10 47078 1.0 Z5MCR250-530-R20 47079 25 0 -0.050 2.0 53 25 121 5 Z5MCR250-530-R30 47081 3.0 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. 0 : Std. Item Стандартная позиция Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L71 L L25 Solid Tools
