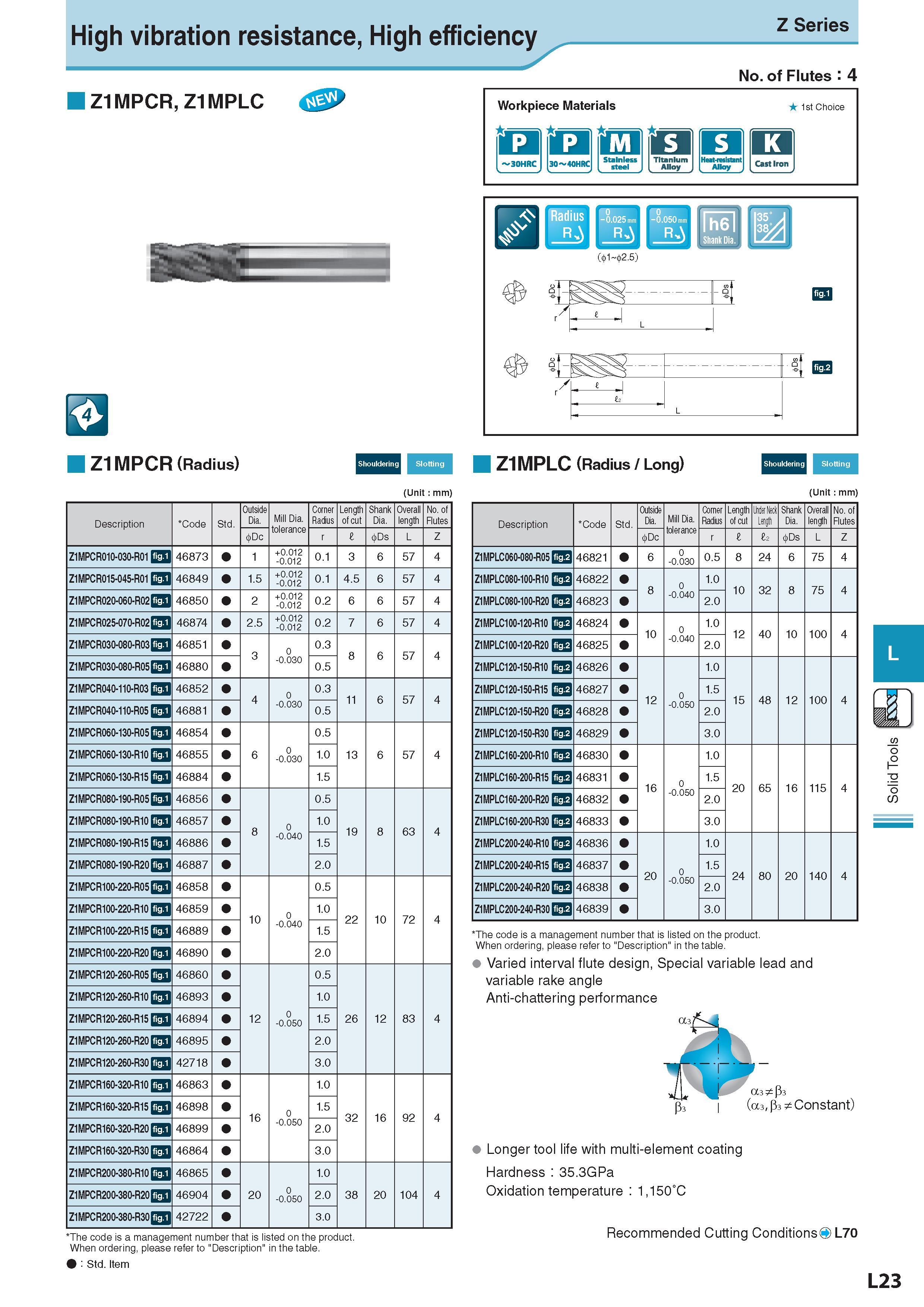

High vibration resistance, High efficiency Z Series Z1MPCR, Z1MPLC No. of Flutes : 4 m Z1MPCR (Radius) Description Обозначение Code Std Outside Dia. Mill Dia. tolerance Corner Radius Length of cut Shank Dia. Overall length No. of Flutes 0Dc r I 0Ds L Z Z1MPCR010-030-R01 fig.1 46873 1 +0.012 -0.012 0.1 3 6 57 4 Z1MPCR015-045-R01 fig.1 46849 1.5 +0.012 -0.012 0.1 4.5 6 57 4 Z1MPCR020-060-R02 fig.1 46850 2 +0.012 -0.012 0.2 6 6 57 4 Z1MPCR025-070-R02 fig.1 46874 2.5 +0.012 -0.012 0.2 7 6 57 4 Z1MPCR030-080-R03 fig.1 46851 3 0 0.3 8 6 57 4 Z1MPCR030-080-R05 fig.1 46880 -0.030 0.5 Z1MPCR040-110-R03 fig.1 46852 4 0 0.3 11 6 57 4 Z1MPCR040-110-R05 fig.1 46881 -0.030 0.5 Z1MPCR060-130-R05 fig.1 46854 0.5 Z1MPCR060-130-R10 fig.1 46855 6 0 -0.030 1.0 13 6 57 4 Z1MPCR060-130-R15 fig.1 46884 1.5 Z1MPCR080-190-R05 fig.1 46856 0.5 Z1MPCR080-190-R10 fig.1 46857 8 0 1.0 19 8 63 4 Z1MPCR080-190-R15 fig.1 46886 -0.040 1.5 Z1MPCR080-190-R20 fig.1 46887 2.0 Z1MPCR100-220-R05 fig.1 46858 0.5 Z1MPCR100-220-R10 fig.1 46859 10 0 1.0 22 10 72 4 Z1MPCR100-220-R15 fig.1 46889 -0.040 1.5 Z1MPCR100-220-R20 fig.1 46890 2.0 Z1MPCR120-260-R05 fig.1 46860 0.5 Z1MPCR120-260-R10 fig.1 46893 1.0 Z1MPCR120-260-R15 fig.1 46894 12 0 -0.050 1.5 26 12 83 4 Z1MPCR120-260-R20 fig.1 46895 2.0 Z1MPCR120-260-R30 fig.1 42718 3.0 Z1MPCR160-320-R10 fig.1 46863 1.0 Z1MPCR160-320-R15 fig.1 46898 16 0 1.5 32 16 92 4 Z1MPCR160-320-R20 fig.1 46899 -0.050 2.0 Z1MPCR160-320-R30 fig.1 46864 3.0 Z1MPCR200-380-R10 fig.1 46865 1.0 Z1MPCR200-380-R20 fig.1 46904 20 0 -0.050 2.0 38 20 104 4 Z1MPCR200-380-R30 fig.1 42722 3.0 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. : Std. Item Стандартная позиция Workpiece Materials Обрабатываемые материалы 1st Choice B I Titanium Alloy t Alloy Radius l s (01-02.53 Shouldering Slotting (Unit : mm) Z1MPLC (Radius / Long) Shouldering I Slotting (Unit : mm) Description Обозначение Code Std Outside Dia. Mill Dia. tolerance Corner Radius Length of cut Under Neck Length Shank Dia. Overall length No. of Flutes 0Dc r I I2 0Ds L Z Z1MPLC060-080-R05 fig.2 46821 6 0 -0.030 0.5 8 24 6 75 4 Z1MPLC080-100-R10 fig.2 46822 8 0 1.0 10 32 8 75 4 Z1MPLC080-100-R20 fig.2 46823 -0.040 2.0 Z1MPLC100-120-R10 fig.2 46824 10 0 1.0 12 40 10 100 4 Z1MPLC100-120-R20 fig.2 46825 -0.040 2.0 Z1MPLC120-150-R10 fig.2 46826 1.0 Z1MPLC120-150-R15 fig.2 46827 12 0 1.5 15 48 12 100 4 Z1MPLC120-150-R20 fig.2 46828 -0.050 2.0 Z1MPLC120-150-R30 fig.2 46829 3.0 Z1MPLC160-200-R10 fig.2 46830 1.0 Z1MPLC160-200-R15 fig.2 46831 16 0 1.5 20 65 16 115 4 Z1MPLC160-200-R20 fig.2 46832 -0.050 2.0 Z1MPLC160-200-R30 fig.2 46833 3.0 Z1MPLC200-240-R10 fig.2 46836 1.0 Z1MPLC200-240-R15 fig.2 46837 20 0 1.5 24 80 20 140 4 Z1MPLC200-240-R20 fig.2 46838 -0.050 2.0 Z1MPLC200-240-R30 fig.2 46839 3.0 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. Varied interval flute design, Special variable lead and variable rake angle Anti-chattering performance a3 p3 I (c P3 (a3, Constant) Longer tool life with multi-element coating Hardness : 35.3GPa Oxidation temperature : 1,150°C Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L70 L23 Solid Tools
