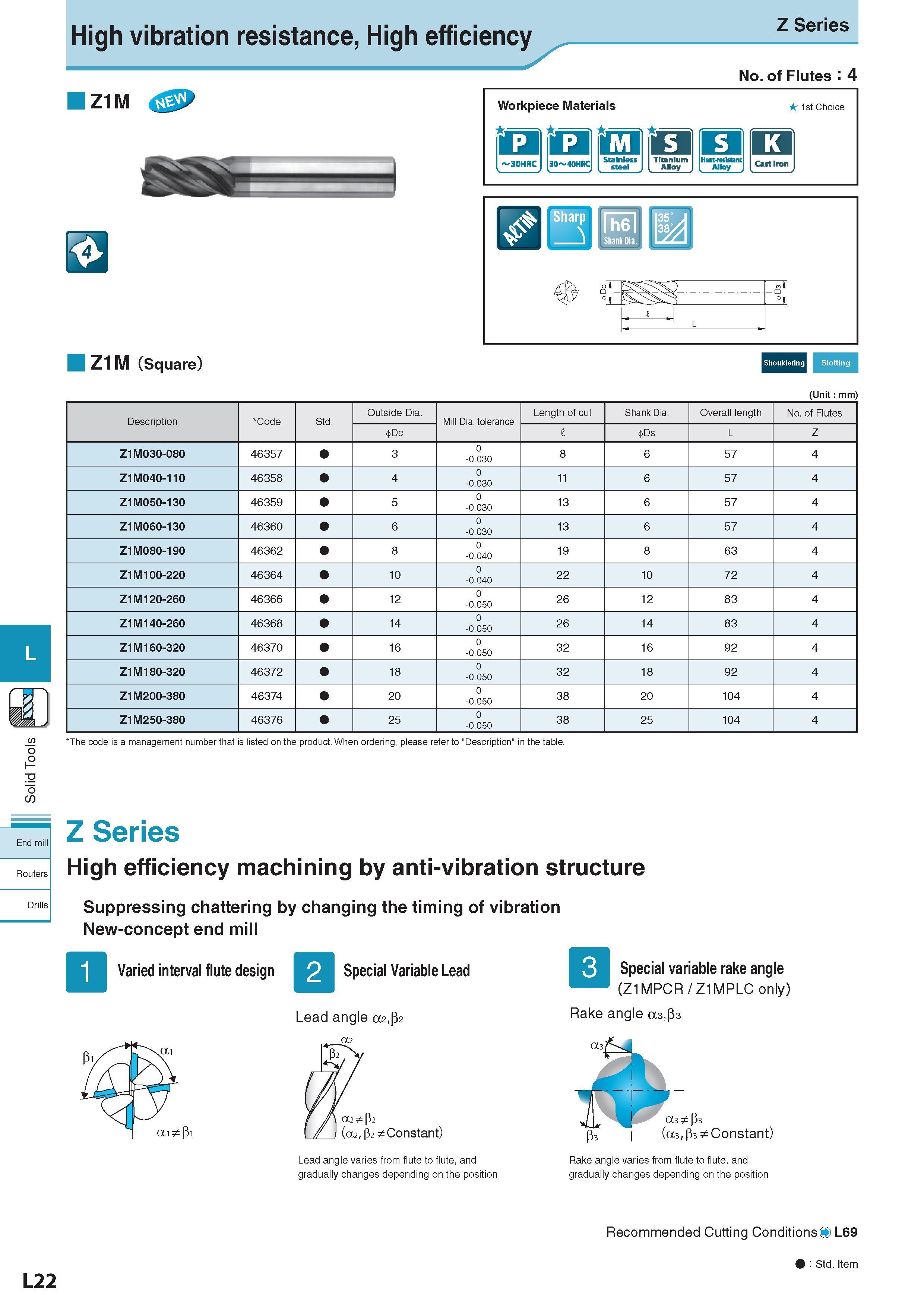

High vibration resistance, High efficiency Z Series No. of Flutes : 4 Z1M Workpiece Materials Обрабатываемые материалы 1st Choice Stainless steel Titanium Alloy Heat-resistant Alloy 1 Sha h£l V' I j I Shank Dia. Q T Z1M (Square) Shouldering Slotting (Unit : mm) End mill Routers Description Обозначение Code Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z Z1M030-080 46357 3 0 -0.030 8 6 57 4 Z1M040-110 46358 4 0 -0.030 11 6 57 4 Z1M050-130 46359 5 0 -0.030 13 6 57 4 Z1M060-130 46360 6 0 -0.030 13 6 57 4 Z1M080-190 46362 8 0 -0.040 19 8 63 4 Z1M100-220 46364 10 0 -0.040 22 10 72 4 Z1M120-260 46366 12 0 -0.050 26 12 83 4 Z1M140-260 46368 14 0 -0.050 26 14 83 4 Z1M160-320 46370 16 0 -0.050 32 16 92 4 Z1M180-320 46372 18 0 -0.050 32 18 92 4 Z1M200-380 46374 20 0 -0.050 38 20 104 4 Z1M250-380 46376 25 0 -0.050 38 25 104 4 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. Z Series High efficiency machining by anti-vibration structure Suppressing chattering by changing the timing of vibration New-concept end mill Varied interval flute design Special Variable Lead Lead angle a2,02 Special variable rake angle (Z1MPCR / Z1MPLC only) Rake angle a3,p3 02 p2 (02, p2 Constant) Lead angle varies from flute to flute, and gradually changes depending on the position Pb a3 p3 (a3, P3 Constant) Rake angle varies from flute to flute, and gradually changes depending on the position L22 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L69 9 : Std. Item
