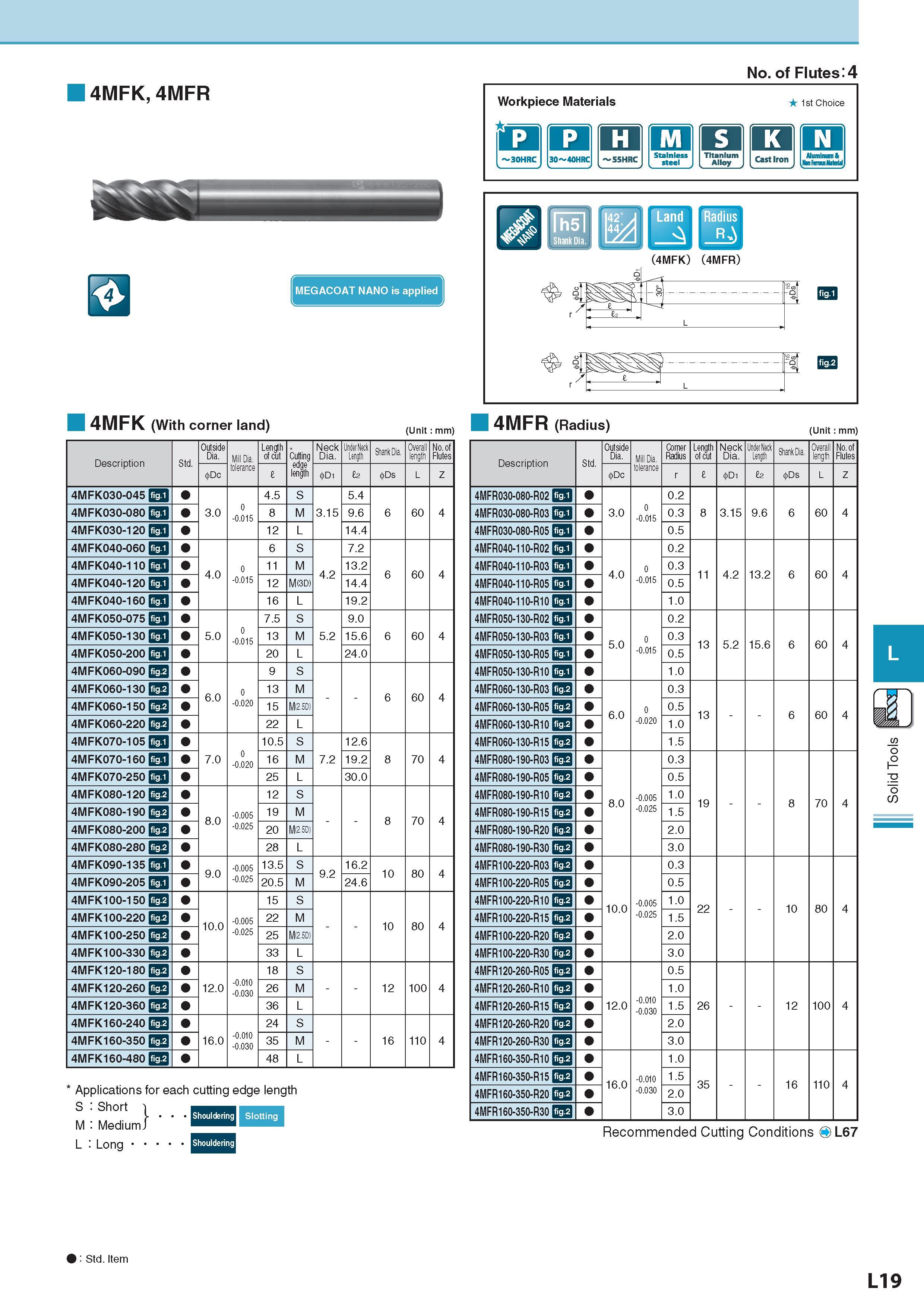

No. of Flutes: 4 4MFK, 4MFR m MEGACOAT NANO is applied 4MFK (With corner land) Description Обозначение Std. Outside Dia. Mill Dia. Length of cut Cutting Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes Dc tolerance I length D1 £2 Ds L Z 4MFK030-045 fig.1 0 -0.015 4.5 S 5.4 4MFK030-080 fig.1 3.0 8 M 3.15 9.6 6 60 4 4MFK030-120 fig.1 12 L 14.4 4MFK040-060 fig.1 6 S 7.2 4MFK040-110 fig.1 4.0 0 11 M 4.2 13.2 6 60 4 4MFK040-120 fig.1 -0.015 12 M(3D) 14.4 4MFK040-160 fig.1 16 L 19.2 4MFK050-075 fig.1 0 -0.015 7.5 S 9.0 4MFK050-130 fig.1 5.0 13 M 5.2 15.6 6 60 4 4MFK050-200 fig.1 20 L 24.0 4MFK060-090 fig.2 9 S 4MFK060-130 fig.2 6.0 0 13 M 6 60 4 4MFK060-150 fig.2 -0.020 15 M(2.5D) 4MFK060-220 fig.2 22 L 4MFK070-105 fig.1 0 -0.020 10.5 S 12.6 4MFK070-160 fig.1 7.0 16 M 7.2 19.2 8 70 4 4MFK070-250 fig.1 25 L 30.0 4MFK080-120 fig.2 12 S 4MFK080-190 fig.2 8.0 -0.005 19 M 8 70 4 4MFK080-200 fig.2 -0.025 20 M(2.5D) 4MFK080-280 fig.2 28 L 4MFK090-135 fig.1 9.0 -0.005 13.5 S 9.2 16.2 10 80 4 4MFK090-205 fig.1 -0.025 20.5 M 24.6 4MFK100-150 fig.2 15 S 4MFK100-220 fig.2 10.0 -0.005 22 M 10 80 4 4MFK100-250 fig.2 -0.025 25 M(2.5D) 4MFK100-330 fig.2 33 L 4MFK120-180 fig.2 -0.010 -0.030 18 S 4MFK120-260 fig.2 12.0 26 M 12 100 4 4MFK120-360 fig.2 36 L 4MFK160-240 fig.2 24 S 4MFK160-350 fig.2 16.0 -0.010 -0.030 35 M 16 110 4 4MFK160-480 fig.2 48 L Applications for each cutting edge length S : Short M : Medium L : Long Shouldering Slotting Shouldering (Unit : mm) 4MFR (Radius) (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. Corner Radius Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes Dc tolerance r I D1 £2 Ds L Z 4MFR030-080-R02 fig.1 0.2 4MFR030-080-R03 fig.1 3.0 0 -0.015 0.3 8 3.15 9.6 6 60 4 4MFR030-080-R05 fig.1 0.5 4MFR040-110-R02 fig.1 0.2 4MFR040-110-R03 fig.1 4.0 0 0.3 11 4.2 13.2 6 60 4 4MFR040-110-R05 fig.1 -0.015 0.5 4MFR040-110-R10 fig.1 1.0 4MFR050-130-R02 fig.1 0.2 4MFR050-130-R03 fig.1 5.0 0 0.3 13 5.2 15.6 6 60 4 4MFR050-130-R05 fig.1 -0.015 0.5 4MFR050-130-R10 fig.1 1.0 4MFR060-130-R03 fig.2 0.3 4MFR060-130-R05 fig.2 6.0 0 0.5 13 6 60 4 4MFR060-130-R10 fig.2 -0.020 1.0 4MFR060-130-R15 fig.2 1.5 4MFR080-190-R03 fig.2 0.3 4MFR080-190-R05 fig.2 0.5 4MFR080-190-R10 fig.2 8.0 -0.005 1.0 19 8 70 4 4MFR080-190-R15 fig.2 -0.025 1.5 4MFR080-190-R20 fig.2 2.0 4MFR080-190-R30 fig.2 3.0 4MFR100-220-R03 fig.2 0.3 4MFR100-220-R05 fig.2 0.5 4MFR100-220-R10 fig.2 10.0 -0.005 1.0 22 10 80 4 4MFR100-220-R15 fig.2 -0.025 1.5 4MFR100-220-R20 fig.2 2.0 4MFR100-220-R30 fig.2 3.0 4MFR120-260-R05 fig.2 0.5 4MFR120-260-R10 fig.2 -0.010 -0.030 1.0 4MFR120-260-R15 fig.2 12.0 1.5 26 12 100 4 4MFR120-260-R20 fig.2 2.0 4MFR120-260-R30 fig.2 3.0 4MFR160-350-R10 fig.2 1.0 4MFR160-350-R15 fig.2 16.0 -0.010 1.5 35 16 110 4 4MFR160-350-R20 fig.2 -0.030 2.0 4MFR160-350-R30 fig.2 3.0 Recommended Cutting Conditions Рекомендованные режимы резания на станках OL67 : Std. Item Стандартная позиция L19 Solid Tools
