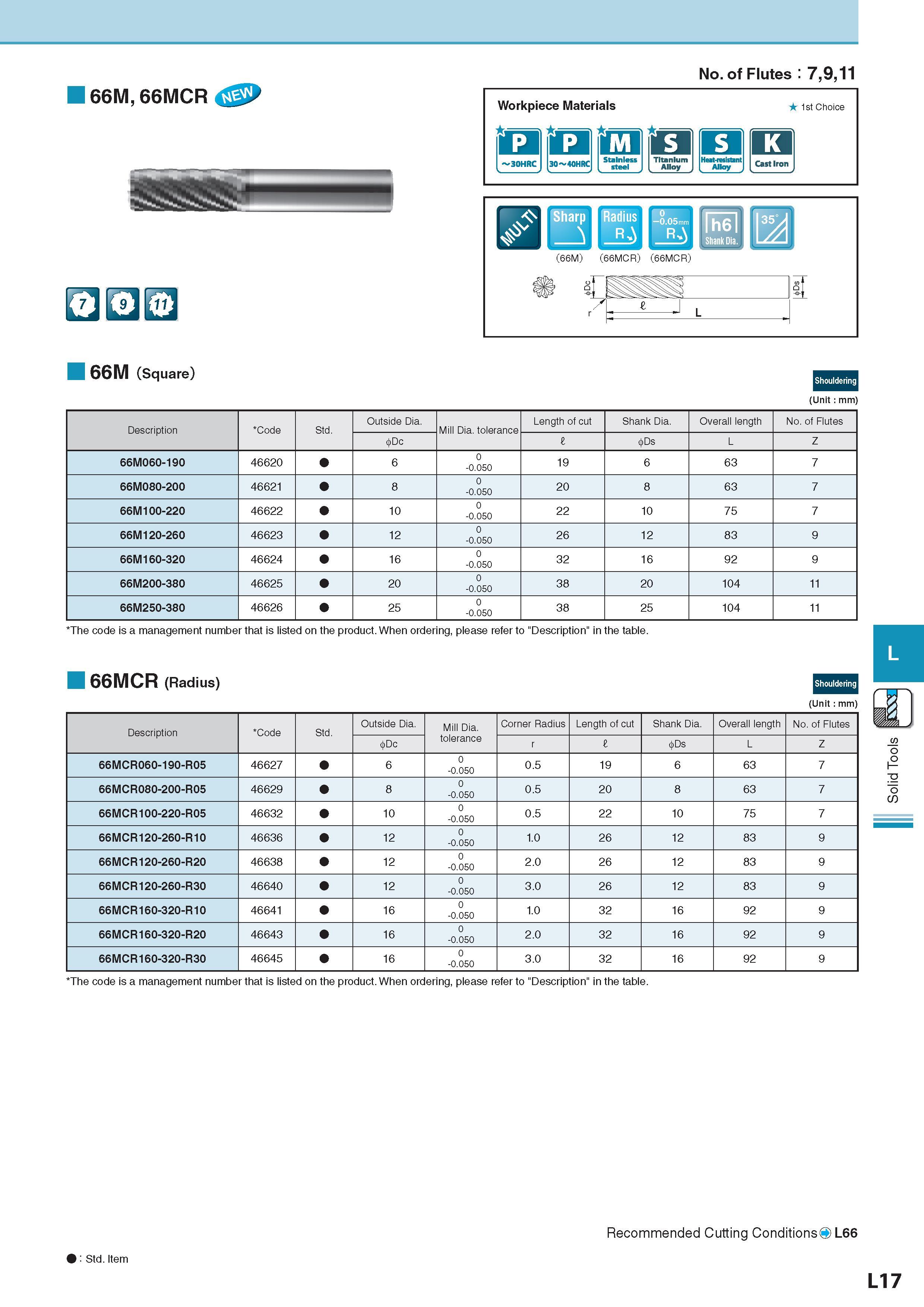

66M, 66MCR No. of Flutes : 7,9,11 Workpiece Materials Обрабатываемые материалы Titanium Alloy 1st Choice Heat-resistant Alloy Sharp I Radi l J R (66M) (66MCR) (66MCR) I 66M (Square) (Unit : mm) Description Обозначение Code Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 66M060-190 46620 6 0 -0.050 19 6 63 7 66M080-200 46621 8 0 -0.050 20 8 63 7 66M100-220 46622 10 0 -0.050 22 10 75 7 66M120-260 46623 12 0 -0.050 26 12 83 9 66M160-320 46624 16 0 -0.050 32 16 92 9 66M200-380 46625 20 0 -0.050 38 20 104 11 66M250-380 46626 25 0 -0.050 38 25 104 11 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. 66MCR (Radius) (Unit : mm) Description Обозначение Code Std. Outside Dia. Mill Dia. tolerance Corner Radius Length of cut Shank Dia. Overall length No. of Flutes Dc r I Ds L Z 66MCR060-190-R05 46627 6 0 -0.050 0.5 19 6 63 7 66MCR080-200-R05 46629 8 0 -0.050 0.5 20 8 63 7 66MCR100-220-R05 46632 10 0 -0.050 0.5 22 10 75 7 66MCR120-260-R10 46636 12 0 -0.050 1.0 26 12 83 9 66MCR120-260-R20 46638 12 0 -0.050 2.0 26 12 83 9 66MCR120-260-R30 46640 12 0 -0.050 3.0 26 12 83 9 66MCR160-320-R10 46641 16 0 -0.050 1.0 32 16 92 9 66MCR160-320-R20 46643 16 0 -0.050 2.0 32 16 92 9 66MCR160-320-R30 46645 16 0 -0.050 3.0 32 16 92 9 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L66 9: Std. Item L17 Solid Tools
