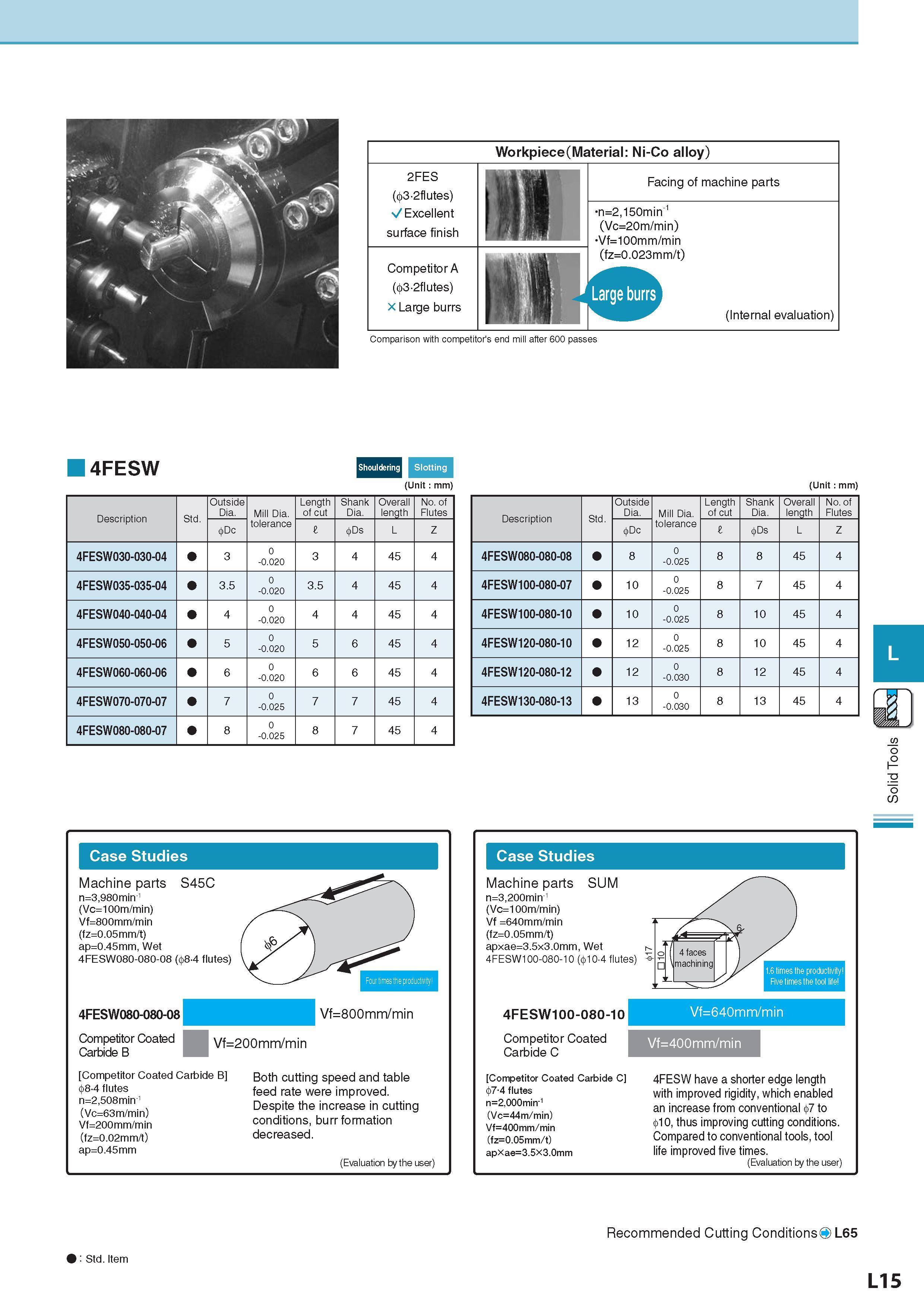

658 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L15

Каталог KYOCERA 2017 Инструмент режущий Стр. L15 0658 Lab2u

4FESW Shouldering Slotting (Unit : mm) (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 4FESW030-030-04 3 0 -0.020 3 4 45 4 4FESW035-035-04 3.5 0 -0.020 3.5 4 45 4 4FESW040-040-04 4 0 -0.020 4 4 45 4 4FESW050-050-06 5 0 -0.020 5 6 45 4 4FESW060-060-06 6 0 -0.020 6 6 45 4 4FESW070-070-07 7 0 -0.025 7 7 45 4 4FESW080-080-07 8 0 -0.025 8 7 45 4 Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 4FESW080-080-08 8 0 -0.025 8 8 45 4 4FESW100-080-07 10 0 -0.025 8 7 45 4 4FESW100-080-10 10 0 -0.025 8 10 45 4 4FESW120-080-10 12 0 -0.025 8 10 45 4 4FESW120-080-12 12 0 -0.030 8 12 45 4 4FESW130-080-13 13 0 -0.030 8 13 45 4 Case Studies Machine parts n=3,980min-1 (Vc=100m/min) Vf=800mm/min (fz=0.05mm/t) ap=0.45mm, Wet 4FESW080-080-08 S45C 5-4 flutes) 4FESW080-080-08 Competitor Coated Carbide B Vf=800mm/min Vf=200mm/min Competitor Coated Carbide B 8-4 flutes n=2,508min-1 (Vc=63m/min) Vf=200mm/min (fz=0.02mm/t) ap=0.45mm Both cutting speed and table feed rate were improved. Despite the increase in cutting conditions, burr formation decreased. (Evaluation by the user) Case Studies Machine parts SUM n=3,200min-1 (Vc=100m/min) Vf =640mm/min (fz=0.05mm/t) apxae=3.5x3.0mm, Wet 4FESW100-080-10 ( 10-4 flutes) 4FESW100-080-10 Competitor Coated Carbide C Vf=640mm/min Vf=400mm/min Competitor Coated Carbide C 7-4 flutes n=2,000min-1 (Vc=44m/min) Vf=400mm/min (fz=0.05mm/t) apXae=3.5X3.0mm 4FESW have a shorter edge length with improved rigidity, which enabled an increase from conventional 7 to 10, thus improving cutting conditions. Compared to conventional tools, tool life improved five times. (Evaluation by the user) Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L65 9: Std. Item L15 Solid Tools
