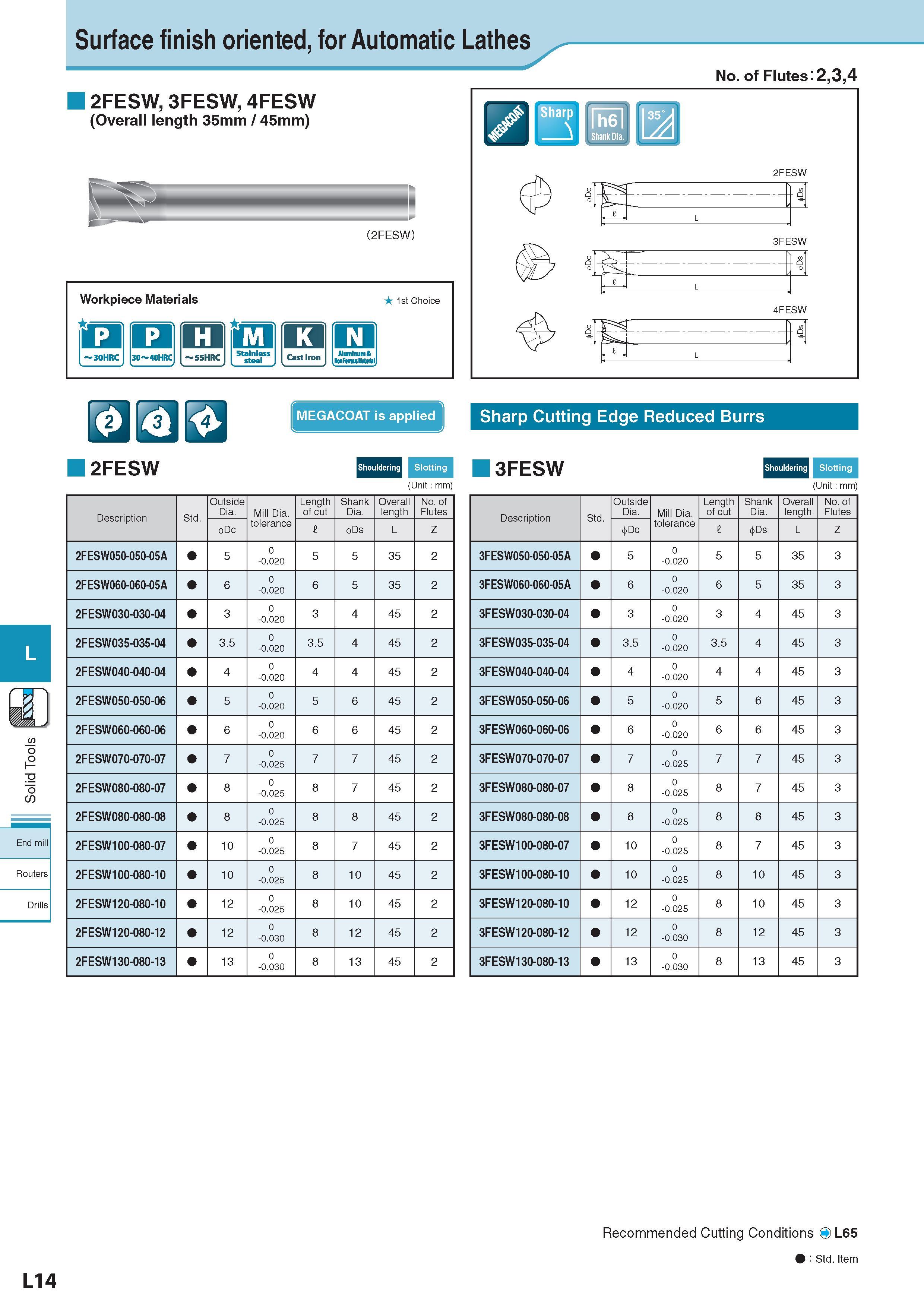

Surface finish oriented, for Automatic Lathes No. of Flutes: 2,3,4 2FESW, 3FESW, 4FESW (Overall length 35mm / 45mm) (2FESW) Workpiece Materials Обрабатываемые материалы 1st Choice Stainless steel m MEGACOAT is applied 2FESW Shouldering Slotting (Unit : mm) Sharp Cutting Edge Reduced Burrs 3FESW Shouldering Slotting (Unit : mm) End mill Routers Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 2FESW050-050-05A 5 0 -0.020 5 5 35 2 2FESW060-060-05A 6 0 -0.020 6 5 35 2 2FESW030-030-04 3 0 -0.020 3 4 45 2 2FESW035-035-04 3.5 0 -0.020 3.5 4 45 2 2FESW040-040-04 4 0 -0.020 4 4 45 2 2FESW050-050-06 5 0 -0.020 5 6 45 2 2FESW060-060-06 6 0 -0.020 6 6 45 2 2FESW070-070-07 7 0 -0.025 7 7 45 2 2FESW080-080-07 8 0 -0.025 8 7 45 2 2FESW080-080-08 8 0 -0.025 8 8 45 2 2FESW100-080-07 10 0 -0.025 8 7 45 2 2FESW100-080-10 10 0 -0.025 8 10 45 2 2FESW120-080-10 12 0 -0.025 8 10 45 2 2FESW120-080-12 12 0 -0.030 8 12 45 2 2FESW130-080-13 13 0 -0.030 8 13 45 2 Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 3FESW050-050-05A 5 0 -0.020 5 5 35 3 3FESW060-060-05A 6 0 -0.020 6 5 35 3 3FESW030-030-04 3 0 -0.020 3 4 45 3 3FESW035-035-04 3.5 0 -0.020 3.5 4 45 3 3FESW040-040-04 4 0 -0.020 4 4 45 3 3FESW050-050-06 5 0 -0.020 5 6 45 3 3FESW060-060-06 6 0 -0.020 6 6 45 3 3FESW070-070-07 7 0 -0.025 7 7 45 3 3FESW080-080-07 8 0 -0.025 8 7 45 3 3FESW080-080-08 8 0 -0.025 8 8 45 3 3FESW100-080-07 10 0 -0.025 8 7 45 3 3FESW100-080-10 10 0 -0.025 8 10 45 3 3FESW120-080-10 12 0 -0.025 8 10 45 3 3FESW120-080-12 12 0 -0.030 8 12 45 3 3FESW130-080-13 13 0 -0.030 8 13 45 3 L14 Recommended Cutting Conditions Рекомендованные режимы резания на станках OL65 9 : Std. Item
