655 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L12

Каталог KYOCERA 2017 Инструмент режущий Стр. L12 0655 Lab2u

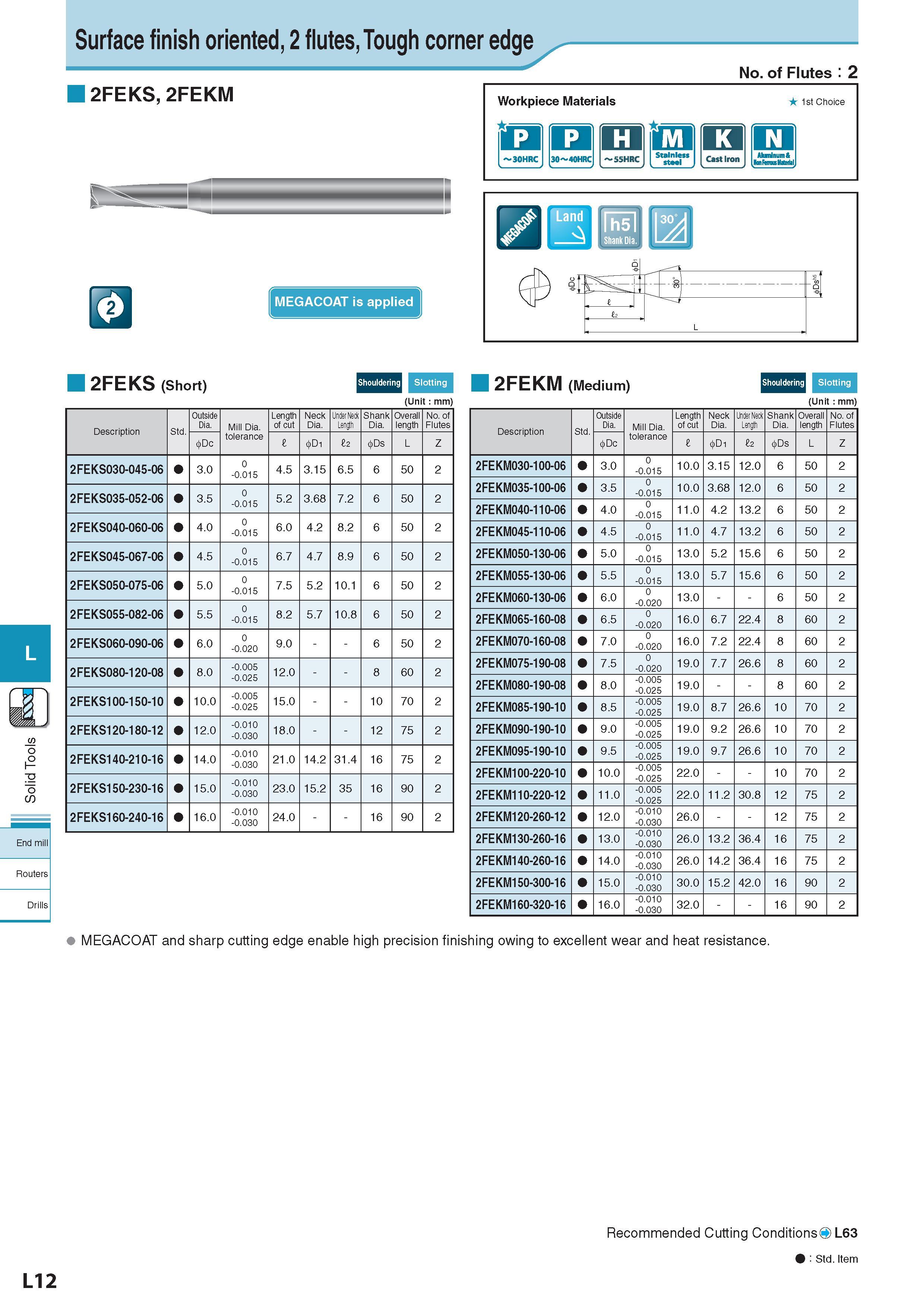

End mill Routers Drills L12 Surface finish oriented, 2 flutes, Tough corner edge 2FEKS, 2FEKM MEGACOAT is applied No. of Flutes : 2 2FEKS (Short) Shouldering Slotting (Unit : mm) 2FEKM (Medium) Shouldering Slotting (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes Dc I D1 12 Ds L Z 2FEKS030-045-06 3.0 0 -0.015 4.5 3.15 6.5 6 50 2 2FEKS035-052-06 3.5 0 -0.015 5.2 3.68 7.2 6 50 2 2FEKS040-060-06 4.0 0 -0.015 6.0 4.2 8.2 6 50 2 2FEKS045-067-06 4.5 0 -0.015 6.7 4.7 8.9 6 50 2 2FEKS050-075-06 5.0 0 -0.015 7.5 5.2 10.1 6 50 2 2FEKS055-082-06 5.5 0 -0.015 8.2 5.7 10.8 6 50 2 2FEKS060-090-06 6.0 0 -0.020 9.0 6 50 2 2FEKS080-120-08 8.0 -0.005 -0.025 12.0 8 60 2 2FEKS100-150-10 10.0 -0.005 -0.025 15.0 10 70 2 2FEKS120-180-12 12.0 -0.010 -0.030 18.0 12 75 2 2FEKS140-210-16 14.0 -0.010 -0.030 21.0 14.2 31.4 16 75 2 2FEKS150-230-16 15.0 -0.010 -0.030 23.0 15.2 35 16 90 2 2FEKS160-240-16 16.0 -0.010 -0.030 24.0 16 90 2 Description Обозначение Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes Dc I D1 12 Ds L Z 2FEKM030-100-06 3.0 0 -0.015 10.0 3.15 12.0 6 50 2 2FEKM035-100-06 3.5 0 -0.015 10.0 3.68 12.0 6 50 2 2FEKM040-110-06 4.0 0 -0.015 11.0 4.2 13.2 6 50 2 2FEKM045-110-06 4.5 0 -0.015 11.0 4.7 13.2 6 50 2 2FEKM050-130-06 5.0 0 -0.015 13.0 5.2 15.6 6 50 2 2FEKM055-130-06 5.5 0 -0.015 13.0 5.7 15.6 6 50 2 2FEKM060-130-06 6.0 0 -0.020 13.0 6 50 2 2FEKM065-160-08 6.5 0 -0.020 16.0 6.7 22.4 8 60 2 2FEKM070-160-08 7.0 0 -0.020 16.0 7.2 22.4 8 60 2 2FEKM075-190-08 7.5 0 -0.020 19.0 7.7 26.6 8 60 2 2FEKM080-190-08 8.0 -0.005 -0.025 19.0 8 60 2 2FEKM085-190-10 8.5 -0.005 -0.025 19.0 8.7 26.6 10 70 2 2FEKM090-190-10 9.0 -0.005 -0.025 19.0 9.2 26.6 10 70 2 2FEKM095-190-10 9.5 -0.005 -0.025 19.0 9.7 26.6 10 70 2 2FEKM100-220-10 10.0 -0.005 -0.025 22.0 10 70 2 2FEKM110-220-12 11.0 -0.005 -0.025 22.0 11.2 30.8 12 75 2 2FEKM120-260-12 12.0 -0.010 -0.030 26.0 12 75 2 2FEKM130-260-16 13.0 -0.010 -0.030 26.0 13.2 36.4 16 75 2 2FEKM140-260-16 14.0 -0.010 -0.030 26.0 14.2 36.4 16 75 2 2FEKM150-300-16 15.0 -0.010 -0.030 30.0 15.2 42.0 16 90 2 2FEKM160-320-16 16.0 -0.010 -0.030 32.0 16 90 2 MEGACOAT and sharp cutting edge enable high precision finishing owing to excellent wear and heat resistance. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L63 9 : Std. Item
