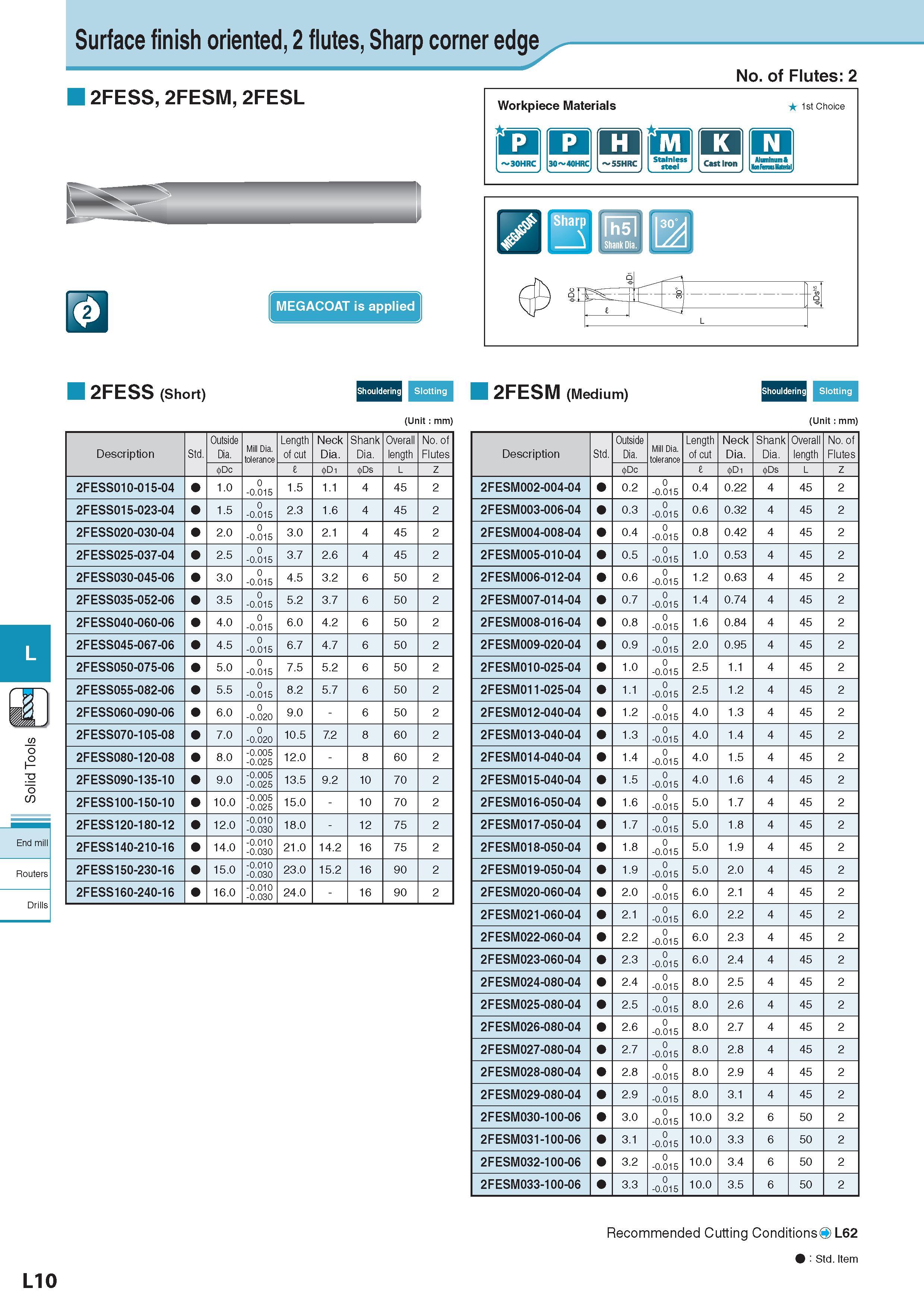

End mill Routers Surface finish oriented, 2 flutes, Sharp corner edge No. of Flutes: 2 2FESS, 2FESM, 2FESL MEGACOAT is applied Workpiece Materials Обрабатываемые материалы 1st Choice Stainless steel Shar I fhsl J I Shank Dia. c i - Ih- o O L 2FESS (Short) Shouldering Slotting 2FESM (Medium) Shouldering Slotting (Unit : mm) (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. Length of cut Neck Dia. Shank Dia. Overall length No. of Flutes Dc l D1 Ds L Z 2FESS010-015-04 1.0 0 -0.015 1.5 1.1 4 45 2 2FESS015-023-04 1.5 0 -0.015 2.3 1.6 4 45 2 2FESS020-030-04 2.0 0 -0.015 3.0 2.1 4 45 2 2FESS025-037-04 2.5 0 -0.015 3.7 2.6 4 45 2 2FESS030-045-06 3.0 0 -0.015 4.5 3.2 6 50 2 2FESS035-052-06 3.5 0 -0.015 5.2 3.7 6 50 2 2FESS040-060-06 4.0 0 -0.015 6.0 4.2 6 50 2 2FESS045-067-06 4.5 0 -0.015 6.7 4.7 6 50 2 2FESS050-075-06 5.0 0 -0.015 7.5 5.2 6 50 2 2FESS055-082-06 5.5 0 -0.015 8.2 5.7 6 50 2 2FESS060-090-06 6.0 0 -0.020 9.0 - 6 50 2 2FESS070-105-08 7.0 0 -0.020 10.5 7.2 8 60 2 2FESS080-120-08 8.0 -0.005 -0.025 12.0 - 8 60 2 2FESS090-135-10 9.0 -0.005 -0.025 13.5 9.2 10 70 2 2FESS100-150-10 10.0 -0.005 -0.025 15.0 - 10 70 2 2FESS120-180-12 12.0 -0.010 -0.030 18.0 - 12 75 2 2FESS140-210-16 14.0 -0.010 -0.030 21.0 14.2 16 75 2 2FESS150-230-16 15.0 -0.010 -0.030 23.0 15.2 16 90 2 2FESS160-240-16 16.0 -0.010 -0.030 24.0 - 16 90 2 Description Обозначение Std. Outside Dia. Mill Dia. Length of cut Neck Dia. Shank Dia. Overall length No. of Flutes Dc l D1 Ds L Z 2FESM002-004-04 0.2 0 -0.015 0.4 0.22 4 45 2 2FESM003-006-04 0.3 0 -0.015 0.6 0.32 4 45 2 2FESM004-008-04 0.4 0 -0.015 0.8 0.42 4 45 2 2FESM005-010-04 0.5 0 -0.015 1.0 0.53 4 45 2 2FESM006-012-04 0.6 0 -0.015 1.2 0.63 4 45 2 2FESM007-014-04 0.7 0 -0.015 1.4 0.74 4 45 2 2FESM008-016-04 0.8 0 -0.015 1.6 0.84 4 45 2 2FESM009-020-04 0.9 0 -0.015 2.0 0.95 4 45 2 2FESM010-025-04 1.0 0 -0.015 2.5 1.1 4 45 2 2FESM011-025-04 1.1 0 -0.015 2.5 1.2 4 45 2 2FESM012-040-04 1.2 0 -0.015 4.0 1.3 4 45 2 2FESM013-040-04 1.3 0 -0.015 4.0 1.4 4 45 2 2FESM014-040-04 1.4 0 -0.015 4.0 1.5 4 45 2 2FESM015-040-04 1.5 0 -0.015 4.0 1.6 4 45 2 2FESM016-050-04 1.6 0 -0.015 5.0 1.7 4 45 2 2FESM017-050-04 1.7 0 -0.015 5.0 1.8 4 45 2 2FESM018-050-04 1.8 0 -0.015 5.0 1.9 4 45 2 2FESM019-050-04 1.9 0 -0.015 5.0 2.0 4 45 2 2FESM020-060-04 2.0 0 -0.015 6.0 2.1 4 45 2 2FESM021-060-04 2.1 0 -0.015 6.0 2.2 4 45 2 2FESM022-060-04 2.2 0 -0.015 6.0 2.3 4 45 2 2FESM023-060-04 2.3 0 -0.015 6.0 2.4 4 45 2 2FESM024-080-04 2.4 0 -0.015 8.0 2.5 4 45 2 2FESM025-080-04 2.5 0 -0.015 8.0 2.6 4 45 2 2FESM026-080-04 2.6 0 -0.015 8.0 2.7 4 45 2 2FESM027-080-04 2.7 0 -0.015 8.0 2.8 4 45 2 2FESM028-080-04 2.8 0 -0.015 8.0 2.9 4 45 2 2FESM029-080-04 2.9 0 -0.015 8.0 3.1 4 45 2 2FESM030-100-06 3.0 0 -0.015 10.0 3.2 6 50 2 2FESM031-100-06 3.1 0 -0.015 10.0 3.3 6 50 2 2FESM032-100-06 3.2 0 -0.015 10.0 3.4 6 50 2 2FESM033-100-06 3.3 0 -0.015 10.0 3.5 6 50 2 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L62 9 : Std. Item Стандартная позиция L10
