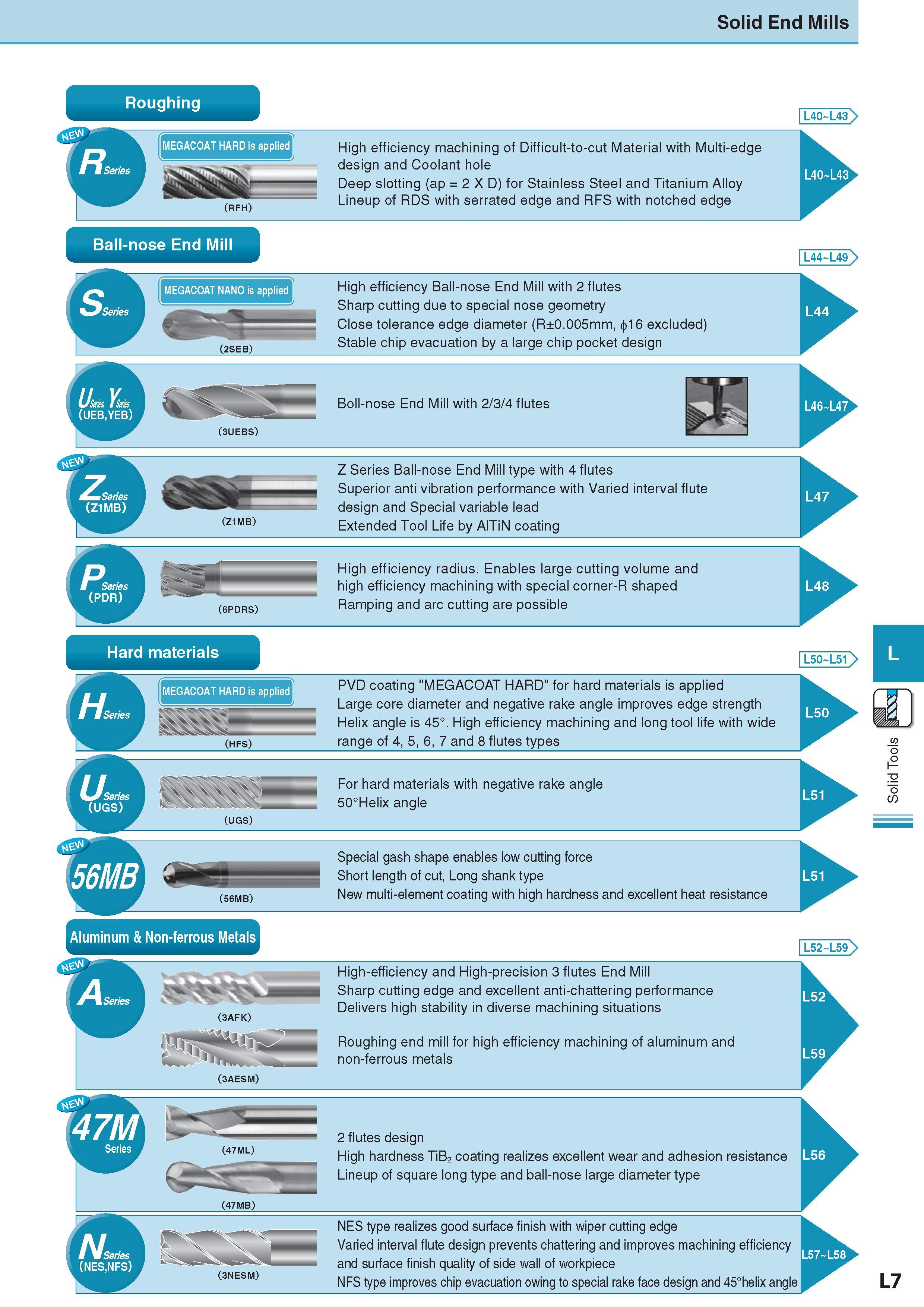

Solid End Mills Roughing L40 L43> MEGACOAT HARD is applied (RFH) High efficiency machining of Difficult-to-cut Material with Multi-edge design and Coolant hole Deep slotting (ap = 2 X D) for Stainless Steel and Titanium Alloy Lineup of RDS with serrated edge and RFS with notched edge Ball-nose End Mill L44 L49 > High efficiency Ball-nose End Mill with 2 flutes Sharp cutting due to special nose geometry Close tolerance edge diameter (R±0.005mm, < )16 excluded) Stable chip evacuation by a large chip pocket design Hard materials L50 L51> PVD coating "MEGACOAT HARD" for hard materials is applied Large core diameter and negative rake angle improves edge strength Helix angle is 45°. High efficiency machining and long tool life with wide range of 4, 5, 6, 7 and 8 flutes types For hard materials with negative rake angle 50°Helix angle (56MB) Special gash shape enables low cutting force Short length of cut, Long shank type New multi-element coating with high hardness and excellent heat resistance Aluminum & Non-ferrous Metals (3AFK) IMS (3AESM) High-efficiency and High-precision 3 flutes End Mill Sharp cutting edge and excellent anti-chattering performance Delivers high stability in diverse machining situations Roughing end mill for high efficiency machining of aluminum and non-ferrous metals (3NESM) NES type realizes good surface finish with wiper cutting edge Varied interval flute design prevents chattering and improves machining efficiency and surface finish quality of side wall of workpiece NFS type improves chip evacuation owing to special rake face design and 45°helix angle L52 L59> L7 Solid Tools
