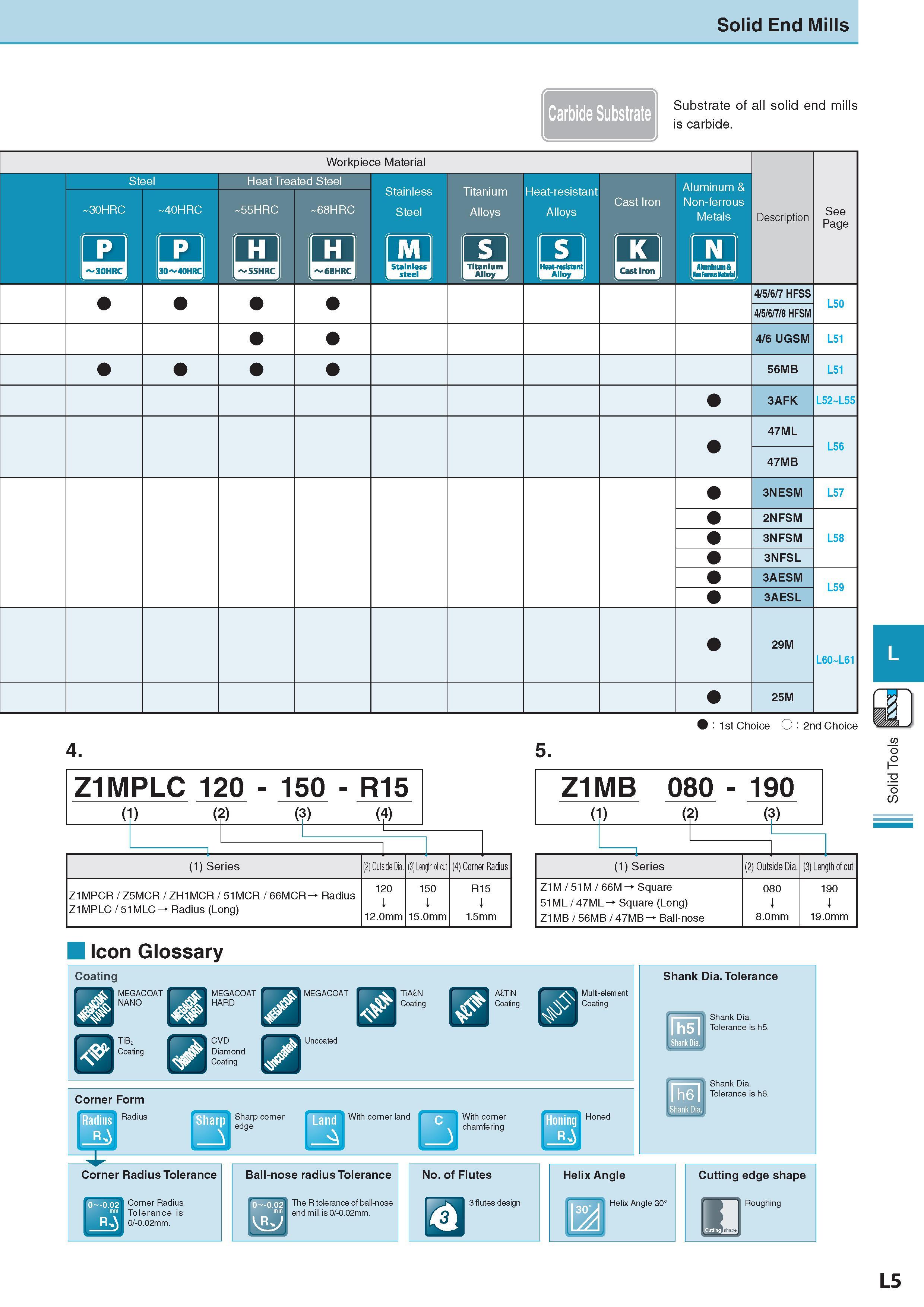

Solid End Mills Carbide Substrate Substrate of all solid end mills is carbide. Workpiece Material Обрабатываемый материал Steel 30HRC 40HRC Heat Treated Steel 55HRC 68HRC Stainless Steel Titanium Heat-resistant Alloys Alloys Cast Iron Aluminum & Non-ferrous Metals Description Обозначение 45/6/7 HFSS 4/5/6/7/8 HFSM See Page L50 4/6 UGSM L51 56MB L51 3AFK L52 L55 47ML L56 47MB 3NESM L57 2NFSM 3NFSM L58 3NFSL 3AESM 3AESL L59 29M L60 L61 25M : 1st Choice O : 2nd Choice 4. 5. Z1MPLC 120 - 150 - R15 (1) (2) (3) Z1MB 080 - 190 (1) (2) (3) (1) Series (2) Outside Dia. (3) Length of cut (4) Corner Radius Z1MPCR / Z5MCR / ZH1MCR / 51MCR / 66MCR Radius Z1MPLC / 51MLC Radius (Long) 120 i 12.0mm 150 i 15.0mm R15 i 1.5mm (1) Series (2) Outside Dia. (3) Length of cut Z1M / 51M / 66M Square 51ML / 47ML Square (Long) Z1MB / 56MB / 47MB Ball-nose 080 i 8.0mm 190 i 19.0mm Icon Glossary Coating MEGACOAT f 'I MEGACOAT NANO HARD f 'j CVD Diamond Coating TAIN Coating AETiN Coating i Multi-element Coating Uncoated Corner Form Radius R- Radius Sharp Sharp corner edge Land With corner land C With corner chamfering Honing r4 Shank Dia. Tolerance Shank Dia. Tolerance is h5. Shank Dia. Tolerance is h6. Corner Radius Tolerance Corner Radius Tolerance is 0/-0.02mm. Ball-nose radius Tolerance The R tolerance of ball-nose end mill is 0/-0.02mm. No. of Flutes 3 flutes design Helix Angle Helix Angle 30° Cutting edge shape Roughing MEGACOAT Honed 0 0.02 L5 Solid Tools
