649 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L6

Каталог KYOCERA 2017 Инструмент режущий Стр. L6 0649 Lab2u

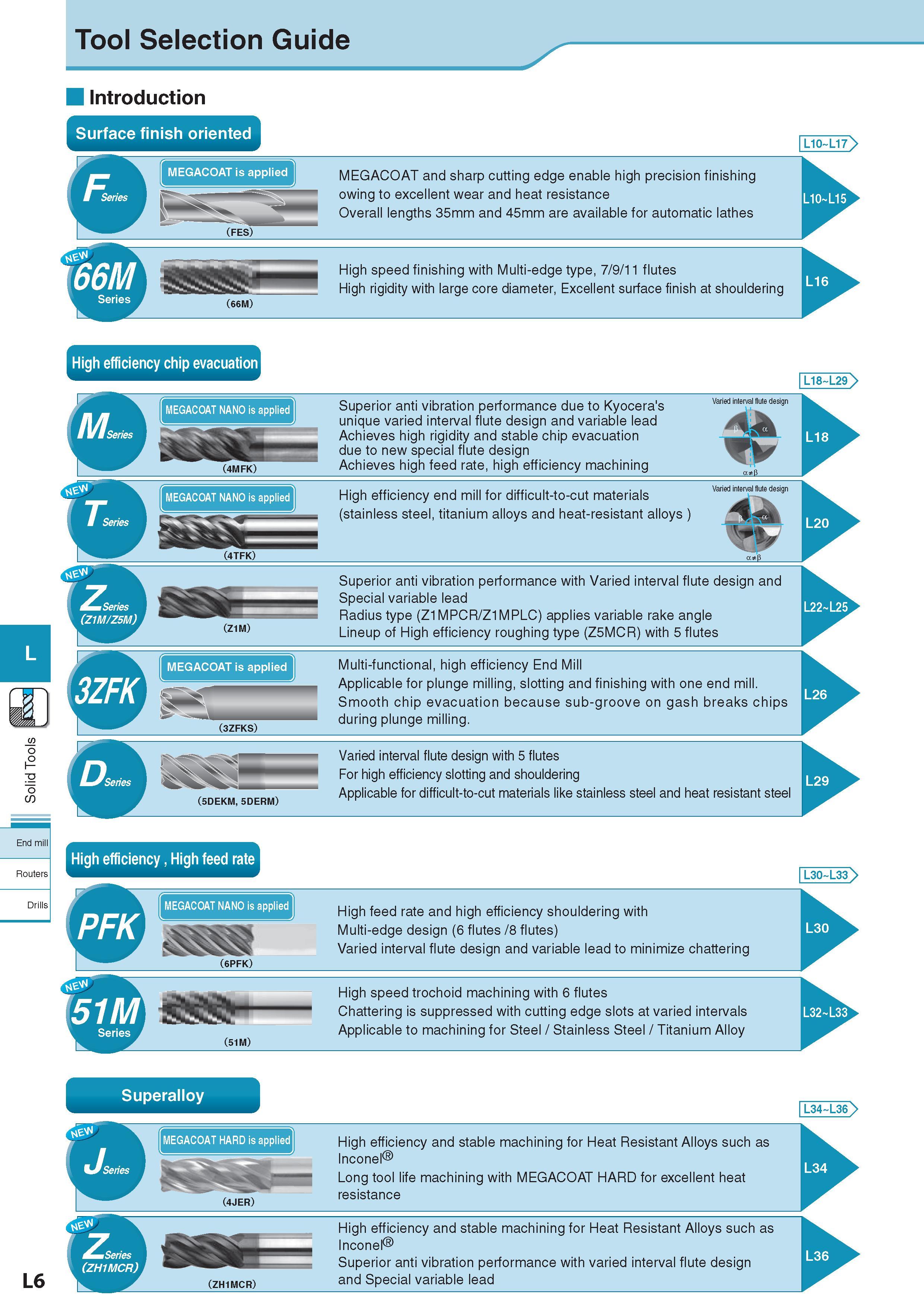

Tool Selection Guide End mill Routers Drills L6 Introduction Surface finish oriented MEGACOAT and sharp cutting edge enable high precision finishing owing to excellent wear and heat resistance Overall lengths 35mm and 45mm are available for automatic lathes High speed finishing with Multi-edge type, 7/9/11 flutes High rigidity with large core diameter, Excellent surface finish at shouldering L10 L17> L10 L15 L16 High efficiency chip evacuation (4MFK) L18 L29 > Superior anti vibration performance due to Kyocera's unique varied interval flute design and variable lead Achieves high rigidity and stable chip evacuation due to new special flute design Achieves high feed rate, high efficiency machining MEGACOAT NANO is applied High efficiency end mill for difficult-to-cut materials (stainless steel, titanium alloys and heat-resistant alloys ) (4TFK) Superior anti vibration performance with Varied interval flute design and Special variable lead Radius type (Z1MPCR/Z1MPLC) applies variable rake angle Lineup of High efficiency roughing type (Z5MCR) with 5 flutes (3ZFKS) Multi-functional, high efficiency End Mill Applicable for plunge milling, slotting and finishing with one end mill. Smooth chip evacuation because sub-groove on gash breaks chips during plunge milling. (5DEKM, 5DERM) Varied interval flute design with 5 flutes For high efficiency slotting and shouldering Applicable for difficult-to-cut materials like stainless steel and heat resistant steel High efficiency, High feed rate W MEGACOAT NANO is applied (6PFK) High feed rate and high efficiency shouldering with Multi-edge design (6 flutes /8 flutes) Varied interval flute design and variable lead to minimize chattering L30 L33> L30 (51M) High speed trochoid machining with 6 flutes Chattering is suppressed with cutting edge slots at varied intervals Applicable to machining for Steel / Stainless Steel / Titanium Alloy L32 L3 Superalloy (4JER) High efficiency and stable machining for Heat Resistant Alloys such as Inconel Long tool life machining with MEGACOAT HARD for excellent heat resistance (ZH1MCR) High efficiency and stable machining for Heat Resistant Alloys such as Inconel Superior anti vibration performance with varied interval flute design and Special variable lead L34 L36> L36
