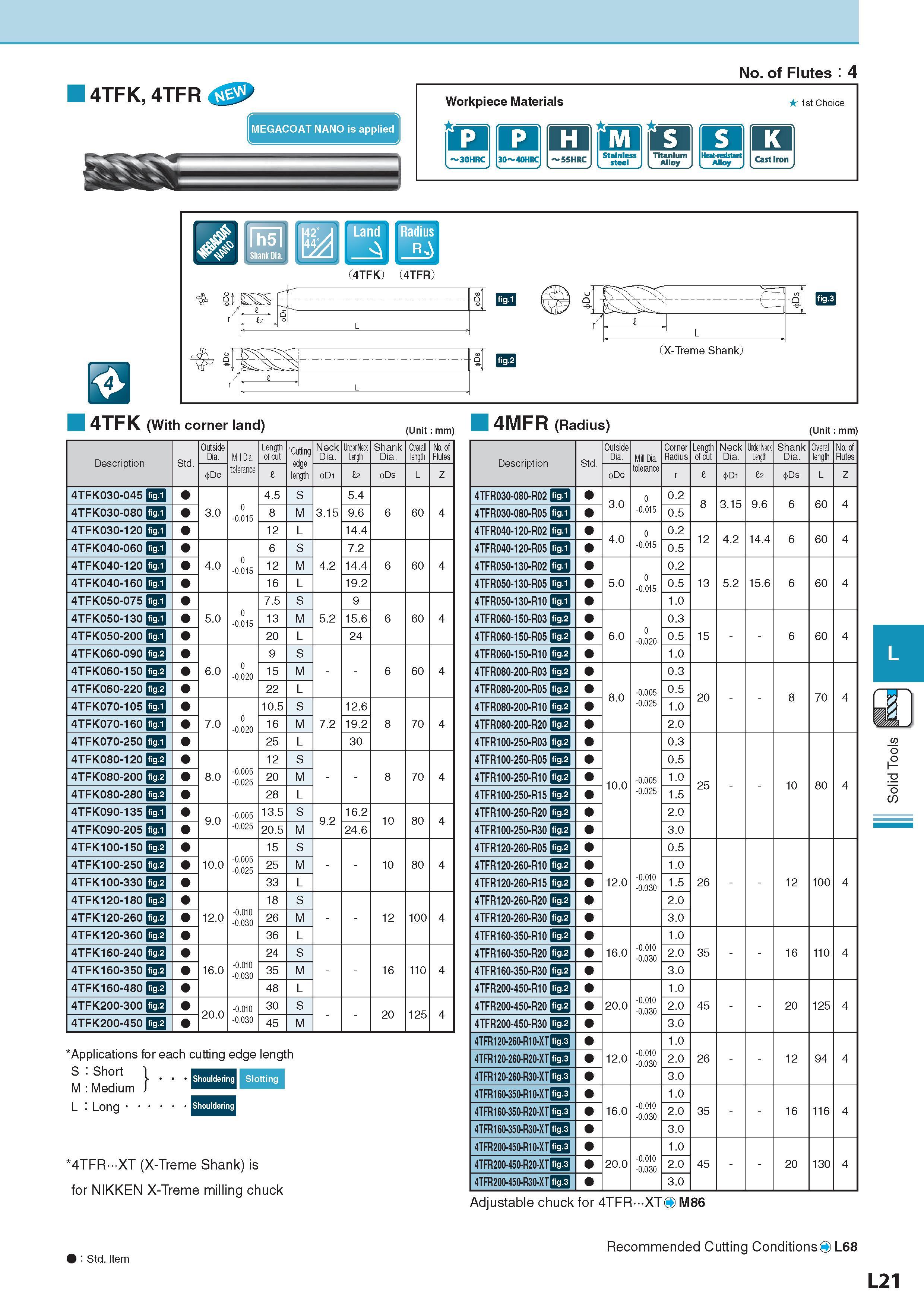

4TFK, 4TFR No. of Flutes : 4 Workpiece Materials Обрабатываемые материалы 1st Choice MEGACOAT NANO is applied an r H 1 55HRCJ aa Stainless Titanium steel I Alloy Alloy 4TFK (With corner land) (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut ‘Cutting edge length Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes Dc I D1 £2 Ds L Z 4TFK030-045 fig.1 3.0 0 -0.015 4.5 S 3.15 5.4 6 60 4 4TFK030-080 fig.1 8 M 9.6 4TFK030-120 fig.1 12 L 14.4 4TFK040-060 fig.1 4.0 0 -0.015 6 S 4.2 7.2 6 60 4 4TFK040-120 fig.1 12 M 14.4 4TFK040-160 fig.1 16 L 19.2 4TFK050-075 fig.1 5.0 0 -0.015 7.5 S 5.2 9 6 60 4 4TFK050-130 fig.1 13 M 15.6 4TFK050-200 fig.1 20 L 24 4TFK060-090 fig.2 6.0 0 -0.020 9 S 6 60 4 4TFK060-150 fig.2 15 M 4TFK060-220 fig.2 22 L 4TFK070-105 fig.1 7.0 0 -0.020 10.5 S 7.2 12.6 8 70 4 4TFK070-160 fig.1 16 M 19.2 4TFK070-250 fig.1 25 L 30 4TFK080-120 fig.2 8.0 -0.005 -0.025 12 S 8 70 4 4TFK080-200 fig.2 20 M 4TFK080-280 fig.2 28 L 4TFK090-135 fig.1 9.0 -0.005 -0.025 13.5 S 9.2 16.2 10 80 4 4TFK090-205 fig.1 20.5 M 24.6 4TFK100-150 fig.2 10.0 -0.005 -0.025 15 S 10 80 4 4TFK100-250 fig.2 25 M 4TFK100-330 fig.2 33 L 4TFK120-180 fig.2 12.0 -0.010 -0.030 18 S 12 100 4 4TFK120-260 fig.2 26 M 4TFK120-360 fig.2 36 L 4TFK160-240 fig.2 16.0 -0.010 -0.030 24 S 16 110 4 4TFK160-350 fig.2 35 M 4TFK160-480 fig.2 48 L 4TFK200-300 fig.2 20.0 -0.010 -0.030 30 S 20 125 4 4TFK200-450 fig.2 45 M Applications for each cutting edge length S : Short 1 M : Medium ) L : Long Shouldering Slotting Shouldering 4TFR-XT (X-Treme Shank) is for NIKKEN X-Treme milling chuck 4MFR (Radius) (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. Corner Radius Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes Dc tolerance r I D1 £2 Ds L Z 4TFR030-080-R02 fig.1 3.0 0 0.2 8 3.15 9.6 6 60 4 4TFR030-080-R05 fig.1 -0.015 0.5 4TFR040-120-R02 fig.1 4.0 0 0.2 12 4.2 14.4 6 60 4 4TFR040-120-R05 fig.1 -0.015 0.5 4TFR050-130-R02 fig.1 0 -0.015 0.2 4TFR050-130-R05 fig.1 5.0 0.5 13 5.2 15.6 6 60 4 4TFR050-130-R10 fig.1 1.0 4TFR060-150-R03 fig.2 0 -0.020 0.3 4TFR060-150-R05 fig.2 6.0 0.5 15 6 60 4 4TFR060-150-R10 fig.2 1.0 4TFR080-200-R03 fig.2 0.3 4TFR080-200-R05 fig.2 8.0 -0.005 0.5 20 8 70 4 4TFR080-200-R10 fig.2 -0.025 1.0 4TFR080-200-R20 fig.2 2.0 4TFR100-250-R03 fig.2 0.3 4TFR100-250-R05 fig.2 0.5 4TFR100-250-R10 fig.2 10.0 -0.005 1.0 25 10 80 4 4TFR100-250-R15 fig.2 -0.025 1.5 4TFR100-250-R20 fig.2 2.0 4TFR100-250-R30 fig.2 3.0 4TFR120-260-R05 fig.2 0.5 4TFR120-260-R10 fig.2 1.0 4TFR120-260-R15 fig.2 12.0 -0.010 -0.030 1.5 26 12 100 4 4TFR120-260-R20 fig.2 2.0 4TFR120-260-R30 fig.2 3.0 4TFR160-350-R10 fig.2 1.0 4TFR160-350-R20 fig.2 16.0 -0.010 -0.030 2.0 35 16 110 4 4TFR160-350-R30 fig.2 3.0 4TFR200-450-R10 fig.2 -0.010 -0.030 1.0 4TFR200-450-R20 fig.2 20.0 2.0 45 20 125 4 4TFR200-450-R30 fig.2 3.0 4TFR120-260-R10-XT fig.3 -0.010 -0.030 1.0 4TFR120-260-R20-XT fig.3 12.0 2.0 26 12 94 4 4TFR120-260-R30-XT fig.3 3.0 4TFR160-350-R10-XT fig.3 1.0 4TFR160-350-R20-XT fig.3 16.0 -0.010 -0.030 2.0 35 16 116 4 4TFR160-350-R30-XT fig.3 3.0 4TFR200-450-R10-XT fig.3 -0.010 -0.030 1.0 4TFR200-450-R20-XT fig.3 20.0 2.0 45 20 130 4 4TFR200-450-R30-XT fig.3 3.0 Adjustable chuck for 4TFR XTO M86 9 : Std. Item Стандартная позиция Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L68 L21 Solid Tools
