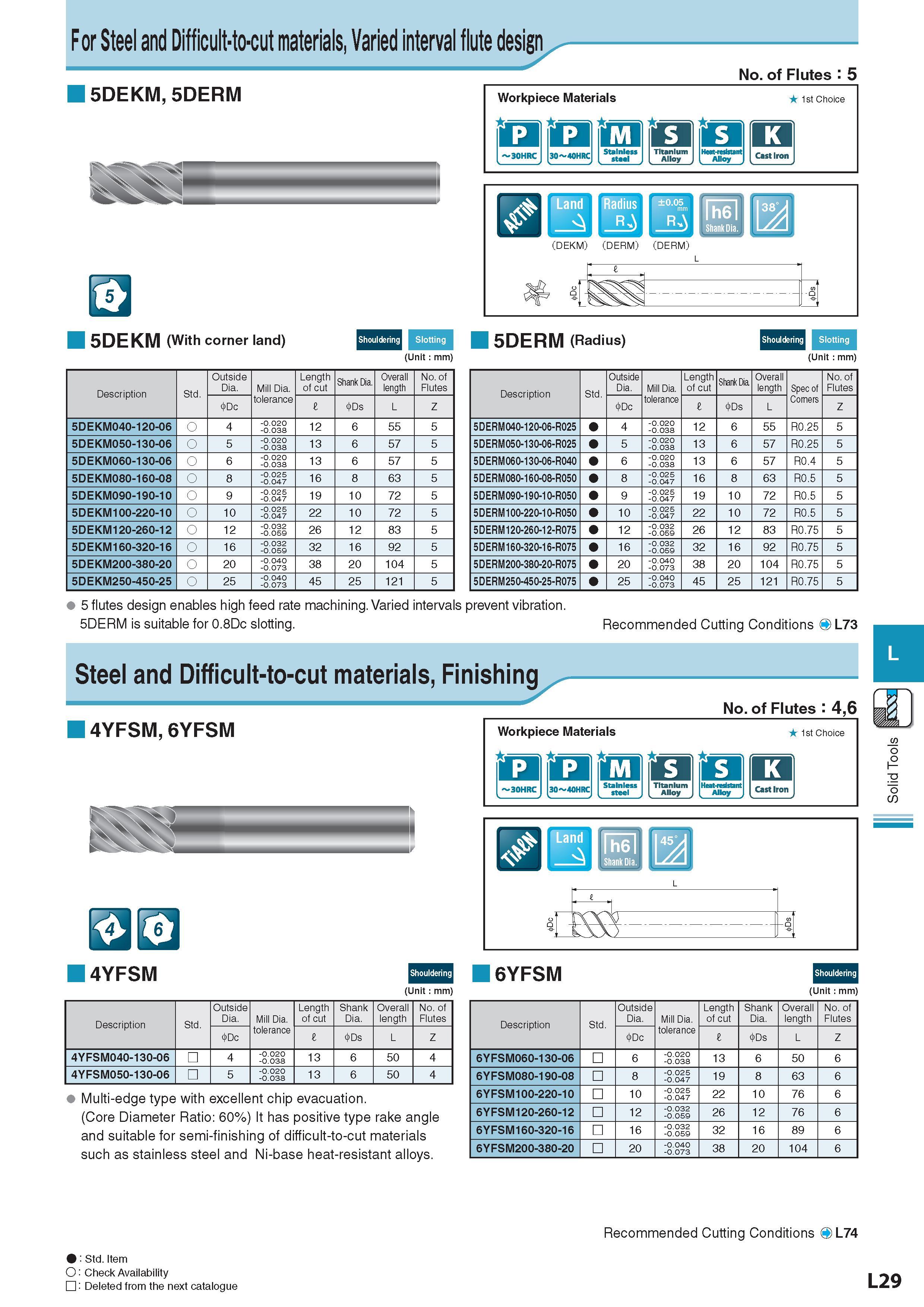

For Steel and Difficult-to-cut materials, Varied interval flute design 5DEKM, 5DERM m 5DEKM (With corner land) Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes < >Dc I < >Ds L Z 5DEKM040-120-06 Q 4 -0.020 -0.038 12 6 55 5 5DEKM050-130-06 Q 5 -0.020 -0.038 13 6 57 5 5DEKM060-130-06 Q 6 -0.020 -0.038 13 6 57 5 5DEKM080-160-08 Q 8 -0.025 -0.047 16 8 63 5 5DEKM090-190-10 Q 9 -0.025 -0.047 19 10 72 5 5DEKM100-220-10 Q 10 -0.025 -0.047 22 10 72 5 5DEKM120-260-12 Q 12 -0.032 -0.059 26 12 83 5 5DEKM160-320-16 Q 16 -0.032 -0.059 32 16 92 5 5DEKM200-380-20 Q 20 -0.040 -0.073 38 20 104 5 5DEKM250-450-25 Q 25 -0.040 -0.073 45 25 121 5 No. of Flutes : 5 Workpiece Materials Обрабатываемые материалы 1st Choice I A.Mui>f Stainless Titanium ........ 30HRC 3O 40HRC staa) Alloy Alloy vSkl Land I Radi r t (DERM) (DERM) L ' I -qJ Shouldering Slotting (Unit : mm) 5DERM (Radius) Shouldering Slotting (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia Overall length Spec of Comers No. of Flutes < >Dc I < >Ds L Z 5DERM040-120-06-R025 4 -0.020 -0.038 12 6 55 R0.25 5 5DERM050-130-06-R025 5 -0.020 -0.038 13 6 57 R0.25 5 5DERM060-130-06-R040 6 -0.020 -0.038 13 6 57 R0.4 5 5DERM080-160-08-R050 8 -0.025 -0.047 16 8 63 R0.5 5 5DERM090-190-10-R050 9 -0.025 -0.047 19 10 72 R0.5 5 5DERM100-220-10-R050 10 -0.025 -0.047 22 10 72 R0.5 5 5DERM120-260-12-R075 12 -0.032 -0.059 26 12 83 R0.75 5 5DERM160-320-16-R075 16 -0.032 -0.059 32 16 92 R0.75 5 5DERM200-380-20-R075 20 -0.040 -0.073 38 20 104 R0.75 5 5DERM250-450-25-R075 25 -0.040 -0.073 45 25 121 R0.75 5 5 flutes design enables high 5DERM is suitable for 0.8Dc feed rate machining. Varied intervals prevent vibration. slotting. Recommended Cutting Conditions Рекомендованные режимы резания на станках OL73 Steel and Difficult-to-cut materials, Finishing 4YFSM, 6YFSM 4YFSM No. of Flutes : 4,6 Workpiece Materials Обрабатываемые материалы iniifliimiiBiiB 1st Choice Stainless steel Titanium Alloy Alloy xp L”Sl rsei X I 3 I Shank Dia. -1 6YFSM (Unit : mm) (Unit : mm) L Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes < >Dc I Ds L Z 4YFSM040-130-06 4 -0.020 -0.038 13 6 50 4 4YFSM050-130-06 5 -0.020 -0.038 13 6 50 4 Multi-edge type with excellent chip evacuation. (Core Diameter Ratio: 60%) It has positive type rake angle and suitable for semi-finishing of difficult-to-cut materials such as stainless steel and Ni-base heat-resistant alloys. Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes < >Dc I < >Ds L Z 6YFSM060-130-06 6 -0.020 -0.038 13 6 50 6 6YFSM080-190-08 8 -0.025 -0.047 19 8 63 6 6YFSM100-220-10 10 -0.025 -0.047 22 10 76 6 6YFSM120-260-12 12 -0.032 -0.059 26 12 76 6 6YFSM160-320-16 16 -0.032 -0.059 32 16 89 6 6YFSM200-380-20 20 -0.040 -0.073 38 20 104 6 Recommended Cutting Conditions Рекомендованные режимы резания на станках OL74 9: Std. Item Q: Check Availability : Deleted from the next catalogue Указанная позиция будет удалена в следующем каталоге L29 Solid Tools
