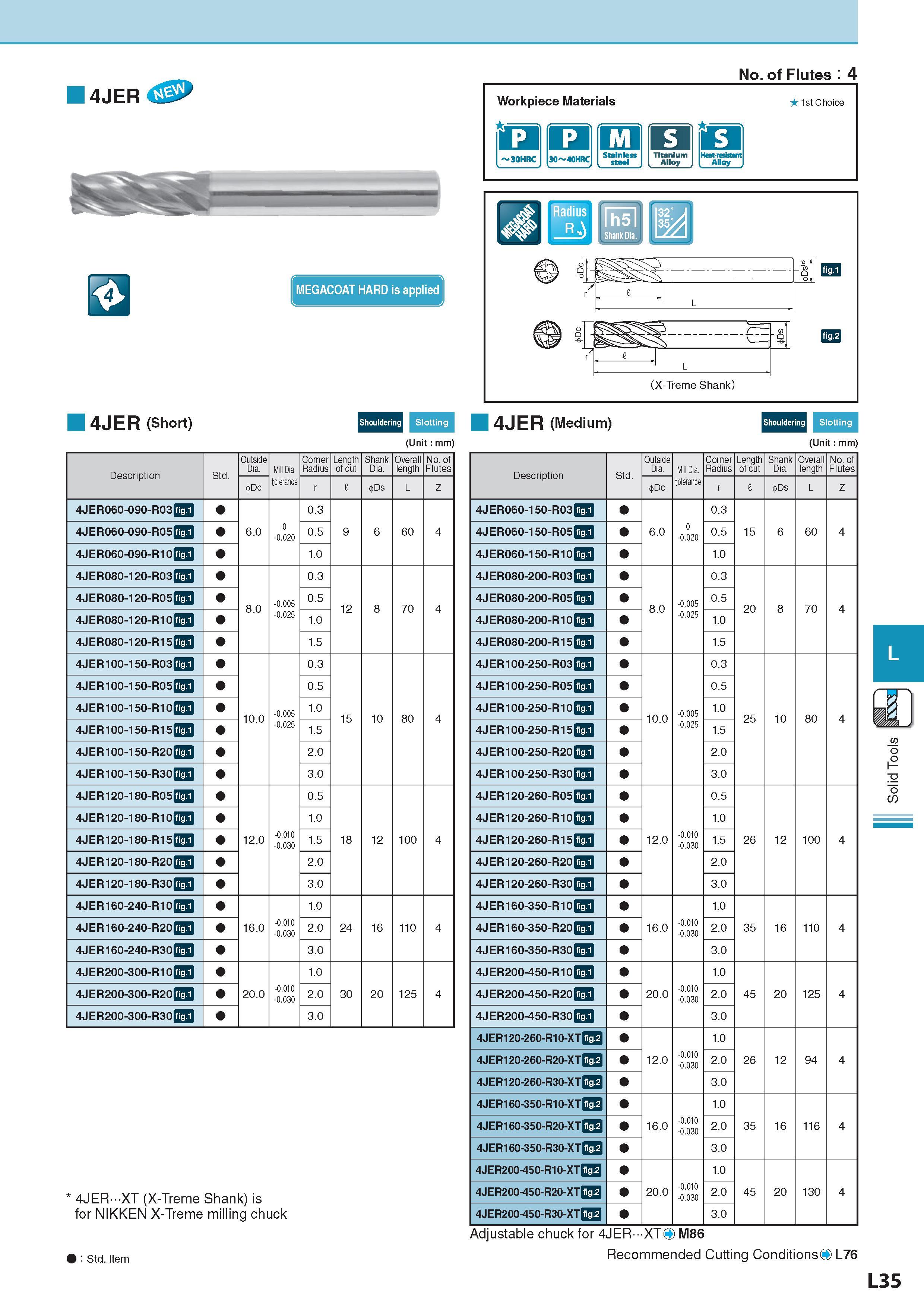

4jer<£5> 4JER (Short) MEGACOAT HARD is applied No. of Flutes : 4 Workpiece Materials Обрабатываемые материалы 1st Choice a D Bui m 30HRC 30 40HRC Stainless StMl Titanium Alloy Heat-resistant Alloy Shouldering Slotting (Unit : mm) 4JER (Medium) Shouldering Slotting (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. Corner Radius Length of cut Shank Dia. Overall length No. of Flutes Dc tolerance r I Ds L Z 4JER060-090-R03 fig.1 0.3 4JER060-090-R05 fig.1 6.0 0 -0.020 0.5 9 6 60 4 4JER060-090-R10 fig.1 1.0 4JER080-120-R03 fig.1 0.3 4JER080-120-R05 fig.1 8.0 -0.005 0.5 12 8 70 4 4JER080-120-R10 fig.1 -0.025 1.0 4JER080-120-R15 fig.1 1.5 4JER100-150-R03 fig.1 0.3 4JER100-150-R05 fig.1 0.5 4JER100-150-R10 fig.1 10.0 -0.005 1.0 15 10 80 4 4JER100-150-R15 fig.1 -0.025 1.5 4JER100-150-R20 fig.1 2.0 4JER100-150-R30 fig.1 3.0 4JER120-180-R05 fig.1 0.5 4JER120-180-R10 fig.1 1.0 4JER120-180-R15 fig.1 12.0 -0.010 -0.030 1.5 18 12 100 4 4JER120-180-R20 fig.1 2.0 4JER120-180-R30 fig.1 3.0 4JER160-240-R10 fig.1 1.0 4JER160-240-R20 fig.1 16.0 -0.010 -0.030 2.0 24 16 110 4 4JER160-240-R30 fig.1 3.0 4JER200-300-R10 fig.1 1.0 4JER200-300-R20 fig.1 20.0 -0.010 -0.030 2.0 30 20 125 4 4JER200-300-R30 fig.1 3.0 1 4JER XT (X-Treme Shank) is for NIKKEN X-Treme milling chuck Description Обозначение Std. Outside Dia. Mill Dia. Corner Radius Length of cut Shank Dia. Overall length No. of Flutes Dc tolerance r I Ds L Z 4JER060-150-R03 fig.1 0.3 4JER060-150-R05 fig.1 6.0 0 -0.020 0.5 15 6 60 4 4JER060-150-R10 fig.1 1.0 4JER080-200-R03 fig.1 0.3 4JER080-200-R05 fig.1 8.0 -0.005 0.5 20 8 70 4 4JER080-200-R10 fig.1 -0.025 1.0 4JER080-200-R15 fig.1 1.5 4JER100-250-R03 fig.1 0.3 4JER100-250-R05 fig.1 0.5 4JER100-250-R10 fig.1 10.0 -0.005 1.0 25 10 80 4 4JER100-250-R15 fig.1 -0.025 1.5 4JER100-250-R20 fig.1 2.0 4JER100-250-R30 fig.1 3.0 4JER120-260-R05 fig.1 0.5 4JER120-260-R10 fig.1 1.0 4JER120-260-R15 fig.1 12.0 -0.010 -0.030 1.5 26 12 100 4 4JER120-260-R20 fig.1 2.0 4JER120-260-R30 fig.1 3.0 4JER160-350-R10 fig.1 1.0 4JER160-350-R20 fig.1 16.0 -0.010 -0.030 2.0 35 16 110 4 4JER160-350-R30 fig.1 3.0 4JER200-450-R10 fig.1 1.0 4JER200-450-R20 fig.1 20.0 -0.010 -0.030 2.0 45 20 125 4 4JER200-450-R30 fig.1 3.0 4JER120-260-R10-XT fig.2 1.0 4JER120-260-R20-XT fig.2 12.0 -0.010 -0.030 2.0 26 12 94 4 4JER120-260-R30-XT fig.2 3.0 4JER160-350-R10-XT fig.2 1.0 4JER160-350-R20-XT fig.2 16.0 -0.010 -0.030 2.0 35 16 116 4 4JER160-350-R30-XT fig.2 3.0 4JER200-450-R10-XT fig.2 1.0 4JER200-450-R20-XT fig.2 20.0 -0.010 -0.030 2.0 45 20 130 4 4JER200-450-R30-XT fig.2 3.0 0 : Std. Item Стандартная позиция Adjustable chuck for 4JER XTO M86 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L76 L35 Solid Tools
