679 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L36

Каталог KYOCERA 2017 Инструмент режущий Стр. L36 0679 Lab2u

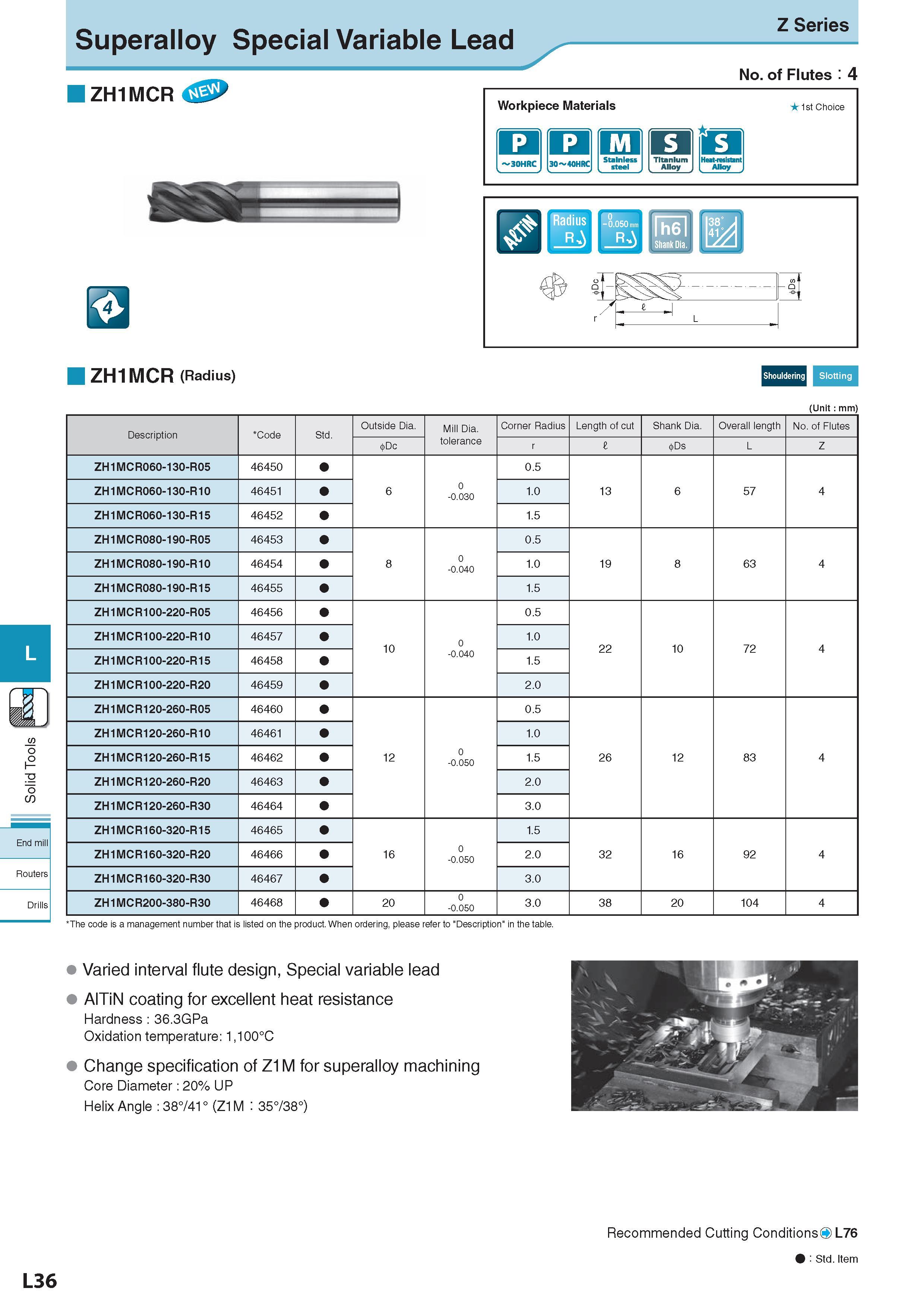

End mill Routers Drills L36 Superalloy Special Variable Lead ZH1MCR Z Series No. of Flutes : 4 Workpiece Materials Обрабатываемые материалы 30HRC 30 40 HRC Titanium i Alloy ZH1MCR (Radius) 1st Choice Shouldering Slotting (Unit : mm) Description Обозначение Code Std. Outside Dia. Mill Dia. Corner Radius Length of cut Shank Dia. Overall length No. of Flutes Dc tolerance r I Ds L Z ZH1MCR060-130-R05 46450 0.5 ZH1MCR060-130-R10 46451 6 0 -0.030 1.0 13 6 57 4 ZH1MCR060-130-R15 46452 1.5 ZH1MCR080-190-R05 46453 0.5 ZH1MCR080-190-R10 46454 8 0 -0.040 1.0 19 8 63 4 ZH1MCR080-190-R15 46455 1.5 ZH1MCR100-220-R05 46456 0.5 ZH1MCR100-220-R10 46457 10 0 1.0 22 10 72 4 ZH1MCR100-220-R15 46458 -0.040 1.5 ZH1MCR100-220-R20 46459 2.0 ZH1MCR120-260-R05 46460 0.5 ZH1MCR120-260-R10 46461 1.0 ZH1MCR120-260-R15 46462 12 0 -0.050 1.5 26 12 83 4 ZH1MCR120-260-R20 46463 2.0 ZH1MCR120-260-R30 46464 3.0 ZH1MCR160-320-R15 46465 1.5 ZH1MCR160-320-R20 46466 16 0 -0.050 2.0 32 16 92 4 ZH1MCR160-320-R30 46467 3.0 ZH1MCR200-380-R30 46468 20 0 -0.050 3.0 38 20 104 4 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. Varied interval flute design, Special variable lead AlTiN coating for excellent heat resistance Hardness : 36.3GPa Oxidation temperature: 1,100°C Change specification of Z1M for superalloy machining Core Diameter : 20% UP Helix Angle : 38°/41° (Z1M : 35°/38°) Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L76 9 : Std. Item
