682 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L39

Каталог KYOCERA 2017 Инструмент режущий Стр. L39 0682 Lab2u

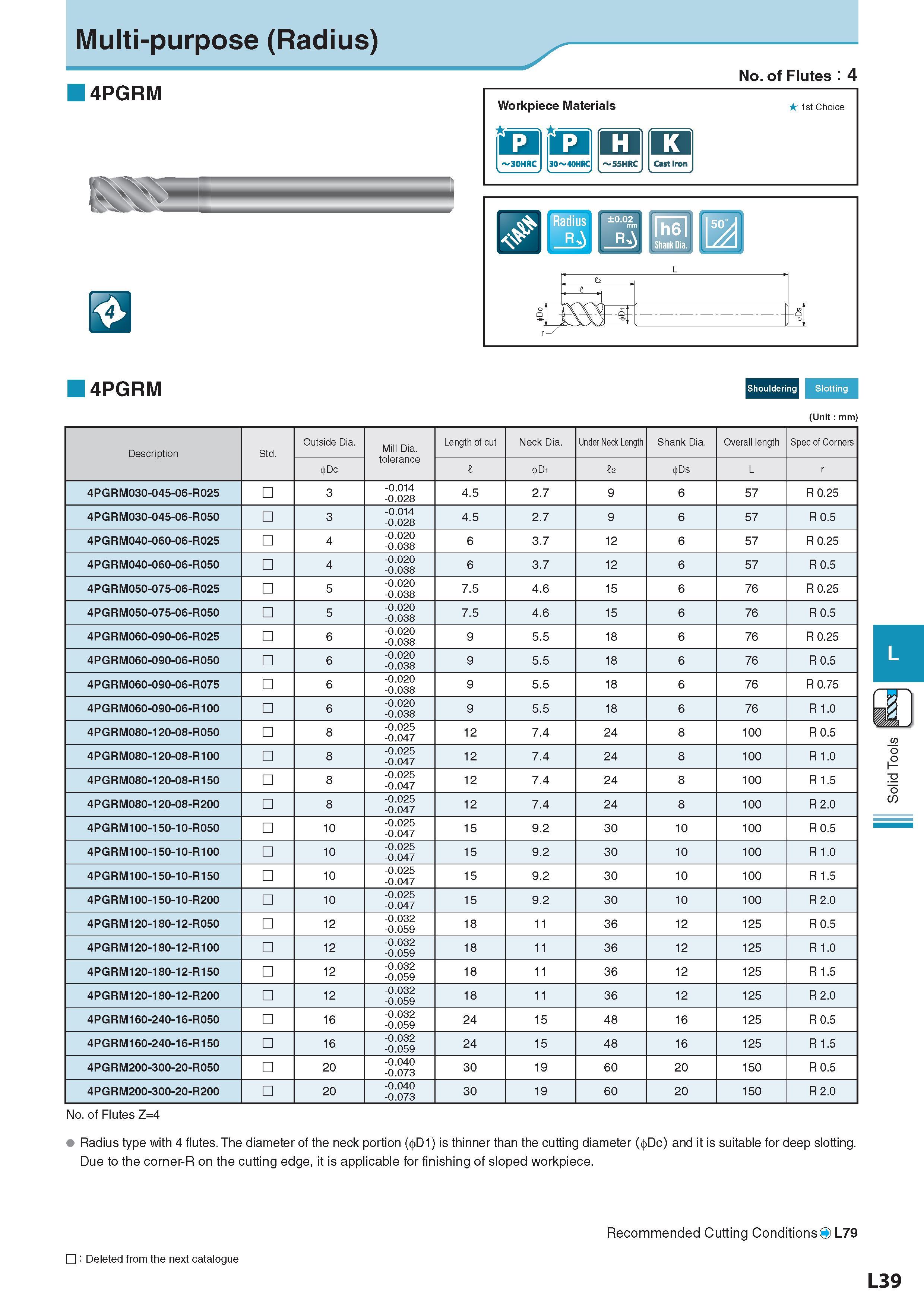

Multi-purpose (Radius) 4PGRM Workpiece Materials Обрабатываемые материалы No. of Flutes : 4 1st Choice 12 -4 -1 4PGRM Shouldering Slotting (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length Spec of Corners Dc I < >D1 12 Ds L r 4PGRM030-045-06-R025 3 -0.014 -0.028 4.5 2.7 9 6 57 R 0.25 4PGRM030-045-06-R050 3 -0.014 -0.028 4.5 2.7 9 6 57 R 0.5 4PGRM040-060-06-R025 4 -0.020 -0.038 6 3.7 12 6 57 R 0.25 4PGRM040-060-06-R050 4 -0.020 -0.038 6 3.7 12 6 57 R 0.5 4PGRM050-075-06-R025 5 -0.020 -0.038 7.5 4.6 15 6 76 R 0.25 4PGRM050-075-06-R050 5 -0.020 -0.038 7.5 4.6 15 6 76 R 0.5 4PGRM060-090-06-R025 6 -0.020 -0.038 9 5.5 18 6 76 R 0.25 4PGRM060-090-06-R050 6 -0.020 -0.038 9 5.5 18 6 76 R 0.5 4PGRM060-090-06-R075 6 -0.020 -0.038 9 5.5 18 6 76 R 0.75 4PGRM060-090-06-R100 6 -0.020 -0.038 9 5.5 18 6 76 R 1.0 4PGRM080-120-08-R050 8 -0.025 -0.047 12 7.4 24 8 100 R 0.5 4PGRM080-120-08-R100 8 -0.025 -0.047 12 7.4 24 8 100 R 1.0 4PGRM080-120-08-R150 8 -0.025 -0.047 12 7.4 24 8 100 R 1.5 4PGRM080-120-08-R200 8 -0.025 -0.047 12 7.4 24 8 100 R 2.0 4PGRM100-150-10-R050 10 -0.025 -0.047 15 9.2 30 10 100 R 0.5 4PGRM100-150-10-R100 10 -0.025 -0.047 15 9.2 30 10 100 R 1.0 4PGRM100-150-10-R150 10 -0.025 -0.047 15 9.2 30 10 100 R 1.5 4PGRM100-150-10-R200 10 -0.025 -0.047 15 9.2 30 10 100 R 2.0 4PGRM120-180-12-R050 12 -0.032 -0.059 18 11 36 12 125 R 0.5 4PGRM120-180-12-R100 12 -0.032 -0.059 18 11 36 12 125 R 1.0 4PGRM120-180-12-R150 12 -0.032 -0.059 18 11 36 12 125 R 1.5 4PGRM120-180-12-R200 12 -0.032 -0.059 18 11 36 12 125 R 2.0 4PGRM160-240-16-R050 16 -0.032 -0.059 24 15 48 16 125 R 0.5 4PGRM160-240-16-R150 16 -0.032 -0.059 24 15 48 16 125 R 1.5 4PGRM200-300-20-R050 20 -0.040 -0.073 30 19 60 20 150 R 0.5 4PGRM200-300-20-R200 20 -0.040 -0.073 30 19 60 20 150 R 2.0 L No. of Flutes Z=4 Radius type with 4 flutes. The diameter of the neck portion ( >D1) is thinner than the cutting diameter ( Dc) and it is suitable for deep slotting. Due to the corner-R on the cutting edge, it is applicable for finishing of sloped workpiece. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L79 : Deleted from the next catalogue Указанная позиция будет удалена в следующем каталоге L39 Solid Tools
