684 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L41

Каталог KYOCERA 2017 Инструмент режущий Стр. L41 0684 Lab2u

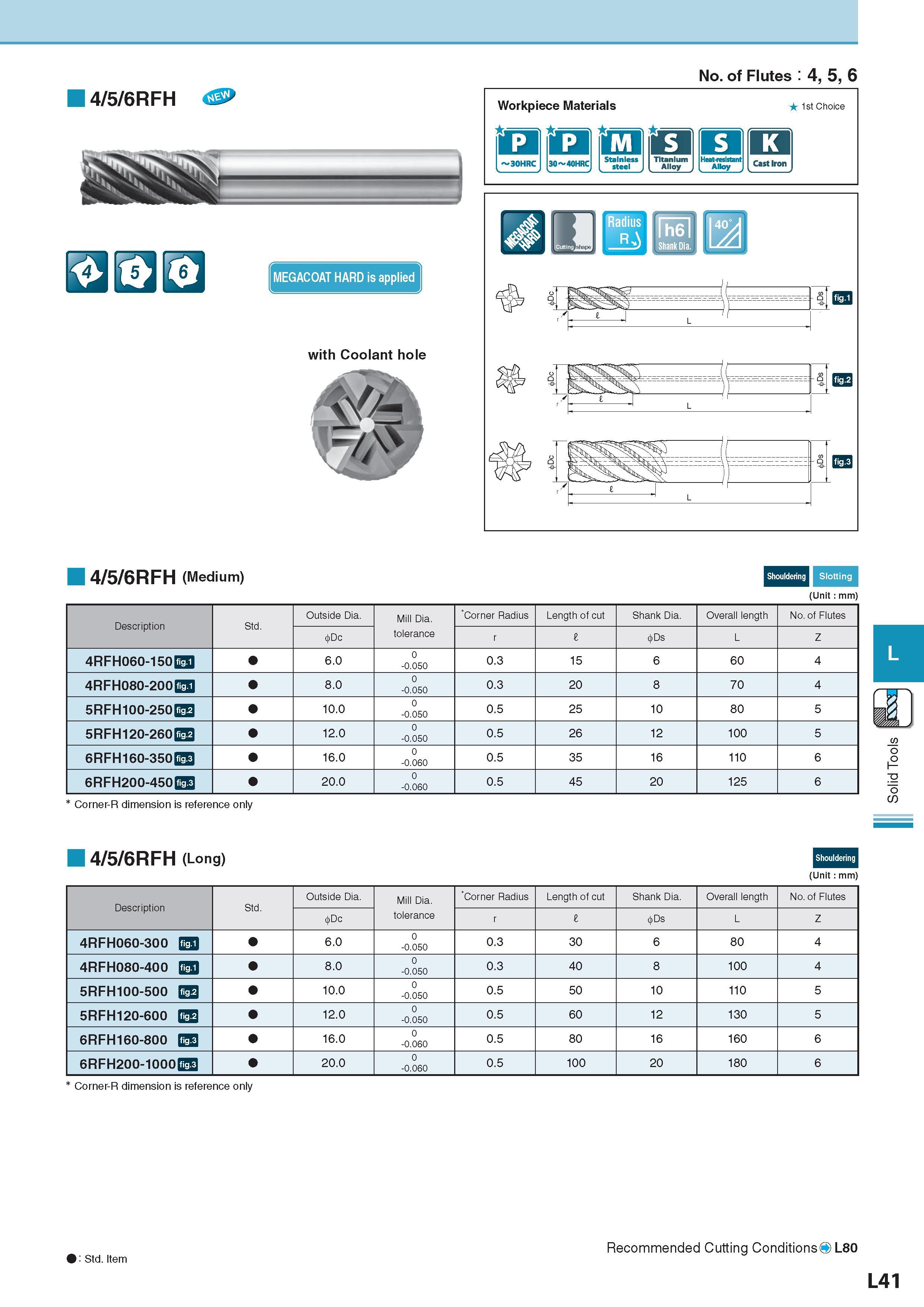

No. of Flutes : 4, 5, 6 4/5/6RFH (Medium) Shouldering I Slotting (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. tolerance "Corner Radius Length of cut Shank Dia. Overall length No. of Flutes Dc r I Ds L Z 4RFH060-150 fig.1 6.0 0 -0.050 0.3 15 6 60 4 4RFH080-200 fig.1 8.0 0 -0.050 0.3 20 8 70 4 5RFH100-250 fig.2 10.0 0 -0.050 0.5 25 10 80 5 5RFH120-260 fig.2 12.0 0 -0.050 0.5 26 12 100 5 6RFH160-350 fig.3 16.0 0 -0.060 0.5 35 16 110 6 6RFH200-450 fig.3 20.0 0 -0.060 0.5 45 20 125 6 Corner-R dimension is reference only 4/5/6RFH (Long) (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. tolerance "Corner Radius Length of cut Shank Dia. Overall length No. of Flutes Dc r I Ds L Z 4RFH060-300 fig.1 6.0 0 -0.050 0.3 30 6 80 4 4RFH080-400 fig.1 8.0 0 -0.050 0.3 40 8 100 4 5RFH100-500 fig.2 10.0 0 -0.050 0.5 50 10 110 5 5RFH120-600 fig.2 12.0 0 -0.050 0.5 60 12 130 5 6RFH160-800 fig.3 16.0 0 -0.060 0.5 80 16 160 6 6RFH200-1000 fig.3 20.0 0 -0.060 0.5 100 20 180 6 Corner-R dimension is reference only : Std. Item Стандартная позиция Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L80 L41 Solid Tools
