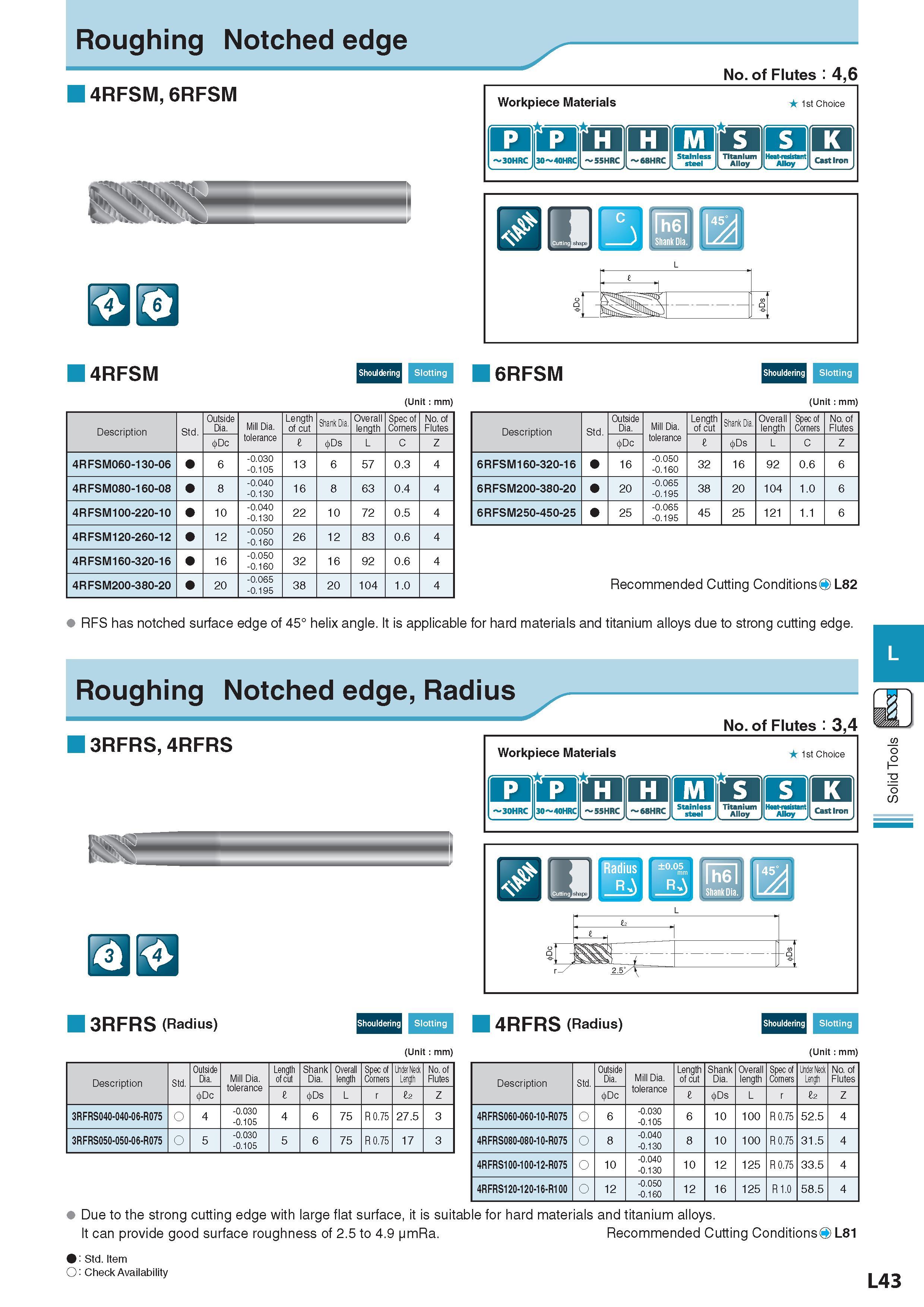

Roughing Notched edge 4RFSM, 6RFSM 1B 4RFSM Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length Spec of Corners No. of Flutes Dc I Ds L C Z 4RFSM060-130-06 6 -0.030 -0.105 13 6 57 0.3 4 4RFSM080-160-08 8 -0.040 -0.130 16 8 63 0.4 4 4RFSM100-220-10 10 -0.040 -0.130 22 10 72 0.5 4 4RFSM120-260-12 12 -0.050 -0.160 26 12 83 0.6 4 4RFSM160-320-16 16 -0.050 -0.160 32 16 92 0.6 4 4RFSM200-380-20 20 -0.065 -0.195 38 20 104 1.0 4 No. of Flutes : 4,6 Workpiece Materials Обрабатываемые материалы 1st Choice 30 40HRCj 55HRC j 68HRC StSS " Alioy" Alloy Shouldering Slotting (Unit : mm) 6RFSM Shouldering Slotting (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length Spec of Corners No. of Flutes Dc I Ds L C Z 6RFSM160-320-16 16 -0.050 -0.160 32 16 92 0.6 6 6RFSM200-380-20 20 -0.065 -0.195 38 20 104 1.0 6 6RFSM250-450-25 25 -0.065 -0.195 45 25 121 1.1 6 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L82 RFS has notched surface edge of 45° helix angle. It is applicable for hard materials and titanium alloys due to strong cutting edge. Roughing Notched edge Radius i ivuui iii iu iivivi ivU vUUvj i muiuo 3RFRS, 4RFRS 3RFRS (Radius) Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length Spec of Corners Under Neck Length No. of Flutes Dc I Ds L 12 Z 3RFRS040-040-06-R075 O 4 -0.030 -0.105 4 6 75 R 0.75 27.5 3 3RFRS050-050-06-R075 O 5 -0.030 -0.105 5 6 75 R 0.75 17 3 Workpiece Materials Обрабатываемые материалы 1st Choice loo m moo 30HRC 30 40HRC 55HRC 68 HRC AlKy Alloy Shouldering Slotting (Unit : mm) 4RFRS (Radius) Shouldering Slotting (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length Spec of Corners Under Neck Length No. of Flutes Dc I Ds L r 12 Z 4RFRS060-060-10-R075 O 6 -0.030 -0.105 6 10 100 R 0.75 52.5 4 4RFRS080-080-10-R075 O 8 -0.040 -0.130 8 10 100 R 0.75 31.5 4 4RFRS100-100-12-R075 O 10 -0.040 -0.130 10 12 125 R 0.75 33.5 4 4RFRS120-120-16-R100 O 12 -0.050 -0.160 12 16 125 R 1.0 58.5 4 Due to the strong cutting edge with large flat surface, it is suitable for hard materials and titanium alloys. It can provide good surface roughness of 2.5 to 4.9 pmRa. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L81 : Std. Item Стандартная позиция O: Check Availability L43 L Solid Tools
