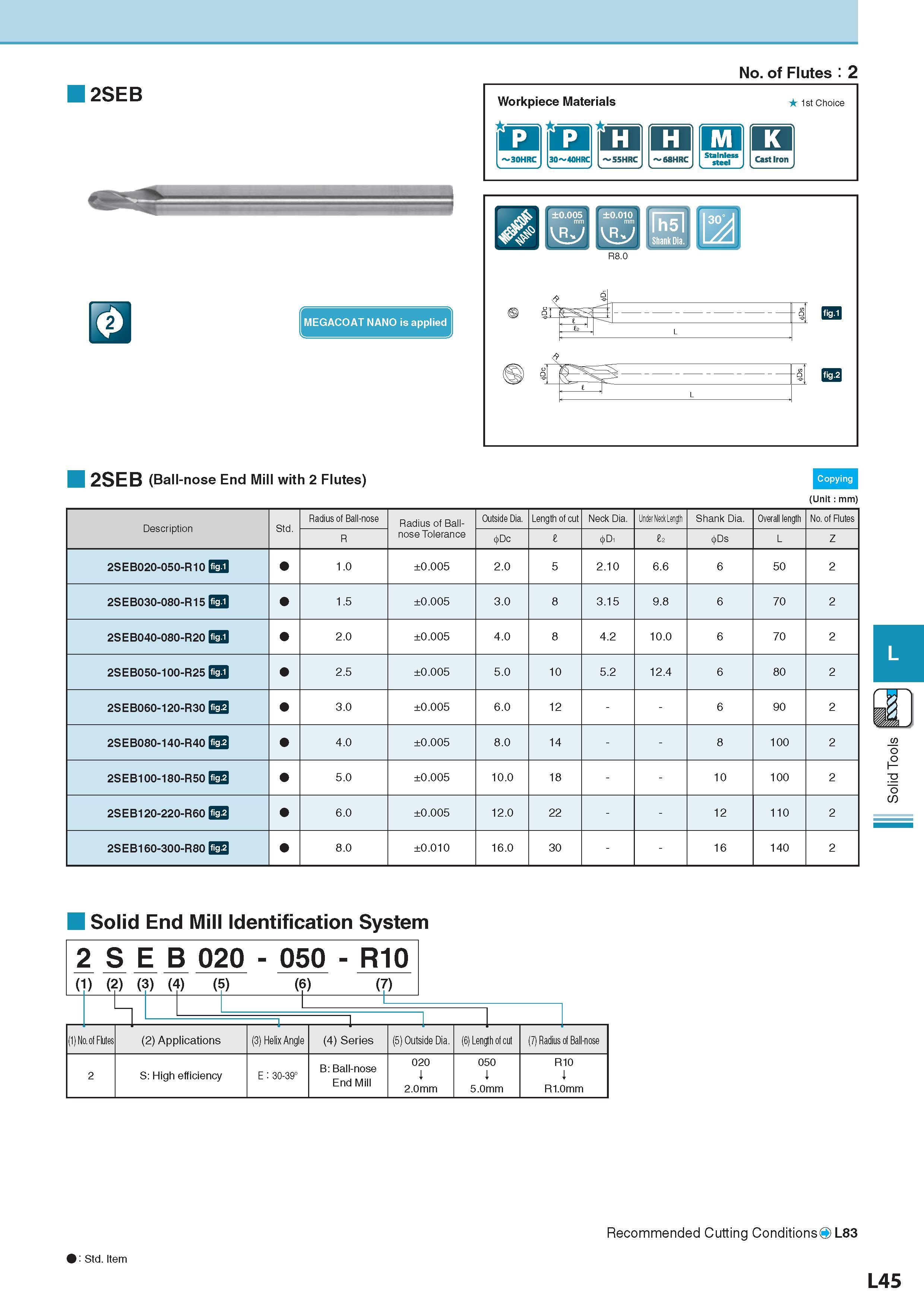

No. of Flutes : 2 2SEB MEGACOAT NANO is applied Workpiece Materials Обрабатываемые материалы 1st Choice m a r H 1 Li 68HRCJ ±0.005 ±0.010 I -1 mm mm UC I "I 12 ' 2SEB (Ball-nose End Mill with 2 Flutes) (Unit : mm) Description Обозначение Std. Radius of Ball-nose Radius of Ball-nose Tolerance Outside Dia. Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes R Dc I D1 12 Ds L Z 2S E B020-050-R10 fig.1 1.0 ±0.005 2.0 5 2.10 6.6 6 50 2 2SEB030-080-R15 fig.1 1.5 ±0.005 3.0 8 3.15 9.8 6 70 2 2SEB040-080-R20 fig.1 2.0 ±0.005 4.0 8 4.2 10.0 6 70 2 2SEB050-100-R25 fig.1 2.5 ±0.005 5.0 10 5.2 12.4 6 80 2 2SEB060-120-R30 fig.2 3.0 ±0.005 6.0 12 6 90 2 2SEB080-140-R40 fig.2 4.0 ±0.005 8.0 14 8 100 2 2SEB100-180-R50 fig.2 5.0 ±0.005 10.0 18 10 100 2 2SEB120-220-R60 fig.2 6.0 ±0.005 12.0 22 12 110 2 2SEB160-300-R80 fig.2 8.0 ±0.010 16.0 30 16 140 2 Solid End Mill Identification System 2 S E B 020 050 R10 (1) (2) (3) (4) (5) (6) (7) (1) No. of Flutes (2) Applications (3) Helix Angle (4) Series (5) Outside Dia. (6) Length of cut (7) Radius of Ball-nose 2 S: High efficiency E : 30-39° B: Ball-nose End Mill 020 I 2.0mm 050 I 5.0mm R10 I R1.0mm Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L83 : Std. Item Стандартная позиция L45 Solid Tools
