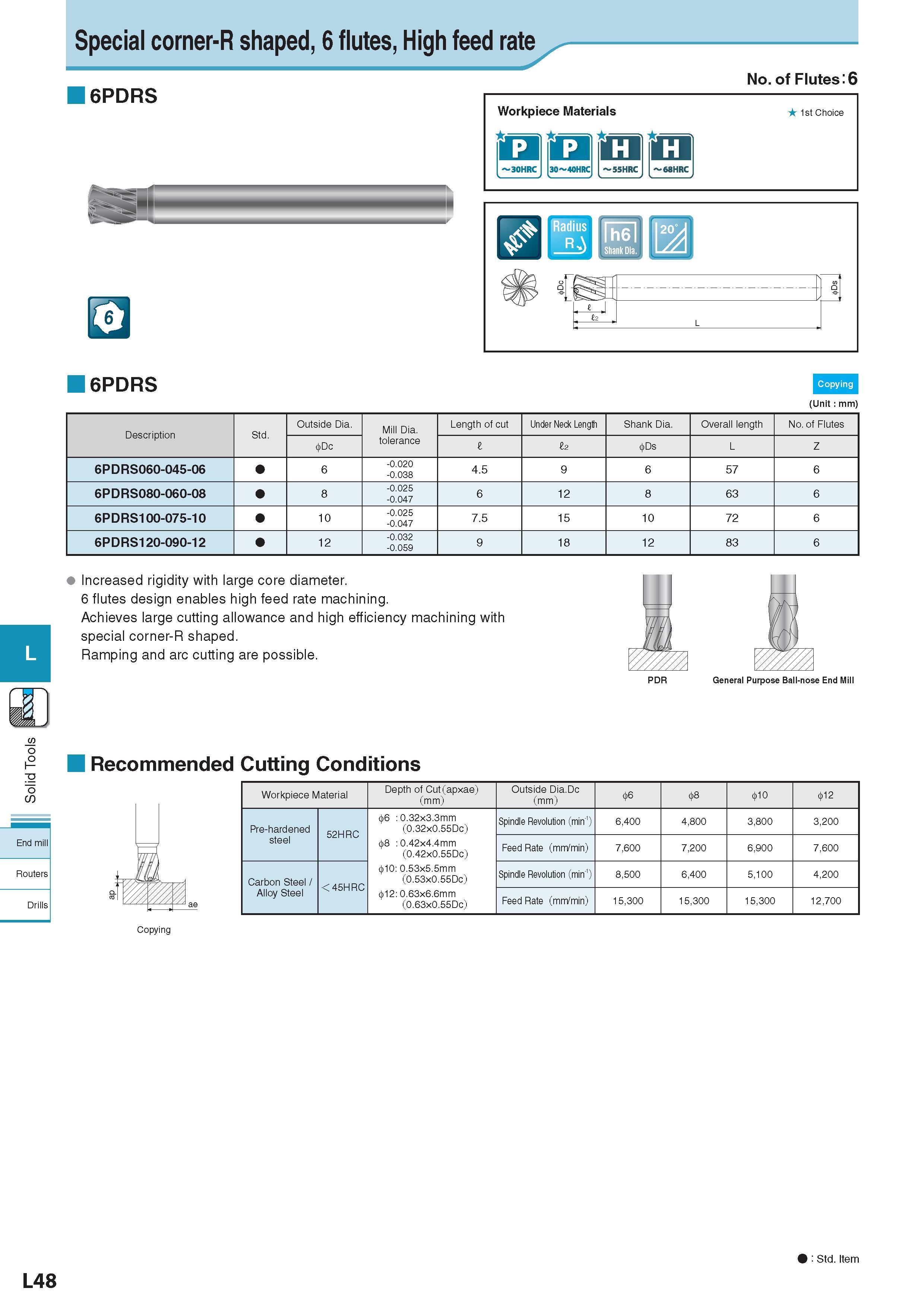

Special corner-R shaped, 6 flutes, High feed rate 6PDRS Workpiece Materials Обрабатываемые материалы rrairaimicii m 6PDRS RRiUv hfcl V I I Shank Dia. No. of Flutes: 6 1st Choice 1 L (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Under Neck Length Shank Dia. Overall length No. of Flutes 0Dc I 12 0Ds L Z 6PDRS060-045-06 6 -0.020 -0.038 4.5 9 6 57 6 6PDRS080-060-08 8 -0.025 -0.047 6 12 8 63 6 6PDRS100-075-10 10 -0.025 -0.047 7.5 15 10 72 6 6PDRS120-090-12 12 -0.032 -0.059 9 18 12 83 6 Increased rigidity with large core diameter. 6 flutes design enables high feed rate machining. Achieves large cutting allowance and high efficiency machining with special corner-R shaped. Ramping and arc cutting are possible. General Purpose Ball-nose End Mill Recommended Cutting Conditions Рекомендованные режимы резания на станках Workpiece Material Обрабатываемый материал Depth of Cut(apxae) (mm) Outside Dia.Dc (mm) 06 08 010 012 Pre-hardened steel 52HRC 06 : 0.32x3.3mm (0.32x0.55Dc) 08 :0.42x4.4mm (0.42x0.55Dc) 010: 0.53x5.5mm (0.53x0.55Dc) 012: 0.63x6.6mm (0.63x0.55Dc) Spindle Revolution (min-1) 6,400 4,800 3,800 3,200 Feed Rate (mm/min) 7,600 7,200 6,900 7,600 Carbon Steel / Alloy Steel < 45HRC Spindle Revolution (min-1) 8,500 6,400 5,100 4,200 Feed Rate (mm/min) 15,300 15,300 15,300 12,700 Copying PDR End mill ae L48 : Std. Item
