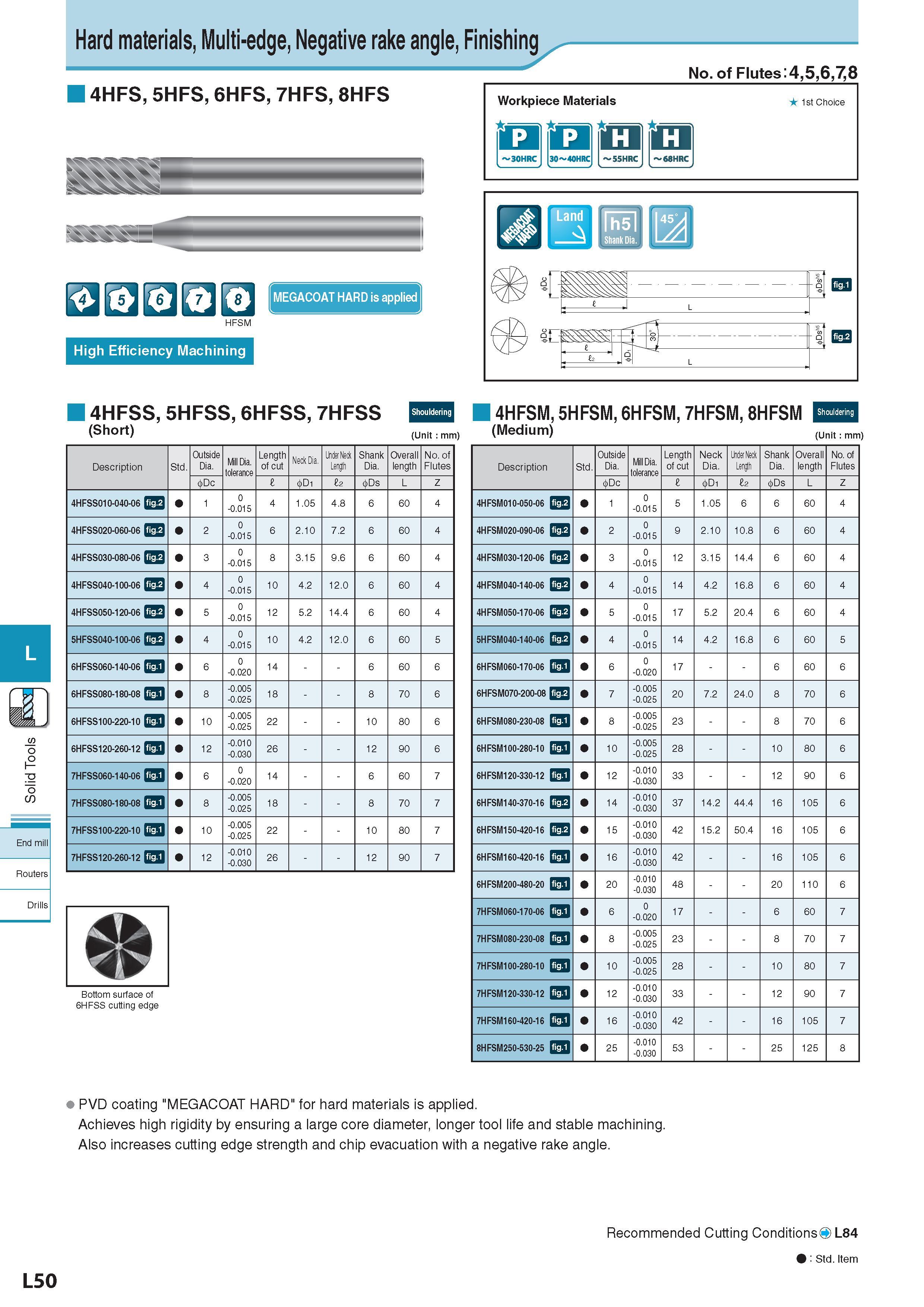

Hard materials, Multi-edge, Negative rake angle, Finishing 4HFS, 5HFS, 6HFS, 7HFS, 8HFS High Efficiency Machining 8 HFSM MEGACOAT HARD is applied No. of Flutes :4,5,6,7,8 Workpie m 30HRC ce Mater m 30 40HRC ials a 55HRC m 68HRC 1st Choice 4HFSS, 5HFSS, 6HFSS, 7HFSS (Short) Shouldering 4HFSM, 5HFSM, 6HFSM, 7HFSM, 8HFSM (Unit : mm) (Medium) (Unit : mm) End mill Routers Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes Dc I 4>D1 12 Ds L Z 4HFSS010-040-06 f 0 0 -0.015 4 1.05 4.8 6 60 4 4HFSS020-060-06 f 0 2 0 -0.015 6 2.10 7.2 6 60 4 4HFSS030-080-06 f 0 3 0 -0.015 8 3.15 9.6 6 60 4 4HFSS040-100-06 0 4 0 -0.015 10 4.2 12.0 6 60 4 4HFSS050-120-06 0 5 0 -0.015 12 5.2 14.4 6 60 4 5HFSS040-100-06 0 4 0 -0.015 10 4.2 12.0 6 60 5 6HFSS060-140-06 (jSQ 6 0 -0.020 14 6 60 6 6HFSS080-180-08 (jSQ 8 -0.005 -0.025 18 8 70 6 6HFSS100-220-10 QQgSQ 10 -0.005 -0.025 22 10 80 6 6HFSS120-260-12 QQgSQ 12 -0.010 -0.030 26 12 90 6 7HFSS060-140-06 QQgSQ 6 0 -0.020 14 6 60 7 7HFSS080-180-08 dQ 8 -0.005 -0.025 18 8 70 7 7HFSS100-220-10 QQg Q 10 -0.005 -0.025 22 10 80 7 7HFSS120-260-12 QQgQ 12 -0.010 -0.030 26 12 90 7 Bottom surface of 6HFSS cutting edge Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes Dc I 4>D1 12 Ds L Z 4HFSM010-050-06 fig.2 0 -0.015 5 1.05 6 6 60 4 4HFSM020-090-06 fig.2 2 0 -0.015 9 2.10 10.8 6 60 4 4HFSM030-120-06 fig.2 3 0 -0.015 12 3.15 14.4 6 60 4 4HFSM040-140-06 fig.2 4 0 -0.015 14 4.2 16.8 6 60 4 4HFSM050-170-06 fig.2 5 0 -0.015 17 5.2 20.4 6 60 4 5HFSM040-140-06 fig.2 4 0 -0.015 14 4.2 16.8 6 60 5 6HFSM060-170-06 fig.1 6 0 -0.020 17 6 60 6 6HFSM070-200-08 fig.2 7 -0.005 -0.025 20 7.2 24.0 8 70 6 6HFSM080-230-08 fig.1 8 -0.005 -0.025 23 8 70 6 6HFSM100-280-10 fig.1 10 -0.005 -0.025 28 10 80 6 6HFSM120-330-12 fig.1 12 -0.010 -0.030 33 12 90 6 6HFSM140-370-16 fig.2 14 -0.010 -0.030 37 14.2 44.4 16 105 6 6HFSM150-420-16 fig.2 15 -0.010 -0.030 42 15.2 50.4 16 105 6 6HFSM160-420-16 fig.1 16 -0.010 -0.030 42 16 105 6 6HFSM200-480-20 fig.1 20 -0.010 -0.030 48 20 110 6 7HFSM060-170-06 fig.1 6 0 -0.020 17 6 60 7 7HFSM080-230-08 fig.1 8 -0.005 -0.025 23 8 70 7 7HFSM100-280-10 fig.1 10 -0.005 -0.025 28 10 80 7 7HFSM120-330-12 fig.1 12 -0.010 -0.030 33 12 90 7 7HFSM160-420-16 fig.1 16 -0.010 -0.030 42 16 105 7 8HFSM250-530-25 fig.1 25 -0.010 -0.030 53 25 125 8 PVD coating "MEGACOAT HARD" for hard materials is applied. Achieves high rigidity by ensuring a large core diameter, longer tool life and stable machining. Also increases cutting edge strength and chip evacuation with a negative rake angle. L50 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L84 : Std. Item
