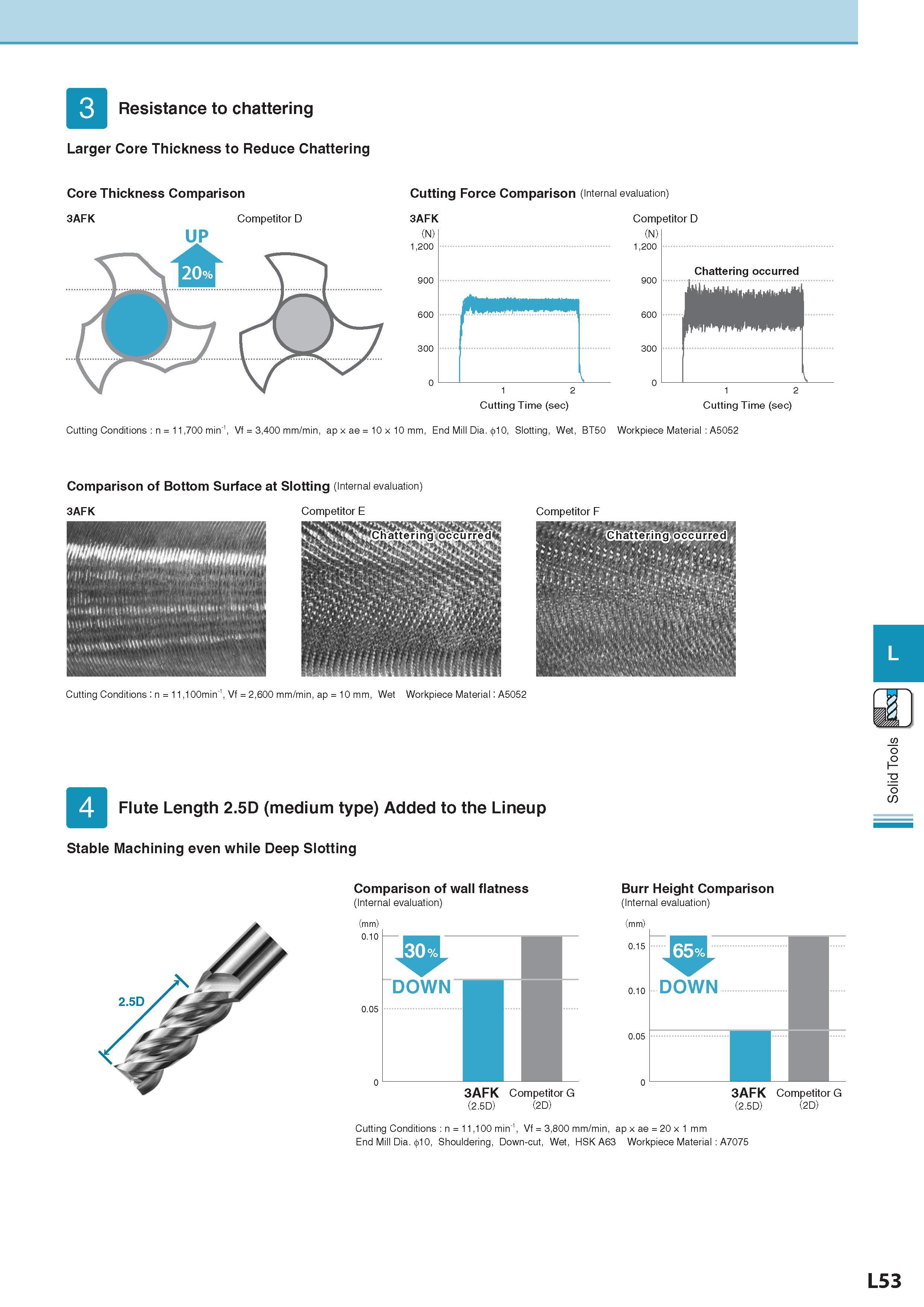

Resistance to chattering Larger Core Thickness to Reduce Chattering Core Thickness Comparison 3AFK Competitor D UP Cutting Force Comparison (Internal evaluation) 3AFK (N) 1,200 Competitor D (N) 1,200 .......... Chattering occurred 12 Cutting Time (sec) 12 Cutting Time (sec) Cutting Conditions : n = 11,700 min'1, Vf = 3,400 mm/min, ap x ae = 10 x 10 mm, End Mill Dia. 10, Slotting, Wet, BT50 Workpiece Material Обрабатываемый материал : A5052 Comparison of Bottom Surface at Slotting (Internal evaluation) 3AFK Competitor E Competitor F Cutting Conditions : n = 11,100min-1, Vf = 2,600 mm/min, ap = 10 mm, Wet Workpiece Material: A5052 900 900 600 600 300 300 0 0 wm Flute Length 2.5D (medium type) Added to the Lineup Stable Machining even while Deep Slotting Comparison of wall flatness (Internal evaluation) 3AFK Competitor G (2.5D) (2D) Burr Height Comparison (Internal evaluation) (mm) (2.5D) (2D) Cutting Conditions : n = 11,100 min'1, Vf = 3,800 mm/min, ap x ae = 20 x 1 mm End Mill Dia. < )10, Shouldering, Down-cut, Wet, HSKA63 Workpiece Material: A7075 L53 Solid Tools
