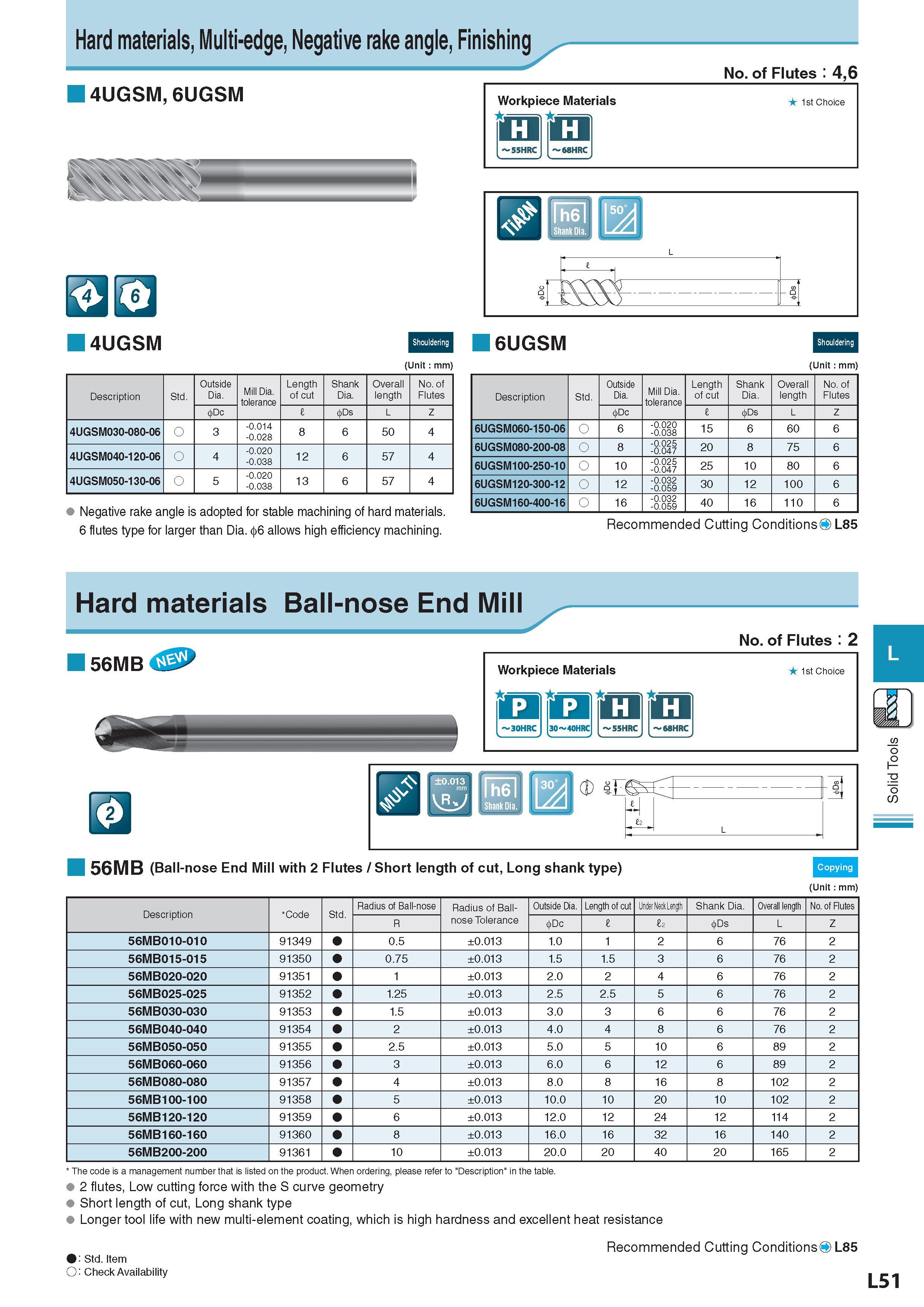

694 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L51

Каталог KYOCERA 2017 Инструмент режущий Стр. L51 0694 Lab2u

Hard materials, Multi-edge, Negative rake angle, Finishing No. of Flutes : 4,6 4UGSM, 6UGSM Workpie m w55HRC ce Mate tii 68HRC rials 1st Choice a L 1- N 4UGSM 6UGSM (Unit : mm) (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. Length of cut Shank Dia. Overall length No. of Flutes 0Dc I 0Ds L Z 4UGSM030-080-06 O 3 -0.014 -0.028 8 6 50 4 4UGSM040-120-06 O 4 -0.020 -0.038 12 6 57 4 4UGSM050-130-06 O 5 -0.020 -0.038 13 6 57 4 Negative rake angle is adopted for stable machining of hard materials. 6 flutes type for larger than Dia. 6 allows high efficiency machining. Description Обозначение Std. Outside Dia. Mill Dia. Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 6UGSM060-150-06 O 6 -0.020 -0.038 15 6 60 6 6UGSM080-200-08 O 8 -0.025 -0.047 20 8 75 6 6UGSM100-250-10 O 10 -0.025 -0.047 25 10 80 6 6UGSM120-300-12 O 12 -0.032 -0.059 30 12 100 6 6UGSM160-400-16 O 16 -0.032 -0.059 40 16 110 6 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L85 Hard materials Ball-nose End Mill 56MB No. of Flutes : 2 Workpie m I 30HRC ce Mater a l30 40HRC ials Cl 55HRC 1st Choice Hi 68HRC 56MB (Ball-nose End Mill with 2 Flutes / Short length of cut, Long shank type) (Unit : mm) Description Обозначение Code Std. Radius of Ball-nose Radius of Ball-nose Tolerance Outside Dia. Length of cut Under Neck Length Shank Dia. Overall length No. of Flutes R Dc I 12 Ds L Z 56MB010-010 91349 0.5 ±0.013 1.0 1 2 6 76 2 56MB015-015 91350 0.75 ±0.013 1.5 1.5 3 6 76 2 56MB020-020 91351 1 ±0.013 2.0 2 4 6 76 2 56MB025-025 91352 1.25 ±0.013 2.5 2.5 5 6 76 2 56MB030-030 91353 1.5 ±0.013 3.0 3 6 6 76 2 56MB040-040 91354 2 ±0.013 4.0 4 8 6 76 2 56MB050-050 91355 2.5 ±0.013 5.0 5 10 6 89 2 56MB060-060 91356 3 ±0.013 6.0 6 12 6 89 2 56MB080-080 91357 4 ±0.013 8.0 8 16 8 102 2 56MB100-100 91358 5 ±0.013 10.0 10 20 10 102 2 56MB120-120 91359 6 ±0.013 12.0 12 24 12 114 2 56MB160-160 91360 8 ±0.013 16.0 16 32 16 140 2 56MB200-200 91361 10 ±0.013 20.0 20 40 20 165 2 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. 2 flutes, Low cutting force with the S curve geometry Short length of cut, Long shank type Longer tool life with new multi-element coating, which is high hardness and excellent heat resistance : Std. Item Стандартная позиция O: Check Availability Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L85 L51 Solid Tools
