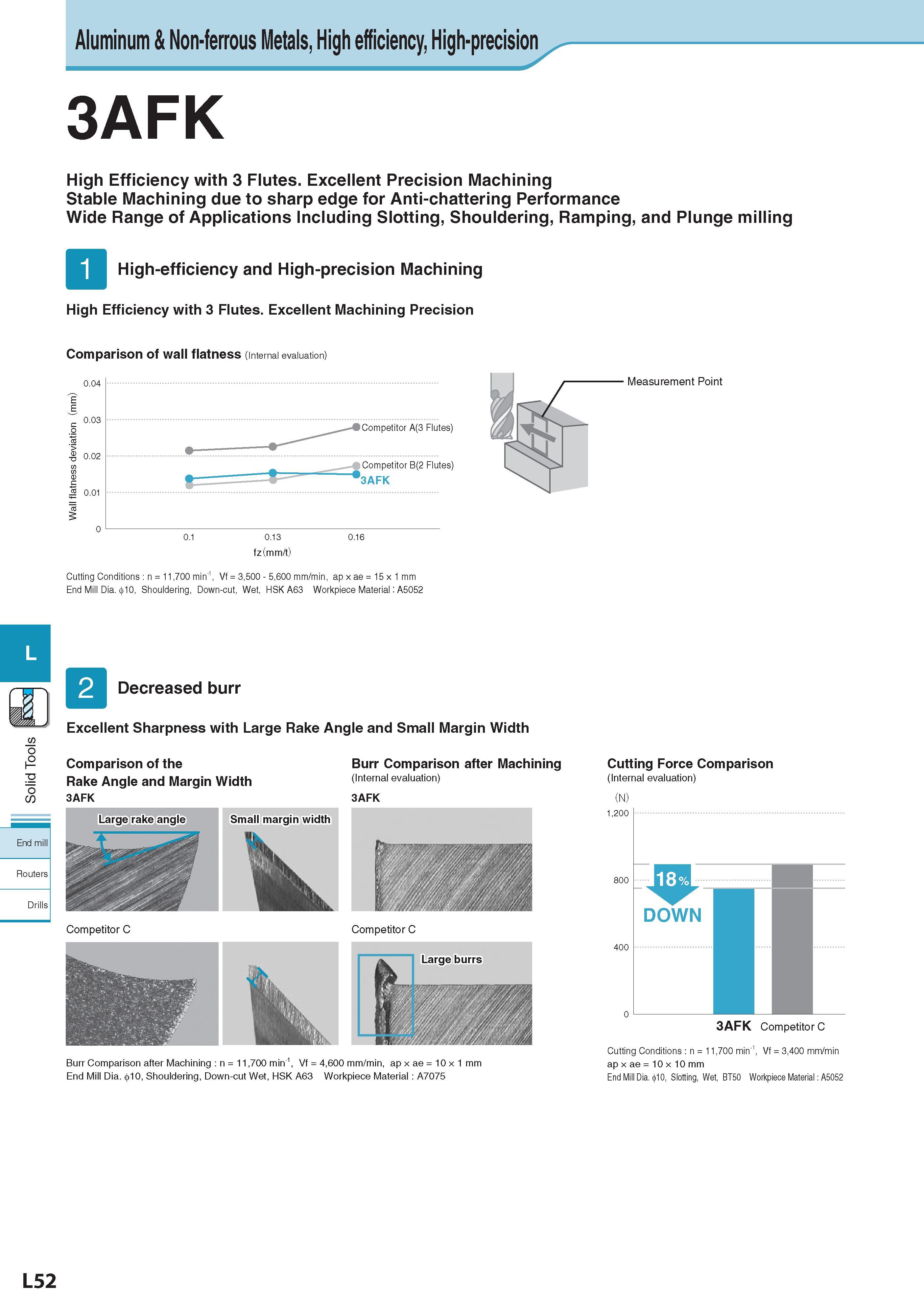

Aluminum & Non-ferrous Metals, High efficiency, High-precision 3AFK High Efficiency with 3 Flutes. Excellent Precision Machining Stable Machining due to sharp edge for Anti-chattering Performance Wide Range of Applications Including Slotting, Shouldering, Ramping, and Plunge milling High-efficiency and High-precision Machining High Efficiency with 3 Flutes. Excellent Machining Precision Comparison of wall flatness (Internal evaluation) fz(mm/t) Cutting Conditions : n = 11,700 min-1, Vf = 3,500 - 5,600 mm/min, ap x ae = 15 x 1 mm End Mill Dia. 10, Shouldering, Down-cut, Wet, HSK A63 Workpiece Material: A5052 O Drills Decreased burr Excellent Sharpness with Large Rake Angle and Small Margin Width Comparison of the Rake Angle and Margin Width 3AFK Burr Comparison after Machining (Internal evaluation) 3AFK Burr Comparison after Machining : n = 11,700 min-1, Vf = 4,600 mm/min, ap x ae = 10 x 1 mm End Mill Dia. 10, Shouldering, Down-cut Wet, HSK A63 Workpiece Material Обрабатываемый материал : A7075 Cutting Force Comparison (Internal evaluation) (N) 1,200 ............................. 3AFK Competitor C Cutting Conditions : n = 11,700 min-1, Vf = 3,400 mm/min ap x ae = 10 x 10 mm End Mill Dia. 10, Slotting, Wet, BT50 Workpiece Material Обрабатываемый материал : A5052 End mill 0 L52
