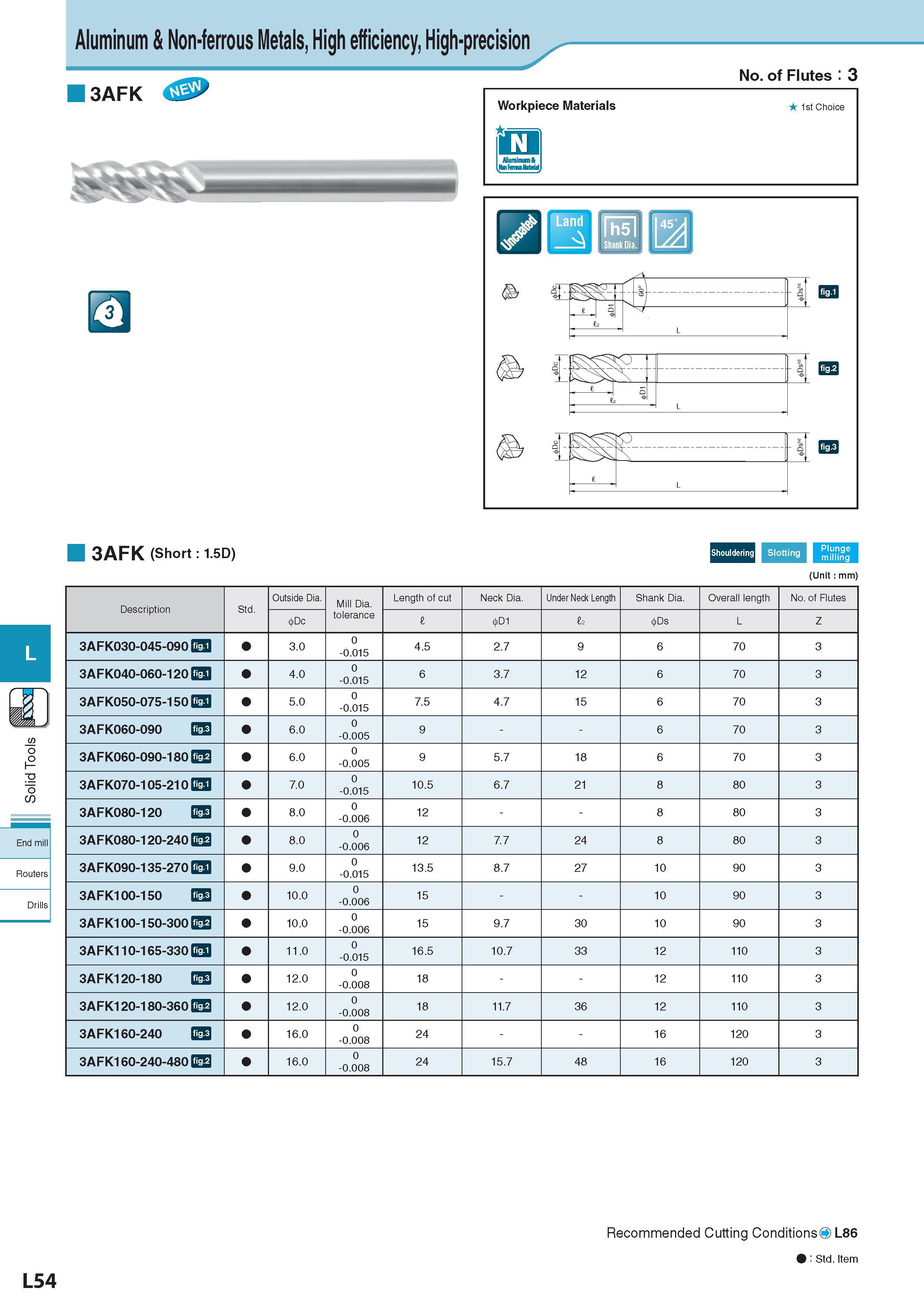

697 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L54

Каталог KYOCERA 2017 Инструмент режущий Стр. L54 0697 Lab2u

End mill Routers Drills L54 Aluminum & Non-ferrous Metals, High efficiency, High-precision 3AFK LaS I h5l 3 I Shank Dia. No. of Flutes : 3 Workpiece Materials Обрабатываемые материалы 1st Choice MA (Hi Farina Mrtmal £ r 3AFK (Short : 1.5D) Shouldering Slotting mnii (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length No. of Flutes Dc I D1 12 Ds L Z 3AFK030-045-090 (HQ 3.0 0 -0.015 4.5 2.7 9 6 70 3 3AFK040-060-120 HQ 4.0 0 -0.015 6 3.7 12 6 70 3 3AFK050-075-150 HQ 5.0 0 -0.015 7.5 4.7 15 6 70 3 3AFK060-090 fig.3 6.0 0 -0.005 9 6 70 3 3AFK060-090-180 EH 6.0 0 -0.005 9 5.7 18 6 70 3 3AFK070-105-210 QHD 7.0 0 -0.015 10.5 6.7 21 8 80 3 3AFK080-120 fig.3 8.0 0 -0.006 12 8 80 3 3AFK080-120-240 EH 8.0 0 -0.006 12 7.7 24 8 80 3 3AFK090-135-270 HD 9.0 0 -0.015 13.5 8.7 27 10 90 3 3AFK100-150 fig.3 10.0 0 -0.006 15 10 90 3 3AFK100-150-300 EH 10.0 0 -0.006 15 9.7 30 10 90 3 3AFK110-165-330 HD 11.0 0 -0.015 16.5 10.7 33 12 110 3 3AFK120-180 fig.3 12.0 0 -0.008 18 12 110 3 3AFK120-180-360 EH 12.0 0 -0.008 18 11.7 36 12 110 3 3AFK160-240 fig.3 16.0 0 -0.008 24 16 120 3 3AFK160-240-480 EH 16.0 0 -0.008 24 15.7 48 16 120 3 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L86 : Std. Item
