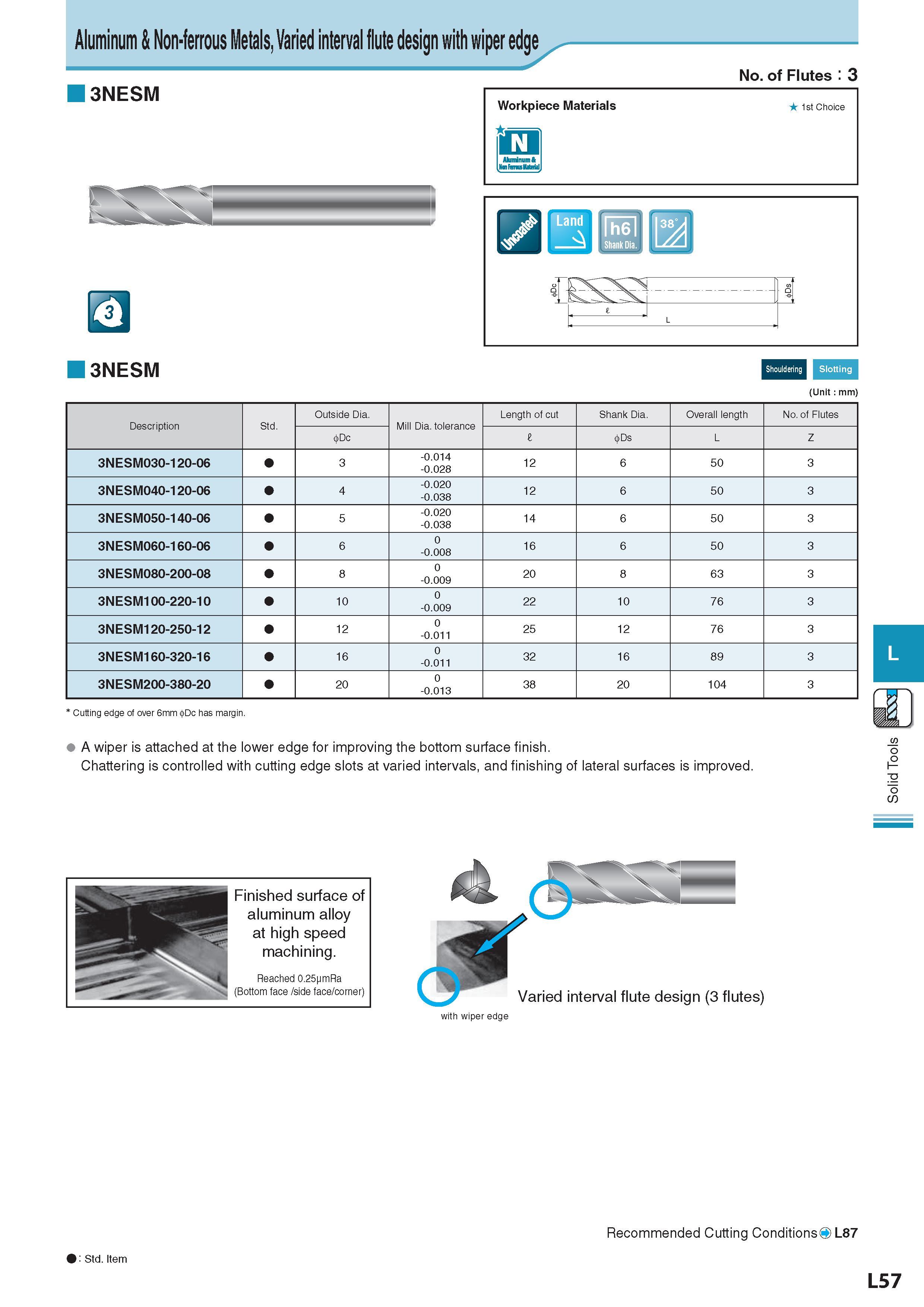

Aluminum & Non-ferrous Metals, Varied interval flute design with wiper edge 3NESM No. of Flutes : 3 Workpiece Materials Обрабатываемые материалы 1st Choice Vzi taiFmustUtawl Lanx I fhel J I Shank Dia. Cl 3NESM Shouldering Slotting (Unit : mm) i Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 3NESM030-120-06 3 -0.014 -0.028 12 6 50 3 3NESM040-120-06 4 -0.020 -0.038 12 6 50 3 3NESM050-140-06 5 -0.020 -0.038 14 6 50 3 3NESM060-160-06 6 0 -0.008 16 6 50 3 3NESM080-200-08 8 0 -0.009 20 8 63 3 3NESM100-220-10 10 0 -0.009 22 10 76 3 3NESM120-250-12 12 0 -0.011 25 12 76 3 3NESM160-320-16 16 0 -0.011 32 16 89 3 3NESM200-380-20 20 0 -0.013 38 20 104 3 Cutting edge of over 6mm 0Dc has margin. A wiper is attached at the lower edge for improving the bottom surface finish. Chattering is controlled with cutting edge slots at varied intervals, and finishing of lateral surfaces is improved. Finished surface of aluminum alloy at high speed machining. Reached 0.25 mRa (Bottom face /side face/corner) : Std. Item Стандартная позиция with wiper edge Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L87 L57 Solid Tools
