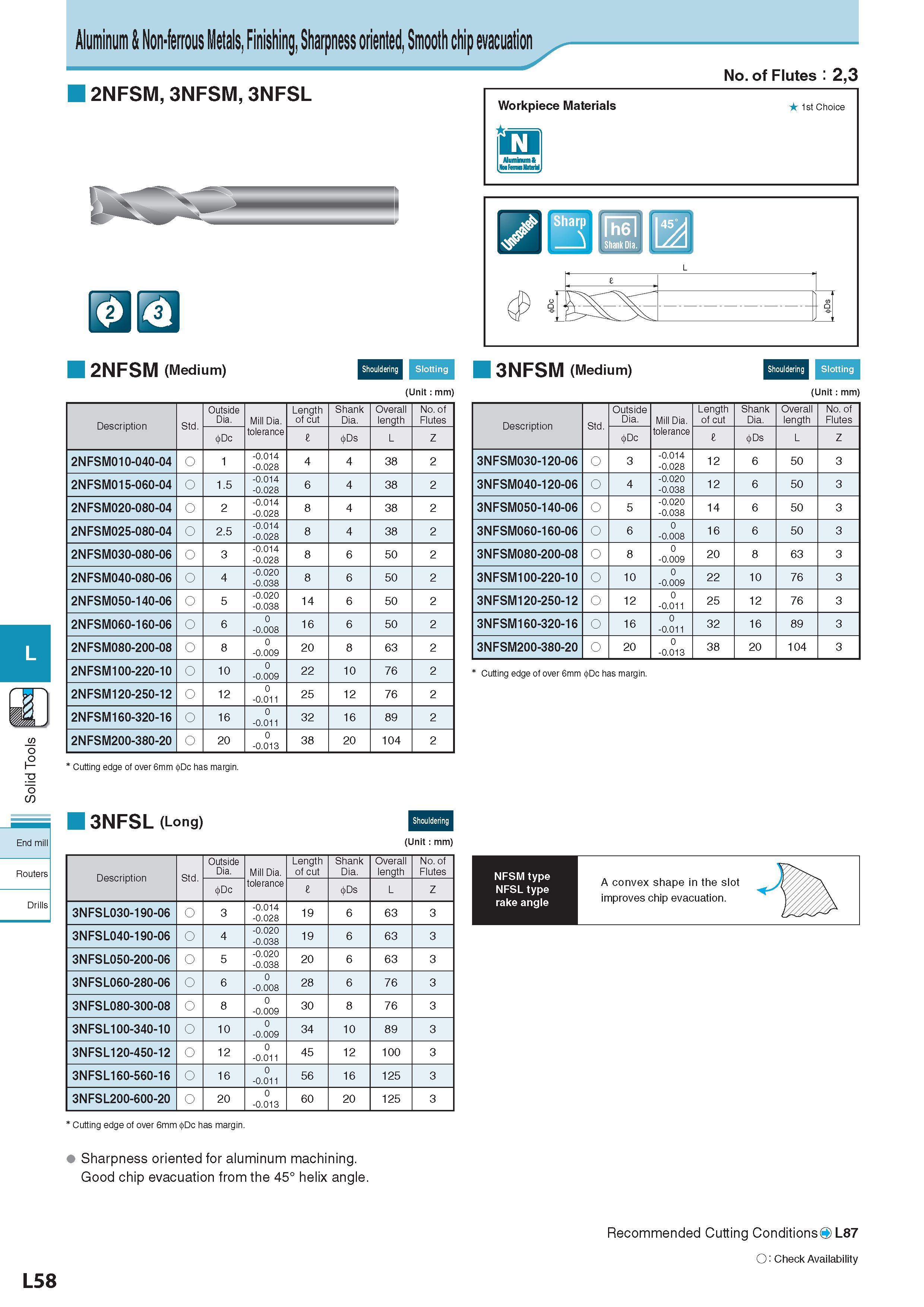

701 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L58

Каталог KYOCERA 2017 Инструмент режущий Стр. L58 0701 Lab2u

End mill Routers Drills L58 Aluminum & Non-ferrous Metals, Finishing, Sharpness oriented, Smooth chip evacuation 2NFSM, 3NFSM, 3NFSL (y Pa 2NFSM (Medium) Shouldering Slotting (Unit : mm) 3NFSM (Medium) No. of Flutes : 2,3 Workpiece Materials Обрабатываемые материалы 1st Choice m HwFan lfcrtgM Shouldering Slotting (Unit : mm) Description Обозначение Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 2NFSM010-040-04 O 1 -0.014 -0.028 4 4 38 2 2NFSM015-060-04 O 1.5 -0.014 -0.028 6 4 38 2 2NFSM020-080-04 O 2 -0.014 -0.028 8 4 38 2 2NFSM025-080-04 O 2.5 -0.014 -0.028 8 4 38 2 2NFSM030-080-06 O 3 -0.014 -0.028 8 6 50 2 2NFSM040-080-06 O 4 -0.020 -0.038 8 6 50 2 2NFSM050-140-06 O 5 -0.020 -0.038 14 6 50 2 2NFSM060-160-06 O 6 0 -0.008 16 6 50 2 2NFSM080-200-08 O 8 0 -0.009 20 8 63 2 2NFSM100-220-10 O 10 0 -0.009 22 10 76 2 2NFSM120-250-12 O 12 0 -0.011 25 12 76 2 2NFSM160-320-16 O 16 0 -0.011 32 16 89 2 2NFSM200-380-20 O 20 0 -0.013 38 20 104 2 Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 3NFSM030-120-06 O 3 -0.014 -0.028 12 6 50 3 3NFSM040-120-06 O 4 -0.020 -0.038 12 6 50 3 3NFSM050-140-06 O 5 -0.020 -0.038 14 6 50 3 3NFSM060-160-06 O 6 0 -0.008 16 6 50 3 3NFSM080-200-08 O 8 0 -0.009 20 8 63 3 3NFSM100-220-10 O 10 0 -0.009 22 10 76 3 3NFSM120-250-12 O 12 0 -0.011 25 12 76 3 3NFSM160-320-16 O 16 0 -0.011 32 16 89 3 3NFSM200-380-20 O 20 0 -0.013 38 20 104 3 Cutting edge of over 6mm Dc has margin. Cutting edge of over 6mm Dc has margin. 3NFSL (Long) (Unit : mm) Shouldering Description Обозначение Std. Outside Dia. Mill Dia. tolerance Length of cut Shank Dia. Overall length No. of Flutes Dc I Ds L Z 3NFSL030-190-06 O 3 -0.014 -0.028 19 6 63 3 3NFSL040-190-06 O 4 -0.020 -0.038 19 6 63 3 3NFSL050-200-06 O 5 -0.020 -0.038 20 6 63 3 3NFSL060-280-06 O 6 0 -0.008 28 6 76 3 3NFSL080-300-08 O 8 0 -0.009 30 8 76 3 3NFSL100-340-10 O 10 0 -0.009 34 10 89 3 3NFSL120-450-12 O 12 0 -0.011 45 12 100 3 3NFSL160-560-16 O 16 0 -0.011 56 16 125 3 3NFSL200-600-20 O 20 0 -0.013 60 20 125 3 NFSM type NFSL type rake angle A convex shape in the slot improves chip evacuation. Cutting edge of over 6mm Dc has margin. Sharpness oriented for aluminum machining. Good chip evacuation from the 45° helix angle. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L87 O: Check Availability
