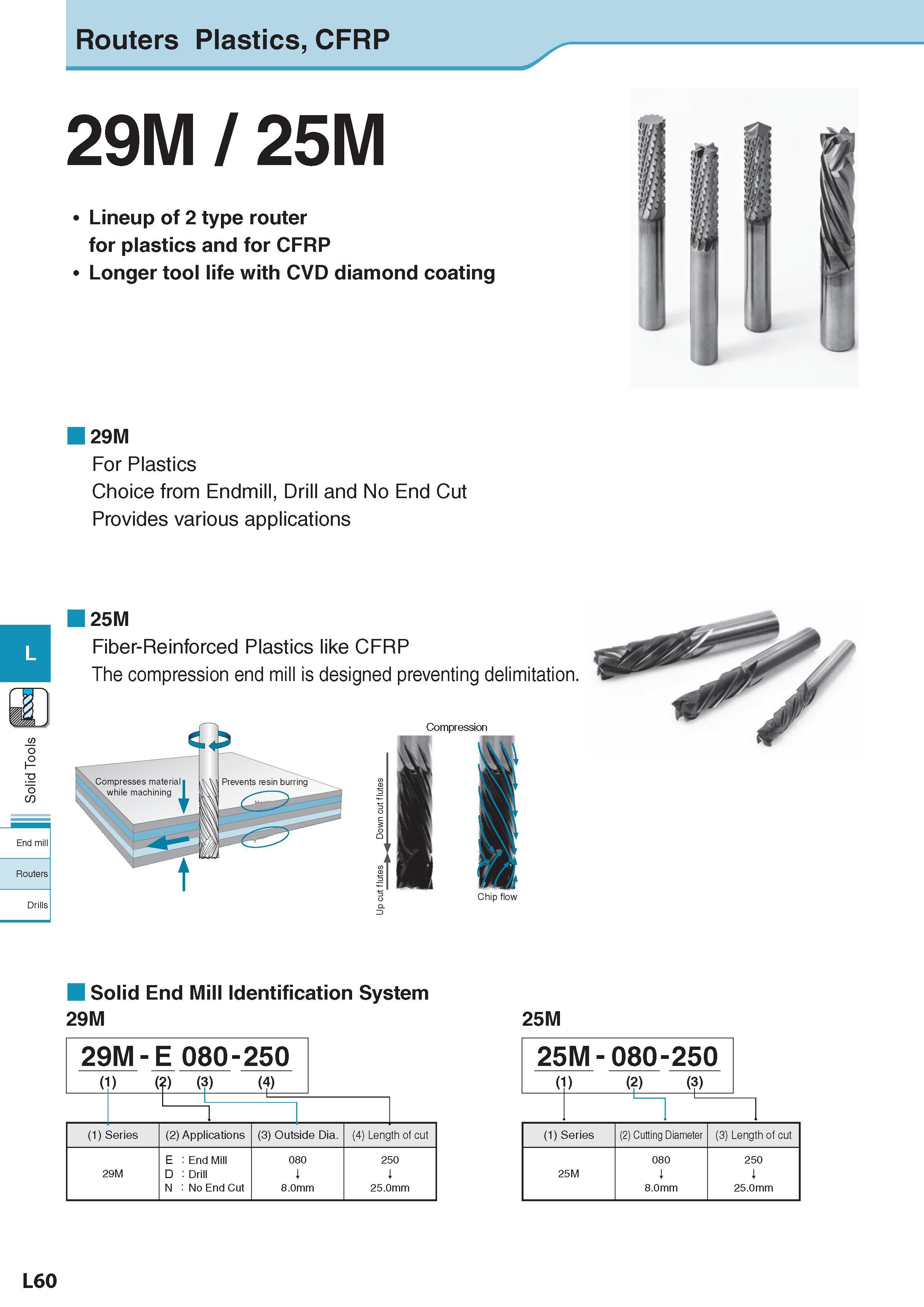

Routers Plastics, CFRP 29M / 25M Lineup of 2 type router for plastics and for CFRP Longer tool life with CVD diamond coating 29M For Plastics Choice from Endmill, Drill and No End Cut Provides various applications 25M Fiber-Re info reed Plastics like CFRP The compression end mill is designed preventing delimitation. Compression Chip flow Solid End Mill Identification System 29M 29M-E 080-250 (1) (2) (3) (2 (4) (1) Series (2) Applications (3) Outside Dia. (4) Length of cut E : End Mill 080 250 29M : Drill i i N : No End Cut 8.0mm 25.0mm 25M 25M-080-250 (1) (3) (1) Series (2) Cutting Diameter (3) Length of cut 080 250 25M i i 8.0mm 25.0mm End mill L60
