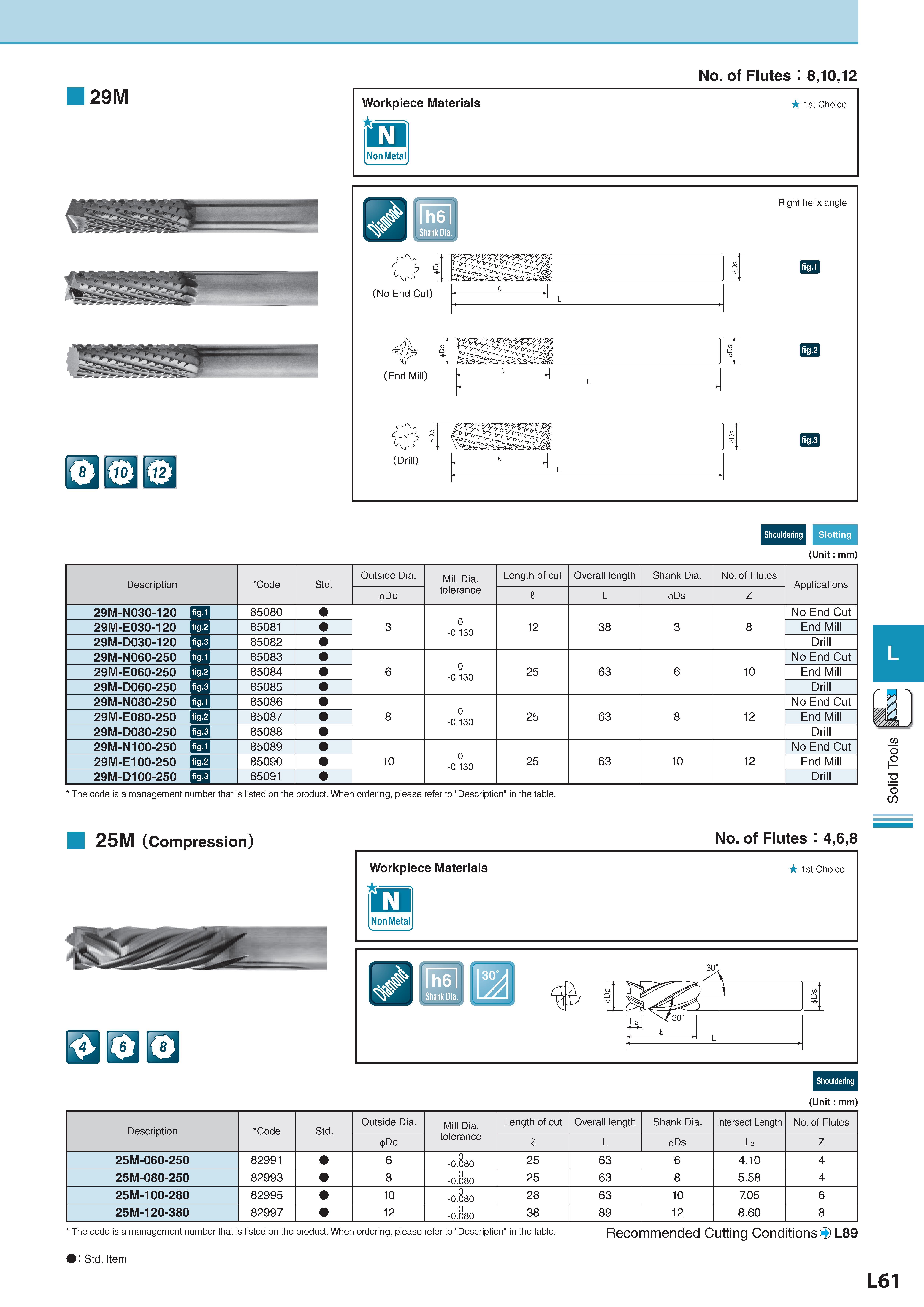

29M No. of Flutes : 8,10,12 Workpiece Materials Обрабатываемые материалы 1st Choice id NonMetal Right helix angle (Drill) Shouldering Slotting (Unit : mm) Description Обозначение Code Std. Outside Dia. Mill Dia. Length of cut Overall length Shank Dia. No. of Flutes Applications 0Dc tolerance I L 0Ds Z 29M-N030-120 fig.1 85080 0 -0.130 No End Cut 29M-E030-120 fig.2 85081 3 12 38 3 8 End Mill 29M-D030-120 fig.3 85082 Drill 29M-N060-250 fig.1 85083 0 -0.130 No End Cut 29M-E060-250 fig.2 85084 6 25 63 6 10 End Mill 29M-D060-250 fig.3 85085 Drill 29M-N080-250 fig.1 85086 0 -0.130 No End Cut 29M-E080-250 fig.2 85087 8 25 63 8 12 End Mill 29M-D080-250 fig.3 85088 Drill 29M-N100-250 fig.1 85089 0 -0.130 No End Cut 29M-E100-250 fig.2 85090 10 25 63 10 12 End Mill 29M-D100-250 fig.3 85091 Drill The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. 25M (Compression) No. of Flutes : 4,6,8 (Unit : mm) Description Обозначение Code Std. Outside Dia. Mill Dia. tolerance Length of cut Overall length Shank Dia. Intersect Length No. of Flutes 0Dc I L 0Ds L2 Z 25M-060-250 82991 6 -0.080 25 63 6 4.10 4 25M-080-250 82993 8 0 -0.080 25 63 8 5.58 4 25M-100-280 82995 10 0 -0.080 28 63 10 7.05 6 25M-120-380 82997 12 0 -0.080 38 89 12 8.60 8 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. : Std. Item Стандартная позиция Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L89 L61 L Solid Tools
