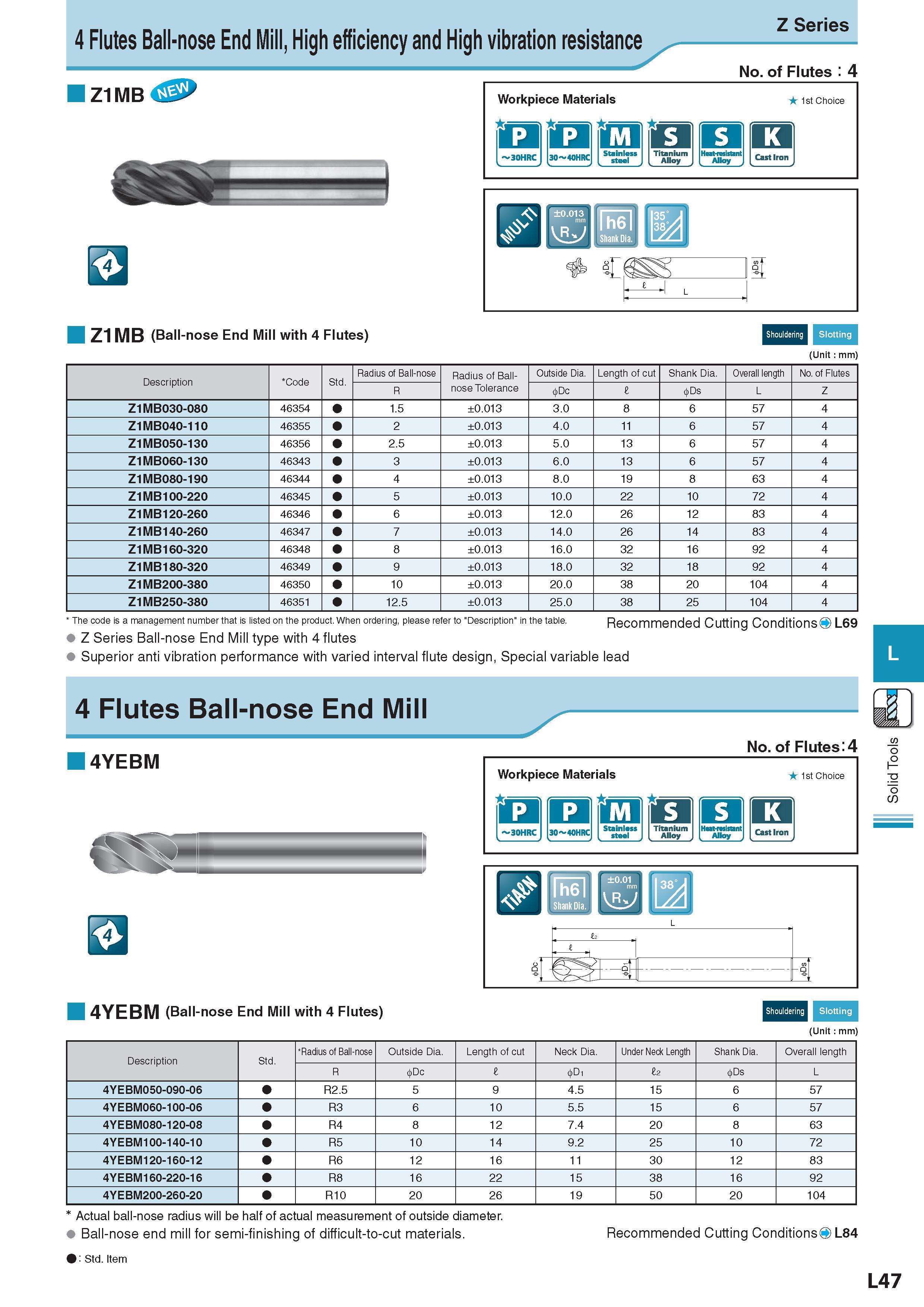

4 Flutes Ball-nose End Mill, High efficiency and High vibration resistance Z1MB Z Series El Z1MB (Ball-nose End Mill with 4 Flutes) No. of Flutes : 4 Workpiece Materials Обрабатываемые материалы 1st Choice 'aifaiioro Titanium Alloy Heat-resistant Alloy Ml V I Shank Dia. C L Shouldering Slotting (Unit : mm) Description Обозначение Code Std. Radius of Ball-nose Radius of Ball-nose Tolerance Outside Dia. Length of cut Shank Dia. Overall length No. of Flutes R Dc I Ds L Z Z1MB030-080 46354 1.5 ±0.013 3.0 8 6 57 4 Z1MB040-110 46355 2 ±0.013 4.0 11 6 57 4 Z1MB050-130 46356 2.5 ±0.013 5.0 13 6 57 4 Z1MB060-130 46343 3 ±0.013 6.0 13 6 57 4 Z1MB080-190 46344 4 ±0.013 8.0 19 8 63 4 Z1MB100-220 46345 5 ±0.013 10.0 22 10 72 4 Z1MB120-260 46346 6 ±0.013 12.0 26 12 83 4 Z1MB140-260 46347 7 ±0.013 14.0 26 14 83 4 Z1MB160-320 46348 8 ±0.013 16.0 32 16 92 4 Z1MB180-320 46349 9 ±0.013 18.0 32 18 92 4 Z1MB200-380 46350 10 ±0.013 20.0 38 20 104 4 Z1MB250-380 46351 12.5 ±0.013 25.0 38 25 104 4 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. Z Series Ball-nose End Mill type with 4 flutes Superior anti vibration performance with varied interval flute design, Special variable lead Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L69 4 Flutes Ball-nose End Mill 4YEBM 4YEBM (Ball-nose End Mill with 4 Flutes) No. of Flutes: 4 Workpiece Materials Обрабатываемые материалы 1st Choice QDIDB I medium- Stain lass Titanium ’w30HRC 30 40HRC steej Alloy Alloy A 12 i st- - 1 Shouldering Slotting (Unit : mm) L Description Обозначение Std. ‘Radius of Ball-nose Outside Dia. Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length R Dc I < >D1 12 Ds L 4YEBM050-090-06 R2.5 5 9 4.5 15 6 57 4YEBM060-100-06 R3 6 10 5.5 15 6 57 4YEBM080-120-08 R4 8 12 7.4 20 8 63 4YEBM100-140-10 R5 10 14 9.2 25 10 72 4YEBM120-160-12 R6 12 16 11 30 12 83 4YEBM160-220-16 R8 16 22 15 38 16 92 4YEBM200-260-20 R10 20 26 19 50 20 104 Actual ball-nose radius will be half of actual measurement of outside diameter. Ball-nose end mill for semi-finishing of difficult-to-cut materials. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L84 : Std. Item Стандартная позиция L47 Solid Tools
