689 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L46

Каталог KYOCERA 2017 Инструмент режущий Стр. L46 0689 Lab2u

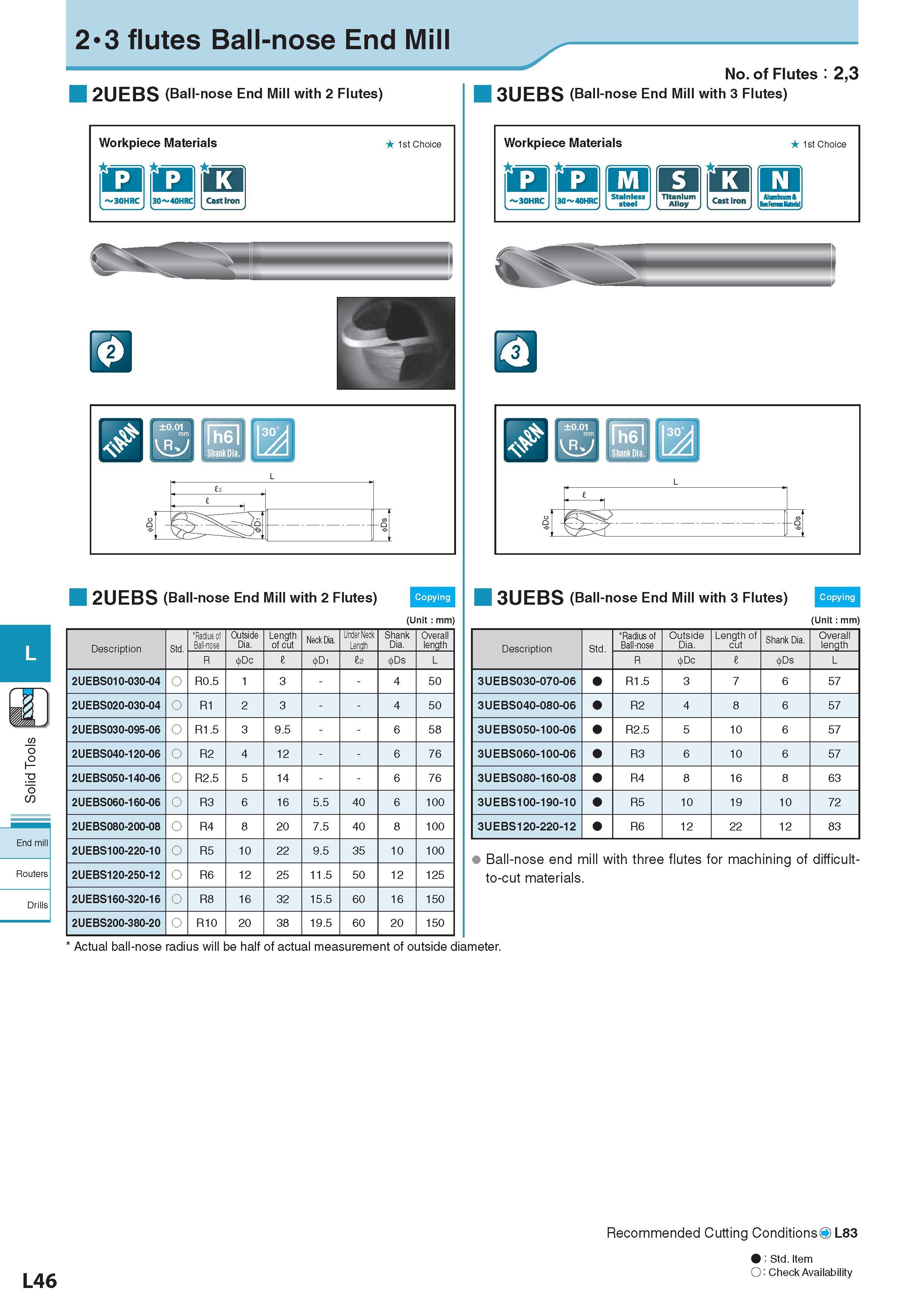

End mill Routers Drills L46 2 3 flutes Ball-nose End Mill 2UEBS (Ball-nose End Mill with 2 Flutes) Workpiece Materials Обрабатываемые материалы SQSraroi 1st Choice 24 12 1 1 L e -s 2UEBS (Ball-nose End Mill with 2 Flutes) (Unit : mm) Description Обозначение Std. Radius ol Ball-nose Outside Dia. Length of cut Neck Dia. Under Neck Length Shank Dia. Overall length R Dc I < >D1 12 Ds L 2UEBS010-030-04 O R0.5 1 3 4 50 2UEBS020-030-04 O R1 2 3 4 50 2UEBS030-095-06 O R1.5 3 9.5 6 58 2UEBS040-120-06 O R2 4 12 6 76 2UEBS050-140-06 O R2.5 5 14 6 76 2UEBS060-160-06 O R3 6 16 5.5 40 6 100 2UEBS080-200-08 O R4 8 20 7.5 40 8 100 2UEBS100-220-10 O R5 10 22 9.5 35 10 100 2UEBS120-250-12 O R6 12 25 11.5 50 12 125 2UEBS160-320-16 O R8 16 32 15.5 60 16 150 2UEBS200-380-20 O R10 20 38 19.5 60 20 150 No. of Flutes : 2,3 3UEBS (Ball-nose End Mill with 3 Flutes) Workpiece Materials Обрабатываемые материалы 1st Choice iiQ O Bui O 1 30HRC l30 40HRC Stainless steel Titanium Alloy 1 Cast Iron Alimhumft Hon Fans IMeriil 3UEBS (Ball-nose End Mill with 3 Flutes) (Unit : mm) Description Обозначение Std. Radius of Ball-nose Outside Dia. Length of cut Shank Dia. Overall length R Dc I Ds L 3UEBS030-070-06 R1.5 3 7 6 57 3UEBS040-080-06 R2 4 8 6 57 3UEBS050-100-06 R2.5 5 10 6 57 3UEBS060-100-06 R3 6 10 6 57 3UEBS080-160-08 R4 8 16 8 63 3UEBS100-190-10 R5 10 19 10 72 3UEBS120-220-12 R6 12 22 12 83 Ball -nose end mill with three flutes for machining of difficult-to-cut materials. L Actual ball-nose radius will be half of actual measurement of outside diameter. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L83 : Std. Item Стандартная позиция O: Check Availability
